hydraulic pump rebuild

Postby Dusty B » Fri Dec 14, 2018 9:00 am

Carefully disassembled my hydraulic pump, no 'PIN" between the brass collars, Stiener tube video refers to a rubber tip between collars! Question - how critical is it? Where do you get a replacement? What purpose does it serve? Is it included in the TM rebuild kit? (I ordered 2!) Nut was laying just inside the block - no lock washer - had not made it to the pan yet! W/use self locking tap when it goes back together! Pump actually worked fine (after adding fluid) as it was except for leaking fluid like crazy at the pump. Thanks Dusty B
Grandpa's '41 B
'56,,'57,'59,'71 Cub
'51 Super C
'55 Case SC
Fairbanks-Morse 3KW Generator
Dad's DB garden tractor
'48 DeSoto
'31 "A Coupe
'51 Ford PU
'55 Dodge PU
God looks out for those of us who don't know how to look out for ourselves!

User avatar
Dale Finch
10+ Years
10+ Years
Posts: 4873
Joined: Tue Apr 27, 2010 11:34 am
Zip Code: 27517
Tractors Owned: '51 Cub
'55 Cub with Woods 59 mower
'55 Cub "Bertha" with Woods 42 mower
'55 Cub "Ben" with Woods 42 mower
'56 Cub "Boris" with Mott Flail mower
Circle of Safety: Y
Location: NC, Chapel Hill

Re: hydraulic pump rebuild

Postby Dale Finch » Fri Dec 14, 2018 9:57 am

Try using a magnetic pickup into the oil pan...it's in there somewhere and costs a pretty penny to replace!
That, having been said, I did use a star washer when reassembling one of mine. The old one was retrieved from the pan, but had already been bent up twice, so put it in the spare parts drawer.

User avatar
indy61
10+ Years
10+ Years
Posts: 1045
Joined: Fri Jan 25, 2008 9:02 am
Zip Code: 00000
Circle of Safety: Y

Re: hydraulic pump rebuild

Postby indy61 » Fri Dec 14, 2018 11:50 am

There is a pin seal included with the kit however it is not used in all versions of the pump. It looks like there were 6 versions of the pump used through the years.


Bob McCarty
Team Cub
Team Cub
Posts: 10197
Joined: Tue May 25, 2004 8:02 pm
Zip Code: 80501
Tractors Owned: Cubs, MH Pony, Shaw, Allis G, 1934 Silver King, JD LA and LI, Gibson D, David Bradley Tri-Trac
Circle of Safety: Y
Location: CO, Longmont

Re: hydraulic pump rebuild

Postby Bob McCarty » Fri Dec 14, 2018 1:13 pm

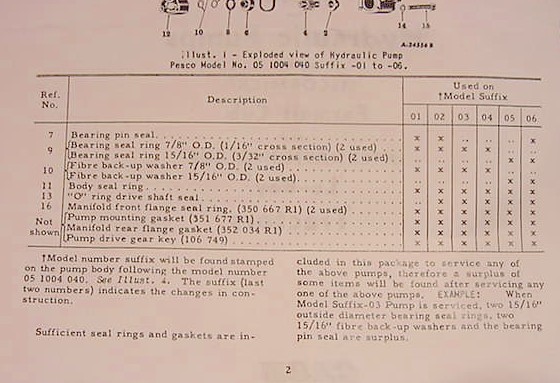

What manual is that chart out of? I've never seen it before.
"We don't need to think more,
we need to think differently."
-Albert Einstein

User avatar
indy61
10+ Years
10+ Years
Posts: 1045
Joined: Fri Jan 25, 2008 9:02 am
Zip Code: 00000
Circle of Safety: Y

Re: hydraulic pump rebuild

Postby indy61 » Fri Dec 14, 2018 1:22 pm

Bob McCarty wrote:What manual is that chart out of? I've never seen it before.

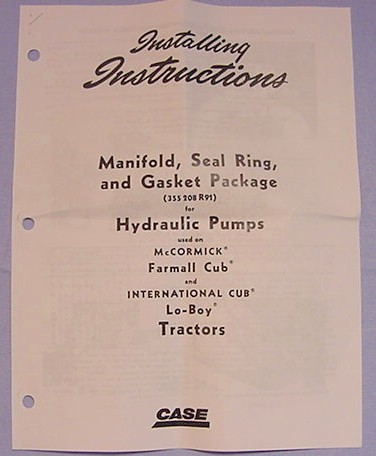

It's in the installation instructions included with kit.
