High idle

Postby BQUICK » Sat Jan 25, 2020 3:13 pm

Have high idle.
I reset points from .028 to .020. Idle still high. Throttle all the way closed.

Have not checked timing yet. Any thing else I should look for?

User avatar
Dale Finch
10+ Years
10+ Years
Posts: 4873
Joined: Tue Apr 27, 2010 11:34 am
Zip Code: 27517
Tractors Owned: '51 Cub
'55 Cub with Woods 59 mower
'55 Cub "Bertha" with Woods 42 mower
'55 Cub "Ben" with Woods 42 mower
'56 Cub "Boris" with Mott Flail mower
Circle of Safety: Y
Location: NC, Chapel Hill

Re: High idle

Postby Dale Finch » Sat Jan 25, 2020 3:19 pm

I'm certainly not a carb expert, but if you do a search, I think you will find there is an idle adjust screw on the top of the carb. There are free manuals that include the owners and service manuals available from the QUICK LINKS in the above left corner.
Check page 13:
http://farmallcub.com/rudi_cub/www.cleancomputes.com/Cub/Blue%20Ribbon%20Service%20Manuals/GSS-1132%20Fuel%20System/GSS-1132%20Fuel%20System.htm

User avatar
Don McCombs
Team Cub Mentor
Team Cub Mentor
Posts: 14746
Joined: Mon Feb 03, 2003 6:45 am
Zip Code: 21550
Tractors Owned: "1950 Something" Farmall Cub
1957 Farmall Cub w/FH
1977 International Cub w/FH
1978 International Cub
1948 Farmall Super A
Circle of Safety: Y
Location: MD, Deep Creek Lake

Re: High idle

Postby Don McCombs » Sat Jan 25, 2020 4:40 pm

Page 13 refers to the Zenith carburetor. Your 1964 Cub should have an IH carb. Check the procedure on Page 10 for adjusting the governor to carburetor control rod. Point gap has no relationship to idle speed.
Don McCombs
MD, Deep Creek Lake

Proud Member of Maryland Chapter 39
Circle of Safety

BQUICK
Posts: 37
Joined: Thu Jan 16, 2020 12:23 pm
Zip Code: 21613

Re: High idle

Postby BQUICK » Sat Jan 25, 2020 6:02 pm

I figured it affects timing so could affect idle rpm.
I notice governor spring looks weak and also throttle shaft bracket loose.

Ordered carb kit with new shaft and a new gov spring.

User avatar
Steve Butram
Cub Pro
Cub Pro
Posts: 2292
Joined: Mon Feb 17, 2003 7:53 am
Zip Code: 47906
eBay ID: steveb05
Tractors Owned: 1947 in well used condition
1948 restored
1948
1949 for sale
Nice original 1950 just out of the Demo Range
628 2 wheel Trailer
1950 Demo
Circle of Safety: Y
Location: IN West Lafayette

Re: High idle

Postby Steve Butram » Sun Jan 26, 2020 7:52 am

Back the idle screw out a half turn to see if the engine slows down. I'm guessing you need to adjust the the governor linkage. then set the timing.
Be prepared to be unprepared Seth Goden

BQUICK
Posts: 37
Joined: Thu Jan 16, 2020 12:23 pm
Zip Code: 21613

Re: High idle

Postby BQUICK » Sun Jan 26, 2020 7:55 am

Which idle screw?....one on linkage or mixture?

staninlowerAL
10+ Years
10+ Years
Posts: 3975
Joined: Fri Oct 29, 2010 11:34 pm
Zip Code: 36558
Tractors Owned: Cubs: (3)'49's, (1 is parts), (1)'57 IH Cub LoBoy w/FH, (2)154 Number Series Loboys, (1 is parts), '76 Longstripe w/FH, Mowers: C-22, Bush Hog 412, Pennington 59, Woods RM42CF, Woods 42, assorted FCub plows, planters, discs, etc. OTHERS: '49 AC B & Ind. Sickle mower, '61 AC D12 Ser 2, '52 8N, '56 Ferguson 35 Deluxe, '53 MM BG (offset), (2) '49 Avery V's, '51 JD M (regular), '56 JD 420C, with Blade and fire plow, '85 JD 850 (Yanmar) w/72" belly mower, '76? Yanmar 2TR15 1500, '78? FORD Dexta, '86 FORD LGT14D & 48" Mower, (4) Sears Surburban's, MTD's, Jeeps & other misc. "treasures"
Circle of Safety: Y
Location: AL (Southwest)

Re: High idle

Postby staninlowerAL » Sun Jan 26, 2020 9:12 am

The only adjustment on the IH carb adjusts the air flow mixture. The Idle screw adjustment is on the linkage above the carb.

User avatar
Dale Finch
10+ Years
10+ Years
Posts: 4873
Joined: Tue Apr 27, 2010 11:34 am
Zip Code: 27517
Tractors Owned: '51 Cub
'55 Cub with Woods 59 mower
'55 Cub "Bertha" with Woods 42 mower
'55 Cub "Ben" with Woods 42 mower
'56 Cub "Boris" with Mott Flail mower
Circle of Safety: Y
Location: NC, Chapel Hill

Re: High idle

Postby Dale Finch » Sun Jan 26, 2020 9:16 am

staninlowerAL wrote:The only adjustment on the IH carb adjusts the air flow mixture. The Idle screw adjustment is on the linkage above the carb.

That's the one I was thinking of...a simple mechanical limiting stop screw.

inairam
5+ Years
5+ Years
Posts: 1728
Joined: Wed Jul 08, 2015 10:24 am
Zip Code: 19342
Tractors Owned: 1948 6v - Dozer
1949 with kub klipper belly mower. mag 6v - Mom
1950 with plow, 54 blade, mott mag 6v - Roxanne
1953 54 blade, c22, wood 42 6v
1957 with c-2 mower & c-54 grader blade 6v - barn Queen
1965 lo-boy with c-3 mower 12 v - Loboy
1974 Horse II 12 v
1975 with homemade mower 12 v - Horse
1979 long strip 12 v stuck engine
130 with international 1000 loader 6 v
1969 140 with bush hog tow behind mower 6 v
Memberships: Rough and Tumble Engineers Historical Association;Chapter 8 IH Collectors; IH Collectors Worldwide
Circle of Safety: Y
Location: Glen Mills PA

Re: High idle

Postby inairam » Sun Jan 26, 2020 9:37 am

Before you rebuild the carb and replace the governor spring ( both things most cubs need) adjust the linkage between the governor and the carb per the manual. If the cub starts and runs the carb is probably ok.

adjust the linkage between the governor and the carb first and then do the fine adjustment on the carb for low idle second. You will have to do it again when you pull the carb to rebuild or replace the spring but it should be less.

Have you separated the cub recently? The linkage between the throttle and governor will fit both ways but there is a front and back end. If you put it in backwards it will fit but will mess up the RPM control with the throttle.
When you only have 9 horsepower you need to know the names of all of the ponies!

User avatar
Don McCombs
Team Cub Mentor
Team Cub Mentor
Posts: 14746
Joined: Mon Feb 03, 2003 6:45 am
Zip Code: 21550
Tractors Owned: "1950 Something" Farmall Cub
1957 Farmall Cub w/FH
1977 International Cub w/FH
1978 International Cub
1948 Farmall Super A
Circle of Safety: Y
Location: MD, Deep Creek Lake

Re: High idle

Postby Don McCombs » Sun Jan 26, 2020 9:48 am

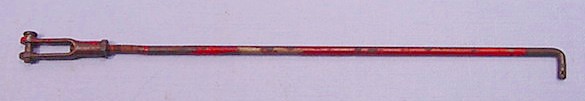

This is the control rod we are all talking about.

Don McCombs
MD, Deep Creek Lake

Proud Member of Maryland Chapter 39
Circle of Safety

BQUICK
Posts: 37
Joined: Thu Jan 16, 2020 12:23 pm
Zip Code: 21613

Re: High idle

Postby BQUICK » Sun Jan 26, 2020 12:41 pm

Hmmm....that could be it...clutch was recently put in.....

BQUICK
Posts: 37
Joined: Thu Jan 16, 2020 12:23 pm
Zip Code: 21613

Re: High idle

Postby BQUICK » Sun Jan 26, 2020 1:06 pm

Clevis is toward front of Cub....didn't remove it to do clutch.

User avatar
Glen
5+ Years
5+ Years
Posts: 4312
Joined: Mon Mar 19, 2012 7:33 pm
Zip Code: 00000
Tractors Owned: 1956 Farmall Cub with Fast Hitch, F-11 plow, Disc, Cultivator, Cub-22 mower
Circle of Safety: Y
Location: Wa.

Re: High idle

Postby Glen » Sun Jan 26, 2020 5:34 pm

Hi,
I sent you a PM, you get to it at the top of the page.

Below is a pic from TM Tractor of the idle speed adjustment screw on the IH carburetor, it is at the top area of the carb, on the engine side of the carb. It should have a spring on it. :)
Attachments
Cub carb.jpg
