Cub 54 A Leveling Blade

Postby Plywud » Sat Feb 27, 2021 4:36 am

Just found a 54A blade for my 48 Cub, this one does not have the spring supported connection between the frame and the touch control lift system. It will be mounted as a center mount implement, and used mostly for grading and moving dirt around. It looks like the spring configuration was added in later years, is this a worthwhile upgrade over what I have?

Thanks for your help

RJ

User avatar
Don McCombs
Team Cub Mentor
Team Cub Mentor
Posts: 16135
Joined: Mon Feb 03, 2003 6:45 am
Zip Code: 21550
Tractors Owned: "1950 Something" Farmall Cub
1957 Farmall Cub w/FH
1977 International Cub w/FH
1978 International Cub
1948 Farmall Super A
Circle of Safety: Y
Location: MD, Deep Creek Lake

Re: Cub 54 A Leveling Blade

Postby Don McCombs » Sat Feb 27, 2021 7:42 am

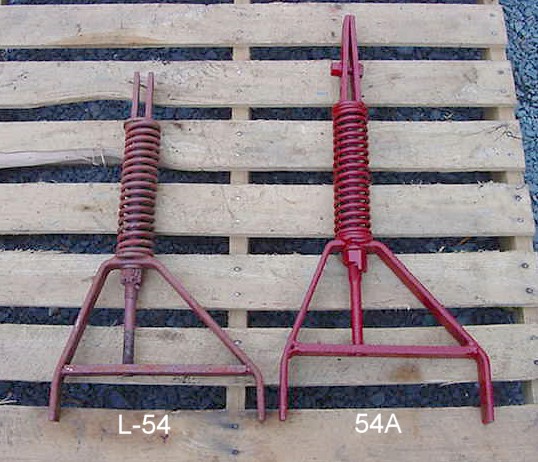

Are you talking about the assembly, on the right, in this photo from TM Tractor Parts?

Don McCombs
MD, Deep Creek Lake

Proud Member of Maryland Chapter 39
Circle of Safety

inairam
5+ Years
5+ Years
Posts: 2247
Joined: Wed Jul 08, 2015 10:24 am
Zip Code: 19342
Tractors Owned: 1948 6v - Dozer
1949 with kub klipper belly mower. mag 6v - Mom
1950 with plow, 54 blade, mott mag 6v - Roxanne
1953 54 blade, c22, wood 42 6v
1957 6v - barn Queen
1965 lo-boy with c-3 mower 12 v - Loboy
1974 Horse II 12 v c-2
1975 with woods 42-6 12 v - Horse
1979 long strip 12 v stuck engine
130 with international 1000 loader 6 v
1969 140 with bush hog tow behind mower 12 v
Terramite T-6 4WD Backhoe Perkins diesel
Memberships: Rough and Tumble Engineers Historical Association;Chapter 8 IH Collectors; IH Collectors Worldwide
Circle of Safety: Y
Location: Glen Mills PA

Re: Cub 54 A Leveling Blade

Postby inairam » Sat Feb 27, 2021 8:15 am

There is the 54 and the 54A. 54 http://www.tmtractor.com/tm-tractor/gim ... et_001.htm 54A http://www.tmtractor.com/tm-tractor/gim ... et_001.htm

You will need a few parts to make that work. It probably would be easier to buy a 54A. I have a 54 and have not used it. IT is more rigid which I guess will do be harder on the blade and the Cub but I do not have first-hand knowledge.
When you only have 9 horsepower you need to know the names of all of the ponies!

Plywud
Posts: 48
Joined: Sun Aug 23, 2020 6:45 pm
Zip Code: 98042

Re: Cub 54 A Leveling Blade

Postby Plywud » Sat Feb 27, 2021 9:47 am

I stand corrected, mine is a 54 grader, and my question is, is it worth it to invest in the upgrade parts to the model 54A? Specifically, the spring attachment for the touch control. I will be using it alot for ground work, and if the upgrade makes that work easier on me and the cub, I would be willing to make that change. I have an M and a box blade for the heavy lifting, but thought the cub and the 54 would be much better for the finish work,

RJ

User avatar
SONNY
10+ Years
10+ Years
Posts: 3871
Joined: Thu Nov 09, 2006 11:26 pm
Zip Code: 61722

Re: Cub 54 A Leveling Blade

Postby SONNY » Sat Feb 27, 2021 10:33 am

The cub blades that my neighbor and I have are hooked direct to the lift arms. We want them solid !---otherwise they will just ride up over the dirt. --- its not gonna hurt the cub any! He uses his to spread rock on his 5 acre bin site/machine shed parking area. Carry rock around in bubcat bucket and dump in piles----hit it with the cubs and perfectly level.

User avatar
Bill Hudson
Team Cub
Team Cub
Posts: 9221
Joined: Wed Jul 26, 2006 10:50 am
Zip Code: 44057
Tractors Owned: 57 F-Cub - Dad & Mom's Cub
77 F-Cub - Red Long Stripe
Circle of Safety: Y
Location: OH, Madison

Re: Cub 54 A Leveling Blade

Postby Bill Hudson » Sat Feb 27, 2021 10:37 am

I use a 54 blade for grading work with no issues. So, to answer your question, save your money and use what you have.

Bill
"The probability of life originating from accident is comparable to the probability of the unabridged dictionary resulting from an explosion in a printing shop." Edwin Conklin, biologist

Member of Ohio Chapter #6

Plywud
Posts: 48
Joined: Sun Aug 23, 2020 6:45 pm
Zip Code: 98042

Re: Cub 54 A Leveling Blade

Postby Plywud » Sat Feb 27, 2021 1:49 pm

Thank you Gentlemen

RJ

User avatar
Lt.Mike
10+ Years
10+ Years
Posts: 2432
Joined: Sun Feb 17, 2008 2:38 am
Zip Code: 07727
Tractors Owned: 1 -'58 International Cub Lo-Boy
2 - '46 International A's
2 - '52 Farmall Cubs
1 - '53 Farmall Super A
1 - ‘41 Ford 9N with a ‘49 8N Engine
1 - ‘48 (5641) Allis Chalmers G
Location: Farmingdale NJ

Re: Cub 54 A Leveling Blade

Postby Lt.Mike » Sat Feb 27, 2021 8:59 pm

If your just plowing snow you can get by with it hanging on a short length of chain. If fact hanging from a chain allows the blade to float better.
Quote by Gary Pickeral I like
"If it can cast a shadow, it can be restored"
