Throwout Bearing Failed/Transmission "Clatter"

Postby LMNO » Sun Oct 02, 2011 9:34 am

:help:

My throwout bearing completely disintegrated while plowing the garden, even though it was new 2 years ago when my '58 Cub got running again. Prior to that it had sat for 25+ years.

Since the rebuild, I had a vibration whenever the clutch was engaged. It went away when I let off the clutch pedal. If I was at minimum idle, pushing the clutch would stall the engine.

And I also have a clatter in the transmission area in Reverse and 1st gear. It is louder under a load, such as plowing or going up a hill. My mechanic checked the transmission and found a gear that had a tiny crack. We replaced it thinking that it might be enough to cause the noise, but the clatter persists. Also have a new clutch.

Any thoughts? I don't want to just put in a new throwout bearing if there are other issues that need to be addressed.

Thanks.

Michael Evans
Michael Evans
1958 Farmall Cub
LMNO

Posts: 7
Joined: Mon Apr 11, 2011 3:06 pm
Location: Hanover, NH
Zip Code: 03755

Re: Throwout Bearing Failed/Transmission "Clatter"

Postby ScottyD'sdad » Sun Oct 02, 2011 9:59 am

bearing was probably ruined by a mal adjusted clutch. Shouldn't chatter, when the pedal is depressed. Were the clutch fingers adjusted, when the bearing was replaced, previously? Clatter in the tranny could be a chipped gear, that was missed, or a worn reverse?first slider bushing or gear. Ed
50 ,52,53,56,59 F Cubs, 55,55,57,63,63 fast hitch, 64 lo-boys, 71 154, 184 lo-boy,61 cadet original. IH spreader,IH corn grinder, Oli. OC3 ,AC D10 ,IH 444 , Potato digger, wagner ldr 3 power units.
ScottyD'sdad
Cub Pro
Cub Pro

Posts: 4976
Joined: Thu Aug 31, 2006 7:00 pm
Location: Ma. Rehoboth
Zip Code: 02769
Circle of Safety Award
Circle of Safety: Y

Re: Throwout Bearing Failed/Transmission "Clatter"

Postby Rudi » Sun Oct 02, 2011 11:52 am

Michael:

As Ed said, sounds like the fingers were not adjusted properly. You might want to read this How To Adjust Clutch Fingers. Check out the areas Ed indicated for the other noises.
Confusion breeds Discussion which breeds Knowledge which breeds Confidence which breeds Friendship

User avatar
Rudi
Team Cub
Team Cub

Posts: 28425
Joined: Sun Feb 02, 2003 8:37 pm
Location: NB Dieppe, Canada
Zip Code: E1A7J3
eBay ID: ve9rhs
Skype Name: R.H. "Rudi" Saueracker, SSM
Tractors Owned: 1947 Cub "Granny"
1948 Cub "Ellie-Mae"
1951 Cub "Jethro"
Dad's Putt-Putt
IH 129 CC
Circle of Safety Award
Circle of Safety: Y
Twitter ID: Rudi Saueracker, SSM

Re: Throwout Bearing Failed/Transmission "Clatter"

Postby tst » Sun Oct 02, 2011 6:45 pm

If you are having trouble trying to get it adjusted next weekend is the NE Cubfest, probably about the closest one to you, lots of cubbers will be there and will help with your cub
Tim
tst
501 Club
501 Club

Posts: 1501
Joined: Tue Jan 12, 2010 2:08 pm
Zip Code: 12514
Circle of Safety Award
Circle of Safety: Y

Re: Throwout Bearing Failed/Transmission "Clatter"

Postby Bob McCarty » Sun Oct 02, 2011 8:09 pm

When the TOB was replaced two years ago, was it an OEM or aftermarket. If aftermarket, that could be part of the problem.

Bob
"We don't need to think more,
we need to think differently."
-Albert Einstein
Bob McCarty
Team Cub Mentor
Team Cub Mentor

Posts: 5418
Joined: Tue May 25, 2004 8:02 pm
Location: CO, Longmont
Zip Code: 80501
Circle of Safety Award
Circle of Safety: Y

Re: Throwout Bearing Failed/Transmission "Clatter"

Postby Rudi » Sun Oct 02, 2011 9:11 pm

I keep forgetting a couple of things when it comes to the TOB and one of them is the after-market TOB's.

Bob McCarty wrote:When the TOB was replaced two years ago, was it an OEM or aftermarket. If aftermarket, that could be part of the problem.

Bob


As Bob said that can play a big part. Another thing I keep forgetting is that you need to load the TOB with lubricant before installing it. The cheapest grease you can find, the kind that breaks down quickly and will soak/load up the graphite. A dry TOB will fail rather quickly no matter if it is an OEM or even an after-market one. The after-market ones are really not worth the price or the time wasted.
Confusion breeds Discussion which breeds Knowledge which breeds Confidence which breeds Friendship

User avatar
Rudi
Team Cub
Team Cub

Posts: 28425
Joined: Sun Feb 02, 2003 8:37 pm
Location: NB Dieppe, Canada
Zip Code: E1A7J3
eBay ID: ve9rhs
Skype Name: R.H. "Rudi" Saueracker, SSM
Tractors Owned: 1947 Cub "Granny"
1948 Cub "Ellie-Mae"
1951 Cub "Jethro"
Dad's Putt-Putt
IH 129 CC
Circle of Safety Award
Circle of Safety: Y
Twitter ID: Rudi Saueracker, SSM

Re: Throwout Bearing Failed/Transmission "Clatter"

Postby LMNO » Tue Oct 04, 2011 4:38 pm

Thanks everyone for the information. Adjusting the clutch fingers is not looking really clear to me, but perhaps because I have no idea what it all looks like inside. I don't know if my TOB was OEM or aftermarket, but will try to find out.

NE Cubfest looks interesting - I might try to attend. It's only 3 hours away. It looks as though someone else is bringing a TOB project. I'll try to find out more specific to that project on the Cubfest NE 2011 thread.
Michael Evans
1958 Farmall Cub
LMNO

Posts: 7
Joined: Mon Apr 11, 2011 3:06 pm
Location: Hanover, NH
Zip Code: 03755

Re: Throwout Bearing Failed/Transmission "Clatter"

Postby Bill Hudson » Tue Oct 04, 2011 5:14 pm

LMNO wrote:... NE Cubfest looks interesting - I might try to attend. It's only 3 hours away. ...


Come on over. It is well worth a 3 hour drive. I drive over 8 to get there. Time well spent.

Bill
"The probability of life originating from accident is comparable to the probability of the unabridged dictionary resulting from an explosion in a printing shop." Edwin Conklin, biologist
Bill Hudson
Team Cub
Team Cub

Posts: 6241
Joined: Wed Jul 26, 2006 10:50 am
Location: OH, Madison
Zip Code: 44057
Tractors Owned: :
57 F-Cub
64 Lo-Boy
68 Lo-Boy
52 F-Cub
Circle of Safety Award
Circle of Safety: Y

Re: Throwout Bearing Failed/Transmission "Clatter"

Postby Winfield Dave » Tue Oct 04, 2011 5:20 pm

Bill Hudson wrote:
LMNO wrote:... NE Cubfest looks interesting - I might try to attend. It's only 3 hours away. ...
Come on over. It is well worth a 3 hour drive. I drive over 8 to get there. Time well spent.Bill
Bill...Will you be bringing that new trailer for me/us to drool all over ? :D
Dave
"More gold has been mined from the thoughts of men than has been taken from the earth." -- Napoleon Hill
User avatar
Winfield Dave
501 Club
501 Club

Posts: 2596
Joined: Thu Apr 22, 2010 2:31 pm
Location: PA, Middleport (Schuylkill County)
Zip Code: 17953
Tractors Owned: ......Almost enough
Circle of Safety Award
Circle of Safety: Y

Re: Throwout Bearing Failed/Transmission "Clatter"

Postby ScottyD'sdad » Tue Oct 04, 2011 5:25 pm

Winfield Dave wrote:
Bill Hudson wrote:
LMNO wrote:... NE Cubfest looks interesting - I might try to attend. It's only 3 hours away. ...
Come on over. It is well worth a 3 hour drive. I drive over 8 to get there. Time well spent.Bill
Bill...Will you be bringing that new trailer for me/us to drool all over ? :D


Dave, NO drooling, on trailers! Slippery trailer decks are dangerous! Ed
50 ,52,53,56,59 F Cubs, 55,55,57,63,63 fast hitch, 64 lo-boys, 71 154, 184 lo-boy,61 cadet original. IH spreader,IH corn grinder, Oli. OC3 ,AC D10 ,IH 444 , Potato digger, wagner ldr 3 power units.
ScottyD'sdad
Cub Pro
Cub Pro

Posts: 4976
Joined: Thu Aug 31, 2006 7:00 pm
Location: Ma. Rehoboth
Zip Code: 02769
Circle of Safety Award
Circle of Safety: Y

Re: Throwout Bearing Failed/Transmission "Clatter"

Postby tulalipjames » Wed Oct 05, 2011 4:31 pm

Before you invest in new TOB, check this out:

viewtopic.php?f=1&t=61590&hilit=chevrolet&start=45#p507630

Much cheaper than new graphite TO bearing. I've been using the chevrolet bearing for several months, doing grading work on campsite pads 2-3 times a week. Very intensive clutch work. So far no problems.
tulalipjames
Cub Star
Cub Star

Posts: 175
Joined: Tue Sep 07, 2010 9:09 pm
Location: Marysville, WA
Zip Code: 98271
Tractors Owned: 1947 cub
1947 Gibson E

Re: Throwout Bearing Failed/Transmission "Clatter"

Postby Bob McCarty » Wed Oct 05, 2011 5:06 pm

Tulalipjames, Do you remember what the cost was to machine the graphite bearing to allow insertion of the Chevy TOB?

Thanks, Bob
"We don't need to think more,
we need to think differently."
-Albert Einstein
Bob McCarty
Team Cub Mentor
Team Cub Mentor

Posts: 5418
Joined: Tue May 25, 2004 8:02 pm
Location: CO, Longmont
Zip Code: 80501
Circle of Safety Award
Circle of Safety: Y

Re: Throwout Bearing Failed/Transmission "Clatter"

Postby LMNO » Wed Oct 05, 2011 6:34 pm

"Wow!" is all I can say on the graphite versus roller-bearing TOB controversy. Way over my head - which now hurts from reading that post. But it's nice to see all the passion from different points-of-view handled in a relatively respectful way.

I'm inclined to stick with OEM graphite, since, as far as I know, the original graphite TOB lasted around 30 years. Replacement lasted less than one year, but I cannot say the operator kept his foot off the clutch or that it wasn't the result of mal-adjusted fingers, etc. $45+ for something that lasts 25-40 years seems okay with me.

Can I expect that a Case/I-H dealer will carry a replacement OEM graphite bearing? I'm thinking I'll pick one up and perhaps bring it and my Cub to Cubfest NE and beg for help.
Michael Evans
1958 Farmall Cub
LMNO

Posts: 7
Joined: Mon Apr 11, 2011 3:06 pm
Location: Hanover, NH
Zip Code: 03755

Re: Throwout Bearing Failed/Transmission "Clatter"

Postby Rudi » Wed Oct 05, 2011 6:44 pm

Michael:

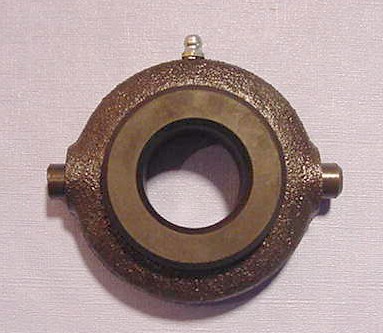

I would expect that a dealer should have an OEM part, but with dealers you never know. My CaseIH dealer used to have OEM carb kits but now all they stock are aftermarket Specter kits so I never take anything for granted. However, TM Tractor does have the OEM replacement TOB original clutch release bearing and retainer, 350921R11


Unfortunately they are a bit more expensive than $45.00 +/- .... The cheaper ones are usually aftermarket.

Messick's shows the same price - 350921R11 Retainer Qty in stock: 2 Days to order: 3-5 business days
Confusion breeds Discussion which breeds Knowledge which breeds Confidence which breeds Friendship

User avatar
Rudi
Team Cub
Team Cub

Posts: 28425
Joined: Sun Feb 02, 2003 8:37 pm
Location: NB Dieppe, Canada
Zip Code: E1A7J3
eBay ID: ve9rhs
Skype Name: R.H. "Rudi" Saueracker, SSM
Tractors Owned: 1947 Cub "Granny"
1948 Cub "Ellie-Mae"
1951 Cub "Jethro"
Dad's Putt-Putt
IH 129 CC
Circle of Safety Award
Circle of Safety: Y
Twitter ID: Rudi Saueracker, SSM

Re: Throwout Bearing Failed/Transmission "Clatter"

Postby Don McCombs » Wed Oct 05, 2011 6:59 pm

Whichever brand you choose, make sure that it is fully saturated with grease BEFORE you install it.
Don McCombs
MD, Deep Creek Lake

"1950 Something" Farmall Cub
1977 International Cub w/FH
1978 International Cub
1948 Farmall Super A
1951 Farmall Super C w/FH
User avatar
Don McCombs
Team Cub Mentor
Team Cub Mentor

Posts: 10366
Joined: Mon Feb 03, 2003 6:45 am
Location: MD, Deep Creek Lake
Zip Code: 21550
Tractors Owned: "1950 Something" Farmall Cub
1977 International Cub w/FH
1978 International Cub
1948 Farmall Super A
1951 Farmall Super C w/FH
Circle of Safety Award
Circle of Safety: Y
