Split Fan Pulley!

Postby Cub Junk » Sun Aug 04, 2013 1:04 pm

We recently had to buy a new pulley to connect to our belly mower,
100_2944 - Version 2.JPG
put it on
, kept throwing the belt, hmm, then starter went, had that repaired, now, the guys decided to tighten up the alternator a little bit, to keep the battery charged. So, the rear part of the fan pulley split!
What next?? After an hour or so of sweat, we managed to take off the air cleaner, the top radiator hose, pulled off the fan & pulley assembly. Took it to the neighbor for tack welds. (Which it had before, is that what it should have? Three tack welds.) Next trip, we'll try to put it all back together, including resetting the mower pulleys, loosening the alternator just slightly, filling the radiator back up, wonder what will give up next?
You do not have the required permissions to view the files attached to this post.

User avatar
Barnyard
Team Cub
Team Cub
501 Club
501 Club
Posts: 19942
Joined: Tue Aug 07, 2007 3:39 pm
Zip Code: 45030
Tractors Owned: At This Time
40 Farmall Cubs (Round Hood)
2 Farmall Cub (Square Hood)
2 IH Cubs (Square Hood)
5 Lo-Boys (Round Hood)
2 Lo-Boys (Square Hood)
2 Farmall 404's
1 Farmall H
1 Ferguson 20
1 Cub Cadet 125
1 Kubota B-7100
Circle of Safety: Y
Location: OH, New Haven (Hamilton County)

Re: Split Fan Pulley!

Postby Barnyard » Sun Aug 04, 2013 2:18 pm

Make sure when you put the fan pulley on that you do not turn the nut on the rear of the shaft. You should always turn the fan shaft or you might break the front engine cover.
It is common sense to take a method and try it. If it fails, admit it frankly and try another. But above all, try something.
- Franklin D. Roosevelt -

Circle of Safety

User avatar
Bus Driver
Team Cub Mentor
Team Cub Mentor
501 Club
501 Club
Posts: 2900
Joined: Sat Feb 11, 2006 5:26 pm
Location: NC

Re: Split Fan Pulley!

Postby Bus Driver » Sun Aug 04, 2013 4:44 pm

As you probably already discovered, it uses just one wrench, 13/16 open end, thin head, applied just in front of the uprights. The big nut on the back is captured by the uprights and cannot turn-- except when accompanied by destruction.
Luck favors those who are prepared

User avatar
Glen
501 Club
501 Club
Posts: 924
Joined: Mon Mar 19, 2012 7:33 pm
Zip Code: 00000
Tractors Owned: 1956 Farmall Cub with Fast Hitch, F-11 plow, Disc, Cultivator, Cub-22 mower
Circle of Safety: Y
Location: Wa.

Re: Split Fan Pulley!

Postby Glen » Sun Aug 04, 2013 4:56 pm

Hi,
Looks like you've done a lot of work to your Cub. I just wondered, is the end of the exhaust like it looks in the picture, pointed right at the pulley and belt ? All the heat from that doesn't help the pulley and belt. Would be good to change it somehow, maybe put on a piece of flex pipe, and run it out the back a little. :)

User avatar
Rick Spivey
Cub Pro
Cub Pro
501 Club
501 Club
Posts: 1934
Joined: Sun Jul 01, 2007 10:07 pm
Zip Code: 29681
Circle of Safety: Y
Location: SC, Simpsonville 29681

Re: Split Fan Pulley!

Postby Rick Spivey » Sun Aug 04, 2013 9:11 pm

Just in case, those two pulleys at the mule drive, on the mower, should be at approximately the same height. Try to make the belt level as it leaves the mower and goes to the mule drive, and make both sides level. If still throwing belt, check that belt from mule drive to PTO is square (at 90 degrees); if not, move PTO pulley in or out to square it. Lastly, if belt has been twisted or kinked enough times, you won't keep it on anyway; get a new belt, and then do the alignments I described above.
Rick Spivey
'52 Cub ("Great Personality") 148xxx
'48 Cub with FH ("Gunny Cub") 38xxx
'57 Lambretta (a slow work in progress)
'74 Triumph TR6 (Mama's toy)

Bob McCarty
Team Cub Mentor
Team Cub Mentor
501 Club
501 Club
Posts: 7587
Joined: Tue May 25, 2004 8:02 pm
Zip Code: 80501
Tractors Owned: Cubs, MH Pony, Shaw, Allis G, 1934 Silver King, JD LA and LI, Gibson D, David Bradley Tri-Trac
Circle of Safety: Y
Location: CO, Longmont

Re: Split Fan Pulley!

Postby Bob McCarty » Sun Aug 04, 2013 9:40 pm

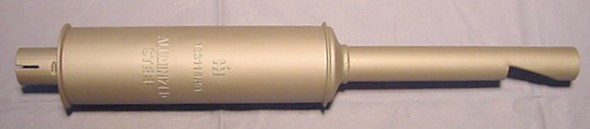

Glen, the underslung mufflers have a "whistle" crimp to them that directs the exhaust downward. Photo from TM Tractor. Image
