Tips for putting on chains

Postby offrink » Thu Nov 20, 2014 1:06 pm

Any good tips for putting them on? I think last year I jacked up the back end but don't know if it's safe with loaded tires and double wheel weights.

Eugene
Team Cub Mentor
Team Cub Mentor
Posts: 16257
Joined: Fri Jul 02, 2004 9:52 pm
Zip Code: 65051
Circle of Safety: Y
Location: Mo. Linn

Re: Tips for putting on chains

Postby Eugene » Thu Nov 20, 2014 1:16 pm

Lay and stretch out the chains on the drive way. Drive tractor on to the chains, about 1/3rd the length of the chains. Now throw the longest portion of the chains over the tire. Fasten chains.

You may need to move the tractor forward or backward a bit as you adjust and tighten the chains.
I have an excuse. CRS.

User avatar
Bill Hudson
Team Cub
Team Cub
Posts: 7902
Joined: Wed Jul 26, 2006 10:50 am
Zip Code: 44057
Tractors Owned: 57 F-Cub - Dad & Mom's Cub
52 F-Cub
49 F-Cub
Circle of Safety: Y
Location: OH, Madison

Re: Tips for putting on chains

Postby Bill Hudson » Thu Nov 20, 2014 2:54 pm

I have jacked up each rear wheel (loaded with two wheel weights mounted) to install chains with no problems. No need to have any more than a couple inches clearance to clear the chains. The advantage is that you can turn the wheel and take a lot of slack out of the chain.

Bill
"The probability of life originating from accident is comparable to the probability of the unabridged dictionary resulting from an explosion in a printing shop." Edwin Conklin, biologist

User avatar
John *.?-!.* cub owner
Team Cub Guide
Team Cub Guide
Posts: 22234
Joined: Sun Feb 02, 2003 2:09 pm
Zip Code: 63664
Tractors Owned: 47, 48, 49 cub plus Wagner loader & other attachments. 41 Farmall H.
Location: Mo, Potosi

Re: Tips for putting on chains

Postby John *.?-!.* cub owner » Thu Nov 20, 2014 3:18 pm

I do it the same as Bill, just stick a floor jack under the corner of the drawbar on each side as you work on it and raise the chain up close to the top of the wheel. As you tunr the wheel keep working the slack out of it, Usually pretty easy to get on.
If you are not part of the solution,
you are part of the problem!!!

User avatar
ricky racer
10+ Years
10+ Years
Posts: 4036
Joined: Wed Sep 12, 2007 8:40 pm
Zip Code: 49120
Circle of Safety: Y
Location: Niles / Buchanan, Michigan

Re: Tips for putting on chains

Postby ricky racer » Thu Nov 20, 2014 3:21 pm

Bill Hudson wrote:I have jacked up each rear wheel (loaded with two wheel weights mounted) to install chains with no problems. No need to have any more than a couple inches clearance to clear the chains. The advantage is that you can turn the wheel and take a lot of slack out of the chain.

Bill

John *.?-!.* cub owner wrote:I do it the same as Bill, just stick a floor jack under the corner of the drawbar on each side as you work on it and raise the chain up close to the top of the wheel. As you tunr the wheel keep working the slack out of it, Usually pretty easy to get on.


:Dito:
1929 Farmall Regular
1935 John Deere B
1937 John Deere A
1941 John Deere H
1952 John Deere B
1953 Farmall Cub

User avatar
Stanton
Team Cub Mentor
Team Cub Mentor
Posts: 4274
Joined: Mon Jun 22, 2009 6:56 am
Zip Code: 64070
Tractors Owned: 1942 Farmall AV, serial #87025
1945 Farmall H, serial #213,651
1947 Farmall Circle Cub, serial #2116
1948 Farmall Cub, serial #46066
Circle of Safety: Y
Location: Lone Jack, MO

Re: Tips for putting on chains

Postby Stanton » Thu Nov 20, 2014 3:22 pm

Similar to Eugene's method, I bungee one end of the chain onto the tire, then drive forward 'til that end rotates around to make the connection. Use 6 or so bungees to secure chains from outside edge thru wheel to inside edge. Stays secure all winter.
Stanton
Image Circle of Safety

offrink
Cub Star!!
Cub Star!!
Posts: 336
Joined: Thu Jan 02, 2014 4:23 pm
Zip Code: 49316
Tractors Owned: 1954 farmall fcub, 1954 farmall super m
Location: Caledonia, MI

Re: Tips for putting on chains

Postby offrink » Thu Nov 20, 2014 4:45 pm

So the people that use the jack do you put it under the drawbar? I thought it would overload the drawbar due to 300 lbs of wheel weight plus the loaded wheel and tractor.

User avatar
Barnyard
Team Cub
Team Cub
Posts: 20638
Joined: Tue Aug 07, 2007 3:39 pm
Zip Code: 45030
Tractors Owned: At This Time
40 Farmall Cubs (Round Hood)
2 Farmall Cub (Square Hood)
2 IH Cubs (Square Hood)
5 Lo-Boys (Round Hood)
2 Lo-Boys (Square Hood)
2 Farmall 404's
1 Farmall H
1 Ferguson 20
1 Cub Cadet 125
1 Kubota B-7100
Circle of Safety: Y
Location: OH, New Haven (Hamilton County)

Re: Tips for putting on chains

Postby Barnyard » Thu Nov 20, 2014 5:38 pm

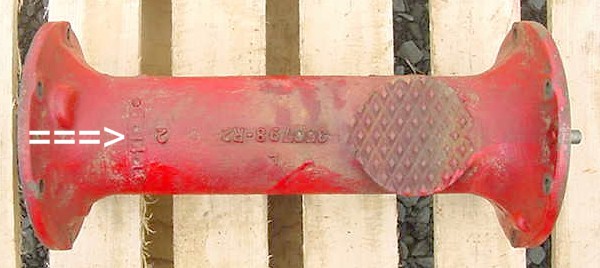

Most people who use the drawbar do so close to where it bolts to the final drive and lift just one side. There is also a flat spot under each axle housing (as seen on the right in the pic below) where you can set a bottle jack. However you do it, make sure you chock the front wheels to keep it from rolling away.

Photo from TM Tractor Parts
It is common sense to take a method and try it. If it fails, admit it frankly and try another. But above all, try something.
- Franklin D. Roosevelt -

Circle of Safety

User avatar
Bus Driver
Team Cub Mentor
Team Cub Mentor
Posts: 2917
Joined: Sat Feb 11, 2006 5:26 pm
Location: NC

Re: Tips for putting on chains

Postby Bus Driver » Thu Nov 20, 2014 6:07 pm

If the tires do not have liquid ballast, lowering the air pressure with the weight off the tires when fastening the chains and then reinflating will help the chains be tighter.
Luck favors those who are prepared

User avatar
ricky racer
10+ Years
10+ Years
Posts: 4036
Joined: Wed Sep 12, 2007 8:40 pm
Zip Code: 49120
Circle of Safety: Y
Location: Niles / Buchanan, Michigan

Re: Tips for putting on chains

Postby ricky racer » Thu Nov 20, 2014 6:12 pm

offrink wrote:So the people that use the jack do you put it under the drawbar? I thought it would overload the drawbar due to 300 lbs of wheel weight plus the loaded wheel and tractor.


I'm sure that most of us here jack up one side of the tractor at a time. I load my Cub up with double weights and it's never been a problem.
1929 Farmall Regular
1935 John Deere B
1937 John Deere A
1941 John Deere H
1952 John Deere B
1953 Farmall Cub

offrink
Cub Star!!
Cub Star!!
Posts: 336
Joined: Thu Jan 02, 2014 4:23 pm
Zip Code: 49316
Tractors Owned: 1954 farmall fcub, 1954 farmall super m
Location: Caledonia, MI

Re: Tips for putting on chains

Postby offrink » Thu Nov 20, 2014 6:49 pm

Ok thanks. Just would hate to break the casting or damage something just by doing something to quick and not check.

User avatar
WaMoo
5+ Years
5+ Years
Posts: 214
Joined: Mon Jun 06, 2011 6:46 pm
Zip Code: 99101
Tractors Owned: 1954 Farmall Cub
2013 NH Workmaster 40
Circle of Safety: Y
Location: Bluecreek, WA

Re: Tips for putting on chains

Postby WaMoo » Thu Nov 20, 2014 9:28 pm

I've always "hung iron" by laying the chains centered over the top of the tire, and connecting them at bottom. No need to jack it up, no need to drive onto them.
WaMoo
Bluecreek, WA
"I had rather be on my farm than be emperor of the world."
~George Washington

leerenovations
5+ Years
5+ Years
Posts: 382
Joined: Sat Sep 03, 2011 4:12 am
Zip Code: 74857
Tractors Owned: 1948 McCormick Farmall Cub (Farmalice), 1949 Ford 8N (Red), Unidentified horse drawn road grader with 8 ft moldboard.
Circle of Safety: Y
Location: Newalla, Oklahoma

Re: Tips for putting on chains

Postby leerenovations » Fri Nov 21, 2014 1:24 am

What Ive done is use my special boards. I used some large 4 x 20 flat timbers that I used a router to cuts grooves out of. I can lay the chains in the grooves then drive the tractor on top of them.
Tractors are like watermelons: the RED is good and you throw away the GREEN.

gusbratz
5+ Years
5+ Years
Posts: 167
Joined: Sun Nov 25, 2012 12:03 pm
Zip Code: 16345

Re: Tips for putting on chains

Postby gusbratz » Fri Nov 21, 2014 2:30 am

I put heavy truck chains on and off all the time. it super easy if you just grab the chain in the middle, throw it up over the tire so the back ends of the chain are just touching the ground a little. kick the front of the chain to bunch the front up under the tire then pull the tractor forward over the chains. now the bunched up pile is in the back behind the tire. hook up the s hook on the inside of the tire first then hook up the clasp on the outside. if you did it right the clips will be around 4 or 5 o'clock so you don't have to pick up a heavy chain and hold it with 1 hand while you do the clips. add bungees if you want it tight. if you leave your chains loose they will clean out better in muddy conditions. it takes me less than 5 min to put chains on any of my tractors and I don't monkey around with jacks or anything.

outdoors4evr
5+ Years
5+ Years
Posts: 1203
Joined: Tue Jul 22, 2008 12:44 pm
Zip Code: 48423
Tractors Owned: 184
Location: Davison, MI

Re: Tips for putting on chains

Postby outdoors4evr » Fri Nov 21, 2014 6:52 am

Start by laying your chains out flat. Make sure there aren't any twists (looks like a kink) in the chains. Any twists can use up valuable chain length that makes it really difficult to get the chains on.
By "twists" I mean a place where the length of the chain has been looped through one of the ladder rungs. This is very easy to happen near the ends of the chains. "Untwist" the chain by feeding the length back through the ladder rungs in the opposite direction.

I drive over the 3/4 of the chains and attach them on the back. Do the inside first then the outside.
