torque tube

Postby suzieq1 » Sun May 17, 2015 11:13 pm

What would be leaking from the inspection hole on the torque tube? Just behind where the motor and tranny meet. It smells like get at oil but I didn't think the tube had anything in it...

staninlowerAL
5+ Years
5+ Years
Posts: 3280
Joined: Fri Oct 29, 2010 11:34 pm
Zip Code: 36558
Tractors Owned: Cubs: (3)'49's, (1)'52, (1)'57 IH Cub LoBoy w/FH, (1)'72 154 Number Series Loboy, '76 Longstripe w/FH, Mowers: C-22, Bush Hog 412, Pennington 59, Woods RM42CF, Woods 42, assorted FCub plows, planters, discs, etc. OTHERS: '49 AC B & Ind. Sickle mower, '61 AC D12 Ser 2, '52 8N, '56 Ferguson 35 Deluxe, '53 MM BG (offset), (2) '49 Avery V's, '51 JD M (regular), '56 JD 420C, with Blade and fire plow, '85 JD 850 (Yanmar) w/72" belly mower, '76 Yanmar 1500, Sears Surburban's, MTD's, Jeeps & other misc. "treasures"
Circle of Safety: Y
Location: AL (Southwest)

Re: torque tube

Postby staninlowerAL » Mon May 18, 2015 2:27 am

Forward end of the Torque Tube next to engine? Likely leaking rear main seal. Do a search on this and THE VINE classified adds, there has been several recient threads on this subject. Repair requires splitting the tractor and removing the clutch/pressure plate assembly.

User avatar
bob in CT
Team Cub Mentor
Team Cub Mentor
Posts: 6000
Joined: Thu Jun 07, 2007 9:34 am
Zip Code: 06040
Tractors Owned: 77 Cub (red); 74 Cub; 52 Cub; 50 Cub ( post-demo)
Circle of Safety: Y
Location: CT, Manchester

Re: torque tube

Postby bob in CT » Mon May 18, 2015 6:11 am

Welcome to the forum. There is a second possibility, and that is a leak from the transmission. If you have not changed the transmission oil in a while, you will be shocked as to what comes out. They tend to fill up with condensation and in the process, get overfilled with a lube and water emulsion. Up in the navigation bar above, there is a link to PDF manuals where you can find scans of Owner's manuals if you don't have one. They have loads of information about the tractor- like the entire lubrication schedule.

That said, I have a tractor split in my future to replace a rear main seal with a modified seal housing. The original factory replacement seals are not fitting properly and they tend to leak.

suzieq1
Posts: 4
Joined: Sun May 17, 2015 10:53 pm
Zip Code: 17844

Re: torque tube

Postby suzieq1 » Mon May 18, 2015 8:41 am

Thank you for the insight that was supposed to say gear oil but somehow auto corrected. I am going to look at the manuals and see what I can find

suzieq1
Posts: 4
Joined: Sun May 17, 2015 10:53 pm
Zip Code: 17844

Re: torque tube

Postby suzieq1 » Mon May 18, 2015 9:01 am

It appears as though I do not have the clutch housing hand hole cover. the hole is there but nothing in it, this is where the oil is coming from. But again I was assuming that there is no fluid in the torque tube so then it would have to be the transmission seal ...right like bob said. it isn't leaking a lot and I really need it in the summer. the split wont happen until winter

User avatar
Mike in Louisiana
10+ Years
10+ Years
Posts: 6217
Joined: Tue Feb 15, 2005 10:10 am
Zip Code: 71023
Circle of Safety: Y
Location: LA, Doyline

Re: torque tube

Postby Mike in Louisiana » Mon May 18, 2015 10:09 am

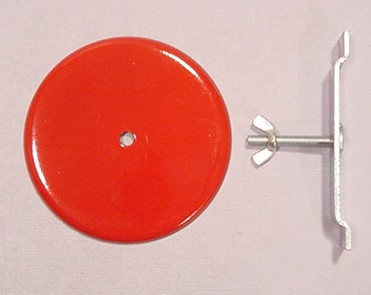

In the mean time I would make a cover or get one from TM TRACTOR. Mice think that is a great home.
15.45 $

1975 cub (LouAnn) serial # 245946, 1941 John Deere Model H

Good judgment comes from experience,
and a lot of that comes from bad judgment. Will Rogers

User avatar
bob in CT
Team Cub Mentor
Team Cub Mentor
Posts: 6000
Joined: Thu Jun 07, 2007 9:34 am
Zip Code: 06040
Tractors Owned: 77 Cub (red); 74 Cub; 52 Cub; 50 Cub ( post-demo)
Circle of Safety: Y
Location: CT, Manchester

Re: torque tube

Postby bob in CT » Mon May 18, 2015 1:19 pm

suzieq1 wrote:It appears as though I do not have the clutch housing hand hole cover. the hole is there but nothing in it, this is where the oil is coming from. But again I was assuming that there is no fluid in the torque tube so then it would have to be the transmission seal ...right like bob said. it isn't leaking a lot and I really need it in the summer. the split wont happen until winter



I think if you drain the transmission and refill it to the proper level you will be fine for now.
