Cub brush guard

Postby Clip » Thu Aug 20, 2015 6:46 am

I'm in need of tie-rod protection when mowing brush, and wondered about adding a brush guard to a Rick Prentice-style front hitch. Would this put too much stress on the casting if something hits the outer edges of the brush guard? To solve this, I was thinking about bracing the sides against the front axle tube, instead of mounting the entire guard on the front axle.

Here is a similar style guard like I had in mind.

https://www.youtube.com/watch?v=yYstCv2auQ8

Bob McCarty
Team Cub
Team Cub
Posts: 8317
Joined: Tue May 25, 2004 8:02 pm
Zip Code: 80501
Tractors Owned: Cubs, MH Pony, Shaw, Allis G, 1934 Silver King, JD LA and LI, Gibson D, David Bradley Tri-Trac
Circle of Safety: Y
Location: CO, Longmont

Re: Cub brush guard

Postby Bob McCarty » Thu Aug 20, 2015 8:32 am

Clip, Bob Perry is a forum member. You might PM him and see if he has had any problems or concerns with his design.

Bob
"We don't need to think more,
we need to think differently."
-Albert Einstein

CapeCodCubs
5+ Years
5+ Years
Posts: 2790
Joined: Fri Jan 11, 2008 5:30 pm
Zip Code: 02747
Tractors Owned: .
1948 F Cub Fast hitch
1949 F Cub
1950 F Cub Fast hitch
1965 Loboy Fast hitch

(15) FastHitch implements
tons' of cultivating and planting stuff
C-16 Cub Middlebuster
A33 Cub bean harvested
NOS Planet Jr. planter
172 planter, large combo hopper, 101A fertilzer hopper
Location: MA, Dartmouth

Re: Cub brush guard

Postby CapeCodCubs » Thu Aug 20, 2015 9:32 am

I had one like this I bought from former member Brad Homstead (see the link). Bob liked it and came up with a better easier to remove design. He is not on the forum much either but I never heard him speak of any drawbacks to his design.


http://www.ebay.com/itm/NEW-Farmall-CUB ... 4ae4c968e2

SundaySailor
10+ Years
10+ Years
Posts: 1040
Joined: Mon Jun 28, 2004 1:45 pm
Zip Code: 00000
Tractors Owned: 1950 Cub
2000 Simplicity Landlord DLX
1988 JD 322 Garden Tractor with hydraulic scoop, 54" scrape blade and 48" mower deck, Haban 3 pt hitch sickle bar mower

2014 LS XR3032H w/ FEL and BH
Circle of Safety: Y

Re: Cub brush guard

Postby SundaySailor » Thu Aug 20, 2015 12:44 pm

CapeCodCubs wrote:I had one like this I bought from former member Brad Homstead (see the link). Bob liked it and came up with a better easier to remove design. He is not on the forum much either but I never heard him speak of any drawbacks to his design.


http://www.ebay.com/itm/NEW-Farmall-CUB ... 4ae4c968e2


I own a brush guard just about like this one. I didn't buy it from Brandon though.

I really like mine. It helps to dress up the Cub quite a bit, and I no longer worry about getting anything stuffed into my grill. It also makes for a nice hanger for my walking cane. :lol:

BTW, Brandon lives about 12 miles from me as the crow flies. He's a younger guy trying to make a living and help people with many different models of tractors.

I've bought a fair amount of equipment from him.
Though trillions and trillions of eyes have been watching the skies for as long as human memory exists, no gods nor angels have been seen or documented outside of religion. The number of spaceships being sighted however has become much more prevalent.

Clip
Cub Star
Cub Star
Posts: 195
Joined: Thu Jul 10, 2014 7:18 am
Zip Code: 24551
Circle of Safety: Y

Re: Cub brush guard

Postby Clip » Thu Aug 20, 2015 6:08 pm

Went ahead and added a front hitch and started a brush guard, will post some pictures after paint.

User avatar
Bob Perry
5+ Years
5+ Years
Posts: 1866
Joined: Sun Feb 22, 2009 3:30 pm
Zip Code: 02748
Tractors Owned: :

1949 Farmall Cub / FH

1951 Farmall Cub / IH mower

1964 International Cub Lo-Boy / Woods 59 mower

1967 International Cub / FH

1946 Farmall H

1949 Farmall H

a doodle bug

More than a dozen Cub Cadets running plus a few in the bone-yard

.
Location: Dartmouth, Massachusetts

Re: Cub brush guard

Postby Bob Perry » Thu Aug 20, 2015 6:46 pm

Let me know`if you have any questions. I love mine because 1/2 the time it's off but if go in the woods it's really just one pin and it's done.
REMEMBER: Keep it correct or you may face the


Clip
Cub Star
Cub Star
Posts: 195
Joined: Thu Jul 10, 2014 7:18 am
Zip Code: 24551
Circle of Safety: Y

Re: Cub brush guard

Postby Clip » Thu Aug 20, 2015 7:40 pm

Bob, the brush guard you made looks fantastic!

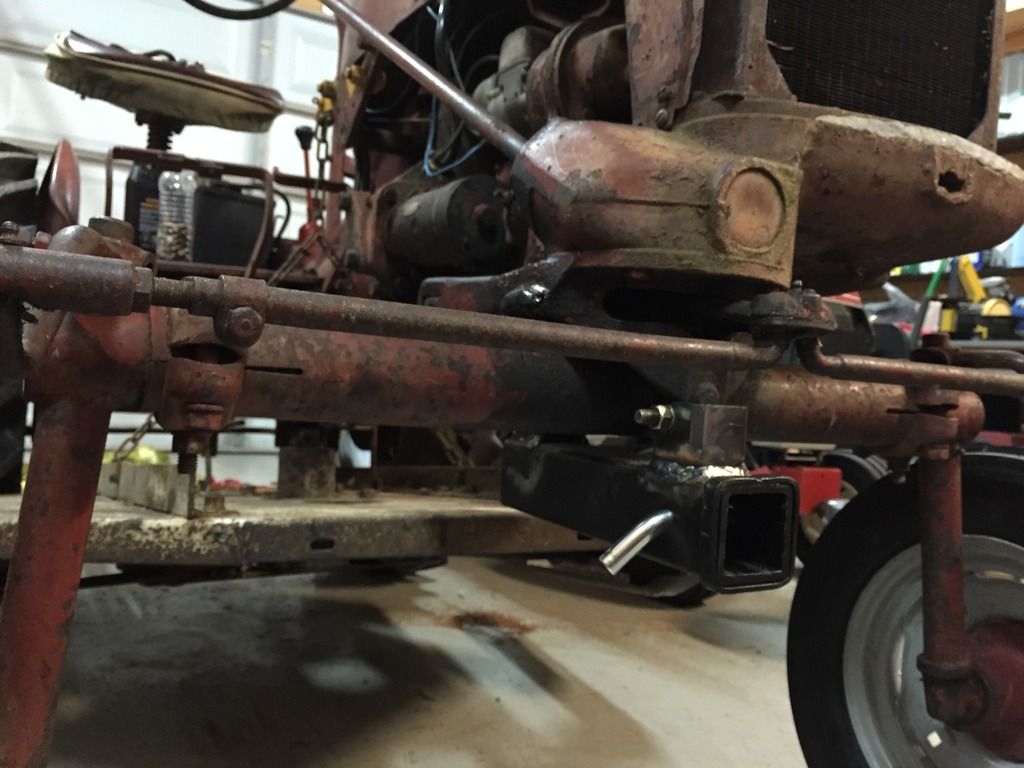

Here's what I came up with at a coworker's fab shop this afternoon, after mowing some heavy brush for him. Hitch is a Prentice-style, although we used 1/4" wall tube to mount it. I'm thinking I might cut a relief slot in the front and back so I can verify it's clamping the casting properly. Everything else was pulled from the scrap pile, including the hoop. It was bent a little off, but I don't think that'll interfere with guarding the radiator. 6" c-channel is now blocking the tie rods and steering.

To do:
Get expanded metal to cover the radiator opening
Cut a little off of the bottom corners and smooth the c-channel to give tire clearance at full articulation
Add some 1" tube hoops swept back to protect the headlights
Prep, prime and paint



User avatar
Rudi
Cub Pro
Cub Pro
Posts: 28707
Joined: Sun Feb 02, 2003 8:37 pm
Zip Code: E1A7J3
Skype Name: R.H. "Rudi" Saueracker, SSM
Tractors Owned: 1947 Cub "Granny"
1948 Cub "Ellie-Mae"
1968 Cub Lo-Boy
Dad's Putt-Putt
IH 129 CC
McCormick 100 Manure Spreader
McCormick 100-H Manure Spreader
Post Hole Digger
M-H #1 Potato Digger
Circle of Safety: Y
Twitter ID: Rudi Saueracker, SSM
Location: NB Dieppe, Canada

Re: Cub brush guard

Postby Rudi » Sat Aug 22, 2015 8:04 pm

Now that is different .. I kinda like the arch :D :!:
Confusion breeds Discussion which breeds Knowledge which breeds Confidence which breeds Friendship


Clip
Cub Star
Cub Star
Posts: 195
Joined: Thu Jul 10, 2014 7:18 am
Zip Code: 24551
Circle of Safety: Y

Re: Cub brush guard

Postby Clip » Sun Aug 23, 2015 7:14 am

It was a real time saver! Guess it was supposed to be a 6" radius 180 bend out of 2" tube, the top measures 12" ID but the bottom is 13".. Found it in the scrap pile and took about 5" off the bottom of either side.

danovercash
10+ Years
10+ Years
Posts: 3367
Joined: Mon Feb 17, 2003 8:48 pm
Zip Code: 28081
Circle of Safety: Y
Location: NC, Kannapolis

Re: Cub brush guard

Postby danovercash » Sun Aug 23, 2015 10:12 pm

Here's mine from my "King of the hill" post.
http://photos.cubfest.com/displayimage.php?pos=-12451
"I'd rather be a mechanic in the shop"- Henry Ford

252646 & 221525. 195897 (Gone, but not forgotten)

Clip
Cub Star
Cub Star
Posts: 195
Joined: Thu Jul 10, 2014 7:18 am
Zip Code: 24551
Circle of Safety: Y

Re: Cub brush guard

Postby Clip » Mon Aug 24, 2015 3:57 pm

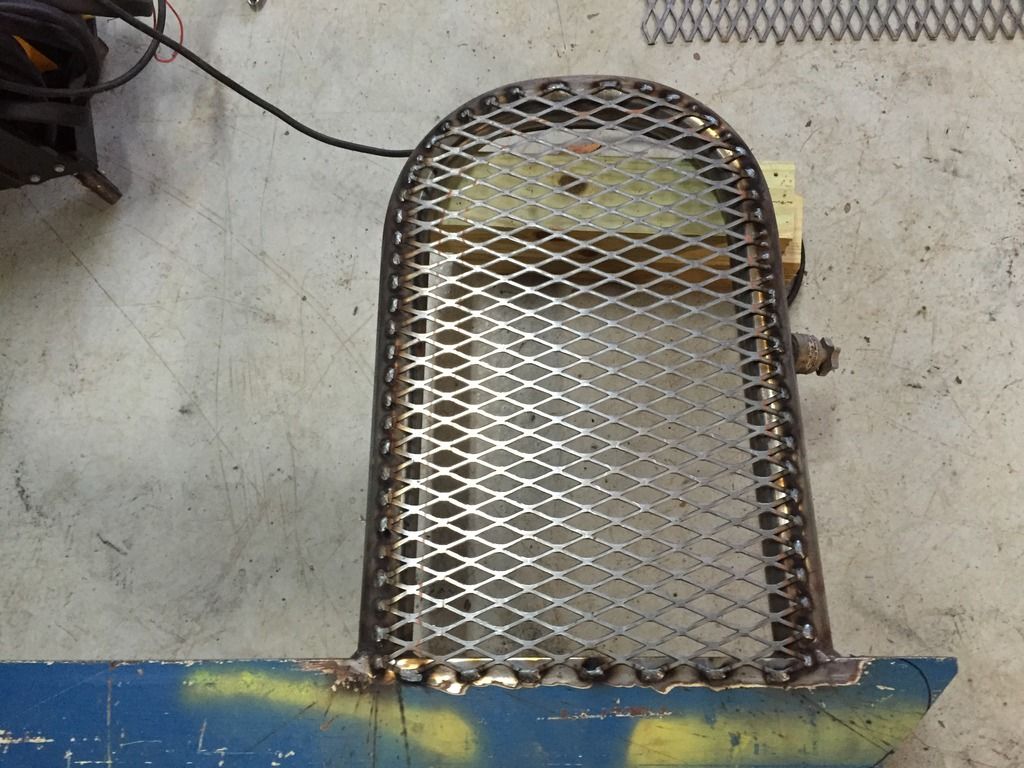

Picked up the 3/4 #9 expanded metal today and some 3/4" pipe (around 1" OD) to finish off the radiator guard and make some headlight guards. Depending on how fast I can get the pipe bent to shape it might be done by this weekend.

Clip
Cub Star
Cub Star
Posts: 195
Joined: Thu Jul 10, 2014 7:18 am
Zip Code: 24551
Circle of Safety: Y

Re: Cub brush guard

Postby Clip » Thu Nov 12, 2015 9:34 pm

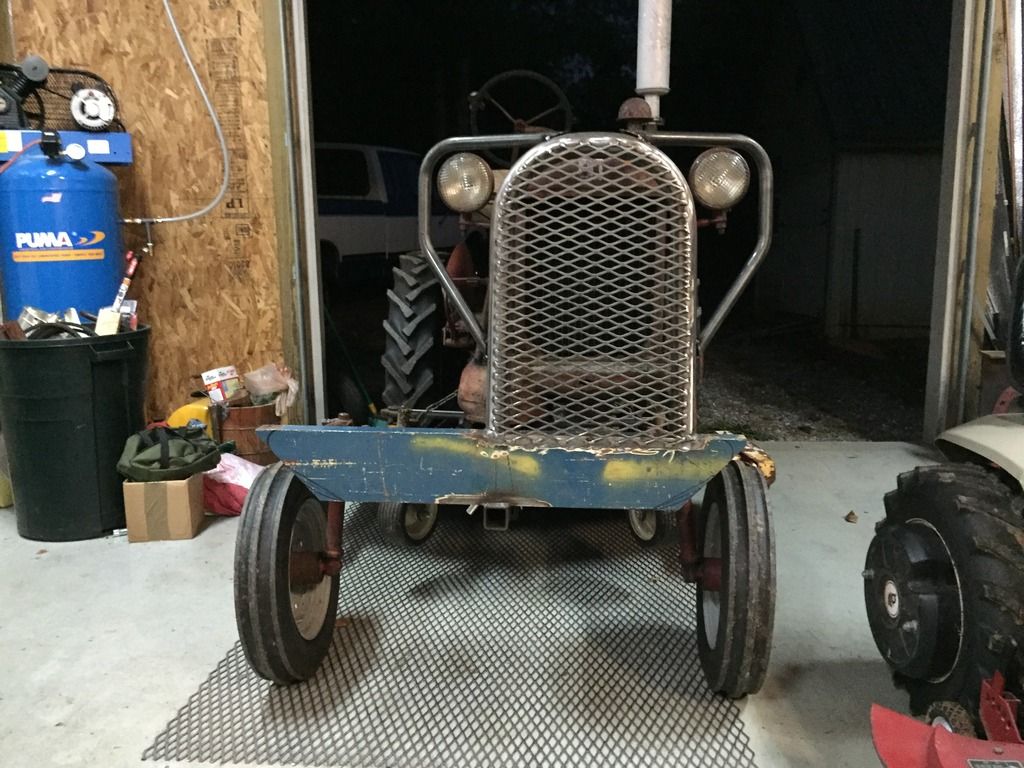

Added mesh and tacked the headlight guards in place. Need to cut mesh for those next and fully weld them to the arch. Also need to trim the channel for a little more clearance on turns with the axle off level.

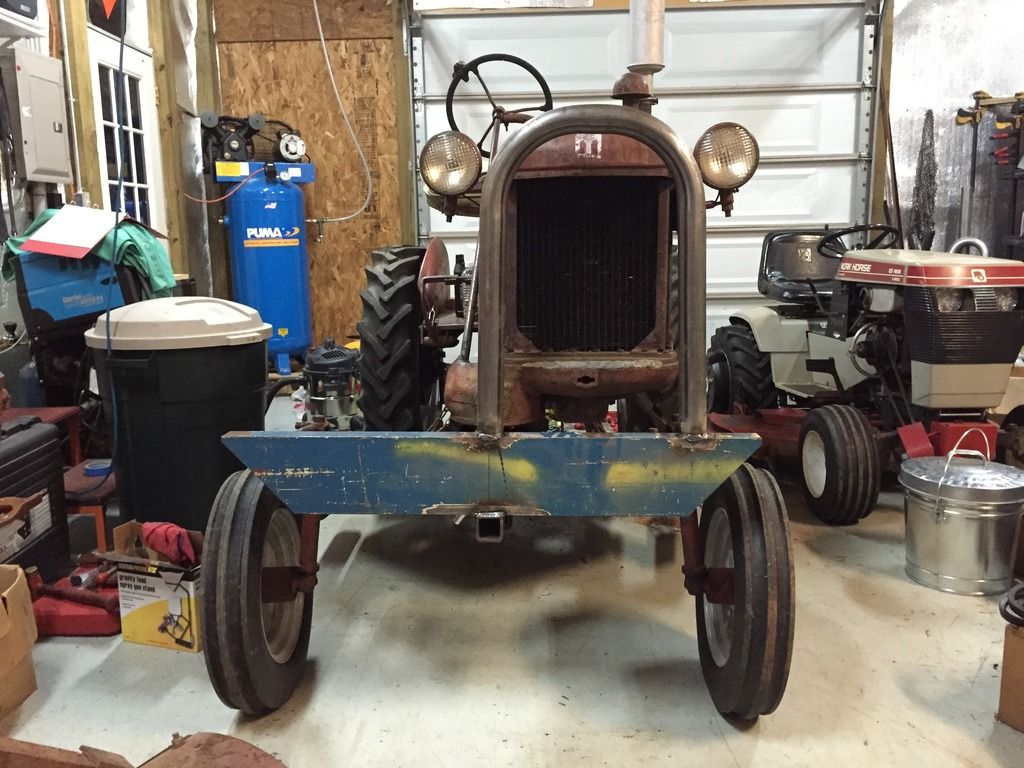

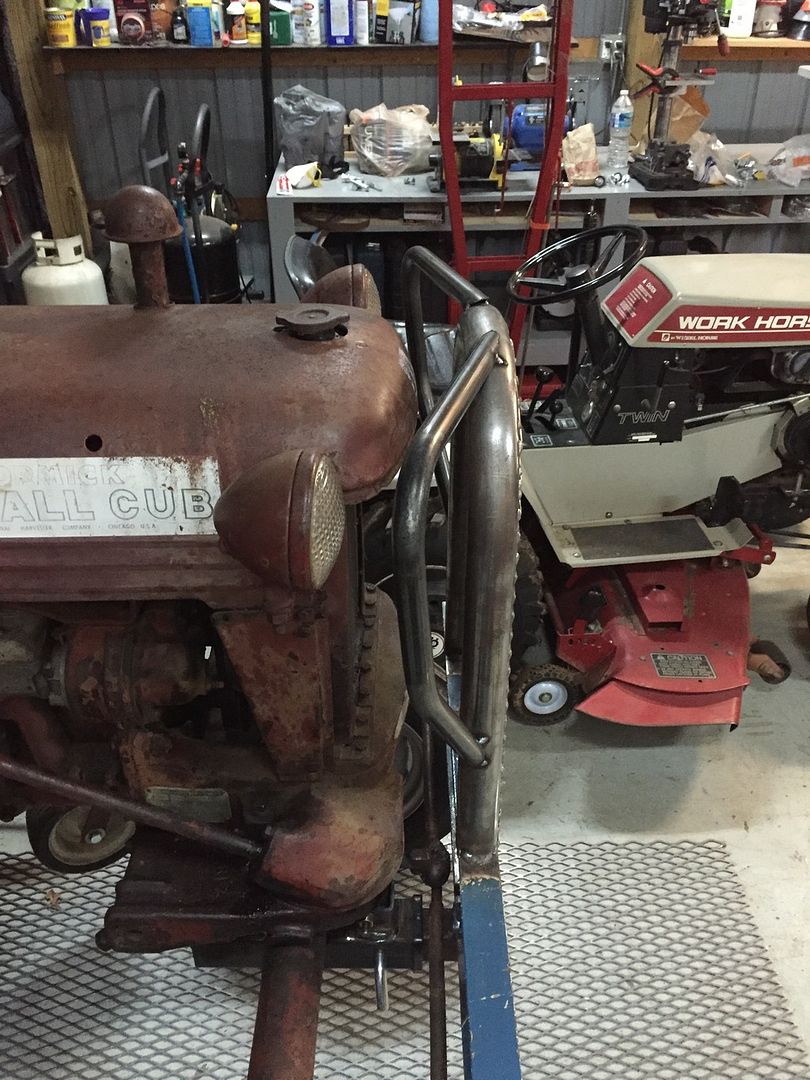

Swept them back some to try and divert the branches away. They look a little off in the head-on picture but I think that's where the receiver has some clearance for a slip fit. Got the guards bent but had to break out the acetylene torch and heat them to make a final adjustment.
