Rear Wheel Paint

Postby Clownfish » Sun Nov 29, 2015 9:41 am

I have seen several posts recommending Rustoleum Hammered Silver paint for the rear rims and the pictures look good. There are 2 Rustoleum Hammered silver paints-- One is "Universal" and one is the normal Rustoleum. The "Universal" is a paint and primer. Which one should I use? Also should I use the spray or brush on? The rims are in good condition with only a small amount of rust which will be removed with a wire wheel.

Universal


Regular Rustoleum

staninlowerAL
5+ Years
5+ Years
Posts: 3515
Joined: Fri Oct 29, 2010 11:34 pm
Zip Code: 36558
Tractors Owned: Cubs: (3)'49's, (1)'52, (1)'57 IH Cub LoBoy w/FH, (1)'72 154 Number Series Loboy, '76 Longstripe w/FH, Mowers: C-22, Bush Hog 412, Pennington 59, Woods RM42CF, Woods 42, assorted FCub plows, planters, discs, etc. OTHERS: '49 AC B & Ind. Sickle mower, '61 AC D12 Ser 2, '52 8N, '56 Ferguson 35 Deluxe, '53 MM BG (offset), (2) '49 Avery V's, '51 JD M (regular), '56 JD 420C, with Blade and fire plow, '85 JD 850 (Yanmar) w/72" belly mower, '76 Yanmar 1500, Sears Surburban's, MTD's, Jeeps & other misc. "treasures"
Circle of Safety: Y
Location: AL (Southwest)

Re: Rear Wheel Paint

Postby staninlowerAL » Sun Nov 29, 2015 10:03 am

Given the fact that your rims are in good condition, if you will roughen the surface a bit you should be OK with either one. I've used the regular before and the results were satisfactory. Of course you can get a bit more paint on with a brush rather than spray but that depends somewhat on skill, temperature and other conditions. Knowing what you have done so far, I'm sure it will turn out good. Stan

User avatar
Sailor
Cub Star!!
Cub Star!!
Posts: 353
Joined: Fri Mar 28, 2014 7:59 pm
Zip Code: 42261
Tractors Owned: 1948 Farmall Cub
Ser.# 16812
Circle of Safety: Y
Location: KY, Morgantown

Re: Rear Wheel Paint

Postby Sailor » Sun Nov 29, 2015 3:59 pm

What does the term "hammered" refer to?
1948 Cub
Cub-22 Mower
Cub-54 Leveling & Grading Blade
Cub-144 Cultivator
Cub-189 Moldboard Plow (direct-Connected, One Bottom, Two-way)
Woods 59 Mower

Rob in NH
10+ Years
10+ Years
Posts: 2515
Joined: Sun Oct 03, 2004 7:11 am
Zip Code: 03848
eBay ID: panelbeata
Tractors Owned: 1947 circle cub
1950 cub demonstrator
1957 cub
1967 cub
Circle of Safety: Y
Location: NH, Kingston

Re: Rear Wheel Paint

Postby Rob in NH » Sun Nov 29, 2015 4:18 pm

i would use a primer and i would spray them

Clownfish
Cub Star!!
Cub Star!!
Posts: 419
Joined: Sat Dec 07, 2013 12:36 pm
Zip Code: 36578
Tractors Owned: 49 Farmall Cub
1959 Farmall Cub
2005 Massey Ferguson 1528
Circle of Safety: Y
Location: AL, Stapleton

Re: Rear Wheel Paint

Postby Clownfish » Sun Nov 29, 2015 4:43 pm

Hammered is a finish with a little texture in it. Think hammered copper but less texture. At least that is how I would describe it.

staninlowerAL
5+ Years
5+ Years
Posts: 3515
Joined: Fri Oct 29, 2010 11:34 pm
Zip Code: 36558
Tractors Owned: Cubs: (3)'49's, (1)'52, (1)'57 IH Cub LoBoy w/FH, (1)'72 154 Number Series Loboy, '76 Longstripe w/FH, Mowers: C-22, Bush Hog 412, Pennington 59, Woods RM42CF, Woods 42, assorted FCub plows, planters, discs, etc. OTHERS: '49 AC B & Ind. Sickle mower, '61 AC D12 Ser 2, '52 8N, '56 Ferguson 35 Deluxe, '53 MM BG (offset), (2) '49 Avery V's, '51 JD M (regular), '56 JD 420C, with Blade and fire plow, '85 JD 850 (Yanmar) w/72" belly mower, '76 Yanmar 1500, Sears Surburban's, MTD's, Jeeps & other misc. "treasures"
Circle of Safety: Y
Location: AL (Southwest)

Re: Rear Wheel Paint

Postby staninlowerAL » Sun Nov 29, 2015 5:47 pm

Sailor wrote:What does the term "hammered" refer to?

The rims I painted with this product looked a lot like the galvanized coating on original rims. Stan

User avatar
Ben B
5+ Years
5+ Years
Posts: 438
Joined: Fri Apr 09, 2010 4:49 am
Zip Code: 24354
Tractors Owned: 1950 Farmall Cub (post demo)
1977 International Cub Red Longstripe
MTD Cub Cadet 42
MTD Cub Cadet 54
Circle of Safety: Y
Location: Southwest Virginia

Re: Rear Wheel Paint

Postby Ben B » Sun Nov 29, 2015 6:32 pm

staninlowerAL wrote:...The rims I painted with this product looked a lot like the galvanized coating on original rims. Stan


So Stan, does that mean the original color of the rear wheels was galvanized metal and not silver? Silver is all I have ever seen painted on them, but I ain't ever seen an original one that wasn't rusty.
Bravo Romeo Bravo

Clownfish
Cub Star!!
Cub Star!!
Posts: 419
Joined: Sat Dec 07, 2013 12:36 pm
Zip Code: 36578
Tractors Owned: 49 Farmall Cub
1959 Farmall Cub
2005 Massey Ferguson 1528
Circle of Safety: Y
Location: AL, Stapleton

Re: Rear Wheel Paint

Postby Clownfish » Sun Nov 29, 2015 7:30 pm

My rims still had some galvanizing on the inside of the rim-- under the tire.

User avatar
Don McCombs
Team Cub Mentor
Team Cub Mentor
Posts: 13368
Joined: Mon Feb 03, 2003 6:45 am
Zip Code: 21550
Tractors Owned: "1950 Something" Farmall Cub
1957 Farmall Cub w/FH
1977 International Cub w/FH
1978 International Cub
1948 Farmall Super A
Circle of Safety: Y
Location: MD, Deep Creek Lake

Re: Rear Wheel Paint

Postby Don McCombs » Sun Nov 29, 2015 7:54 pm

Here is a photo of one of the rear rims from my 77 Cub. The gray areas are the original galvanized finish. The blue tinted areas are some sort of paint applied over the galvanized. In reality, it is not really blue, but a different shade of gray than the galvanized. Just looks blue in the photo.

Don McCombs
MD, Deep Creek Lake

Proud Member of Maryland Chapter 39

staninlowerAL
5+ Years
5+ Years
Posts: 3515
Joined: Fri Oct 29, 2010 11:34 pm
Zip Code: 36558
Tractors Owned: Cubs: (3)'49's, (1)'52, (1)'57 IH Cub LoBoy w/FH, (1)'72 154 Number Series Loboy, '76 Longstripe w/FH, Mowers: C-22, Bush Hog 412, Pennington 59, Woods RM42CF, Woods 42, assorted FCub plows, planters, discs, etc. OTHERS: '49 AC B & Ind. Sickle mower, '61 AC D12 Ser 2, '52 8N, '56 Ferguson 35 Deluxe, '53 MM BG (offset), (2) '49 Avery V's, '51 JD M (regular), '56 JD 420C, with Blade and fire plow, '85 JD 850 (Yanmar) w/72" belly mower, '76 Yanmar 1500, Sears Surburban's, MTD's, Jeeps & other misc. "treasures"
Circle of Safety: Y
Location: AL (Southwest)

Re: Rear Wheel Paint

Postby staninlowerAL » Sun Nov 29, 2015 8:22 pm

Ben B wrote:So Stan, does that mean the original color of the rear wheels was galvanized metal and not silver? Silver is all I have ever seen painted on them, but I ain't ever seen an original one that wasn't rusty.

Don't know if I should say the original spec was galvanized but everything I have read or heard indicates that they were. Some other members might have more information to share. Stan

danovercash
10+ Years
10+ Years
Posts: 3369
Joined: Mon Feb 17, 2003 8:48 pm
Zip Code: 28081
Circle of Safety: Y
Location: NC, Kannapolis

Re: Rear Wheel Paint

Postby danovercash » Sun Nov 29, 2015 9:42 pm

I think that earlier ones were galvanized. Mine came new with paint on them (1963). I repainted with Ford argent silver because GM wheel silver is flat.
"I'd rather be a mechanic in the shop"- Henry Ford

252646 & 221525. 195897 (Gone, but not forgotten)

User avatar
gitractorman
10+ Years
10+ Years
Posts: 2596
Joined: Mon Oct 24, 2005 11:35 am
Zip Code: 14072
eBay ID: toysforjake
Tractors Owned: Lots of Cub Cadets!
1951 Farmall Cub
1977 IH Cub
1966 IH Cub
1965 IH Lo Boy
1964 IH Lo Boy
1949 Farmall Cub
Several IH 154 Lo Boys
1979 IH 184 Lo Boy
Simplicity 4416 Sovereign
Simplicity Conquest
Simplicity Legacy 4x4 Diesel
Mitsubishi MT180D 4x4 Diesel
Circle of Safety: Y
Location: Grand Island, NY

Re: Rear Wheel Paint

Postby gitractorman » Mon Nov 30, 2015 4:07 pm

Yes, the spec for the rims was galvanized. Also, the rear rims were provided by the tire manufacturers, so you'll find rims with Goodyear and BF Goodrich info on the inside of them. All that I've seen were originally galvanized when assembled, but I've seen a lot that were painted over at some point in life.

The exception to this is the narrow rear rims offered on the number series Lo-boy tractors after 1968. Those rims were painted white, and the wheel centers are welded to the outside tire rim, unlike the Cub and Lo Boy rims which have separate wheel centers and rims allowing them to be unbolted and moved around to adjust the tread width.

The hammered silver does a really nice job. The one benefit of the hammered finish is it dries with "irregularities" in it, so it covers a lot of the imperfections in the rims. It is also a very durable finish, so it holds up well to mud and dirt when in use.
Cub Cadets 682, 1811, 1864, Simplicity Legacy XL 4x4 Diesel with FEL, 60" mower, 50" Tiller

User avatar
BIGHOSS
10+ Years
10+ Years
Posts: 1678
Joined: Tue Jul 18, 2006 9:55 pm
Zip Code: 37087
Tractors Owned: 1947 Cub S/N 9216
w/ C-22 Mower

1974 Cub S/N 244814
w/59 Woods Mower

Ford 3000 Gas S/N C375091 w/Bushhog QT2345 Loader & 6' Squealer Bushhog
and a Palomino Mare named GIGI
Circle of Safety: Y
Location: TN, Lebanon

Re: Rear Wheel Paint

Postby BIGHOSS » Mon Nov 30, 2015 5:06 pm

Glen as to whether to spray or brush. If the tire is not on the rim I would spray it. But if it is still mounted, I prefer to brush. I hate to see a good paint job ruined by aluminum paint oversprayed on the rubber tire. I know it can be masked to prevent the overspray, but I am too lazy, impatient, unskilled or whatever to do a decent job of masking.

One more thing, I am a big fan of POR-15 paint. I brush POR-15 on the rusty areas and then prime with metal etch, followed by an oil base primer. Then a couple of coats of your top coat of choice. I have used Valspar light gray paint with good results. Not original, but a tough finish. JMHO
"Courage is being scared to death-but saddling up anyway".......John Wayne

Clip
Cub Star!
Cub Star!
Posts: 223
Joined: Thu Jul 10, 2014 7:18 am
Zip Code: 28479
Circle of Safety: Y

Re: Rear Wheel Paint

Postby Clip » Mon Nov 30, 2015 6:08 pm

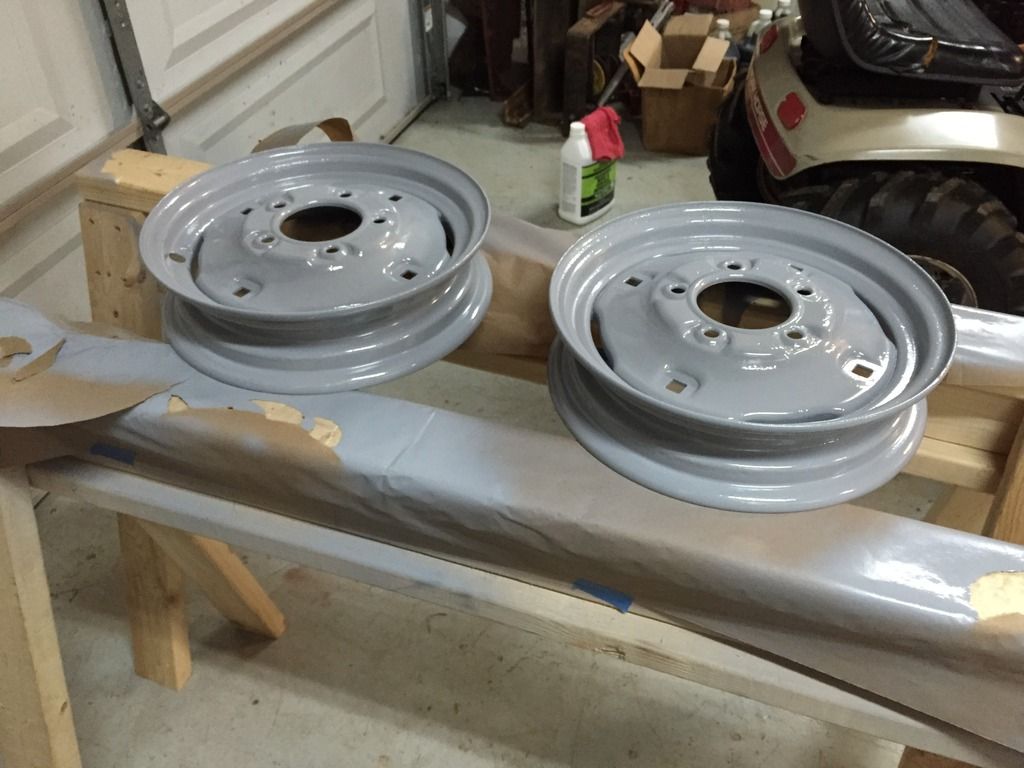

I've repainted my front wheels with SPI's epoxy primer after media blasting to bare metal. Did this to prep for IH 50 paint but haven't had the occasion to get it mixed. I'd like to finish all the work and paint everything at once.

I went with epoxy primer after I'd read about Rust Bullet, ZeroRust, POR-15, etc. I would have gone with POR and good surface prep if the parts were any larger, but I could get these in the blast cabinet and had read nothing but good about epoxy primers if the prep is done right. They came out looking very good, in fact I don't mind leaving them in primer as it's a beautifully sealed surface inside and out. This way I have the option of not dismounting the new tires when I get the red paint out.

Edit: the rear rims are new replacements, silver paint.




User avatar
Sailor
Cub Star!!
Cub Star!!
Posts: 353
Joined: Fri Mar 28, 2014 7:59 pm
Zip Code: 42261
Tractors Owned: 1948 Farmall Cub
Ser.# 16812
Circle of Safety: Y
Location: KY, Morgantown

Re: Rear Wheel Paint

Postby Sailor » Wed Dec 02, 2015 6:23 am

Clownfish wrote:Hammered is a finish with a little texture in it. Think hammered copper but less texture. At least that is how I would describe it.

Got it, thanks Clownfish.
1948 Cub
Cub-22 Mower
Cub-54 Leveling & Grading Blade
Cub-144 Cultivator
Cub-189 Moldboard Plow (direct-Connected, One Bottom, Two-way)
Woods 59 Mower
