FH pull bar extension

Postby staninlowerAL » Mon Dec 07, 2015 4:53 am

Reference #20, OEM part number 520 095 R2 or Aftermarket reproduction. Please PM or post, thanks. Stan
pullbar ext.JPG

Bob McCarty
Team Cub
Team Cub
Posts: 8934
Joined: Tue May 25, 2004 8:02 pm
Zip Code: 80501
Tractors Owned: Cubs, MH Pony, Shaw, Allis G, 1934 Silver King, JD LA and LI, Gibson D, David Bradley Tri-Trac
Circle of Safety: Y
Location: CO, Longmont

Re: FH pull bar extension

Postby Bob McCarty » Mon Dec 07, 2015 2:51 pm

Stan, If you can weld or have a friend that does, I can send you some dimensions for the aftermarket style. The OEM was cast.

Bob
"We don't need to think more,
we need to think differently."
-Albert Einstein

staninlowerAL
5+ Years
5+ Years
Posts: 3558
Joined: Fri Oct 29, 2010 11:34 pm
Zip Code: 36558
Tractors Owned: Cubs: (3)'49's, (1)'52, (1)'57 IH Cub LoBoy w/FH, (1)'72 154 Number Series Loboy, '76 Longstripe w/FH, Mowers: C-22, Bush Hog 412, Pennington 59, Woods RM42CF, Woods 42, assorted FCub plows, planters, discs, etc. OTHERS: '49 AC B & Ind. Sickle mower, '61 AC D12 Ser 2, '52 8N, '56 Ferguson 35 Deluxe, '53 MM BG (offset), (2) '49 Avery V's, '51 JD M (regular), '56 JD 420C, with Blade and fire plow, '85 JD 850 (Yanmar) w/72" belly mower, '76 Yanmar 1500, Sears Surburban's, MTD's, Jeeps & other misc. "treasures"
Circle of Safety: Y
Location: AL (Southwest)

Re: FH pull bar extension

Postby staninlowerAL » Mon Dec 07, 2015 3:07 pm

OK, thanks Bob. I'll PM you with an email address. Stan

User avatar
dgrapes59
10+ Years
10+ Years
Posts: 3317
Joined: Sun Jul 13, 2008 10:05 pm
Zip Code: 45067
Tractors Owned: 1951 Cub
2-1955 Loboy w FH
a few plows, discs, mowers, blades, carrier & such
Several '61 CC Originals, CC Narrow Frames- 70 & 100's, 71, Couple 102's & 122's, 72, 124, 73, various CC options & implements #1 & 2 Trailers, 1963 Springfield, JD 770
Circle of Safety: Y
Location: OH, Trenton

Re: FH pull bar extension

Postby dgrapes59 » Mon Dec 07, 2015 4:41 pm

Link has some discussion on this and some visuals that may be helpful...

http://farmallcub.com/phpBB2/viewtopic. ... +extension

Good luck,
David

User avatar
tmays
5+ Years
5+ Years
Posts: 2573
Joined: Wed May 11, 2011 8:59 pm
Zip Code: 39180
Tractors Owned: 1948 Allis Chalmers G
1947 Cub
1952 Cub

154 Cub LoBoy
Location: Vicksburg, MS

Re: FH pull bar extension

Postby tmays » Mon Dec 07, 2015 5:49 pm

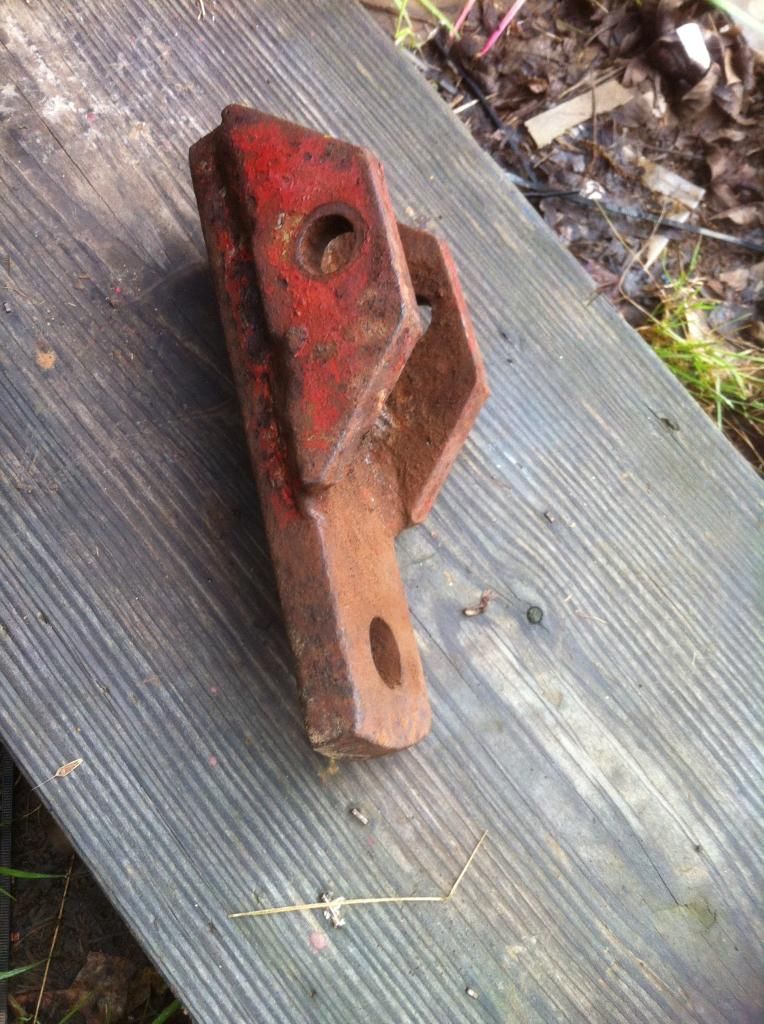

Actually the original was not cast. Now, I do not know how long they used this style, but here is an original that I have.

Thomas

User avatar
Boss Hog
Cub Pro
Cub Pro
Posts: 10241
Joined: Mon Oct 24, 2005 8:35 pm
Zip Code: 23962
eBay ID: dmb2613
Circle of Safety: Y
Location: VA. Randolph

Re: FH pull bar extension

Postby Boss Hog » Mon Dec 07, 2015 6:38 pm

tmays wrote:Actually the original was not cast. Now, I do not know how long they used this style, but here is an original that I have.


That was very late on Thomas late 70s very late 70s
Boss
IN GOD WE TRUST
All others pay cash
Boss Hog
Power corrupts; absolute power corrupts absolutely byJohn Emerich Edward Dalberg

User avatar
Boss Hog
Cub Pro
Cub Pro
Posts: 10241
Joined: Mon Oct 24, 2005 8:35 pm
Zip Code: 23962
eBay ID: dmb2613
Circle of Safety: Y
Location: VA. Randolph

Re: FH pull bar extension

Postby Boss Hog » Mon Dec 07, 2015 6:39 pm

staninlowerAL wrote:Reference #20, OEM part number 520 095 R2 or Aftermarket reproduction. Please PM or post, thanks. Stan
pullbar ext.JPG


I have an original cast one
PM on the way
IN GOD WE TRUST
All others pay cash
Boss Hog
Power corrupts; absolute power corrupts absolutely byJohn Emerich Edward Dalberg

staninlowerAL
5+ Years
5+ Years
Posts: 3558
Joined: Fri Oct 29, 2010 11:34 pm
Zip Code: 36558
Tractors Owned: Cubs: (3)'49's, (1)'52, (1)'57 IH Cub LoBoy w/FH, (1)'72 154 Number Series Loboy, '76 Longstripe w/FH, Mowers: C-22, Bush Hog 412, Pennington 59, Woods RM42CF, Woods 42, assorted FCub plows, planters, discs, etc. OTHERS: '49 AC B & Ind. Sickle mower, '61 AC D12 Ser 2, '52 8N, '56 Ferguson 35 Deluxe, '53 MM BG (offset), (2) '49 Avery V's, '51 JD M (regular), '56 JD 420C, with Blade and fire plow, '85 JD 850 (Yanmar) w/72" belly mower, '76 Yanmar 1500, Sears Surburban's, MTD's, Jeeps & other misc. "treasures"
Circle of Safety: Y
Location: AL (Southwest)

Re: FH pull bar extension

Postby staninlowerAL » Mon Dec 07, 2015 11:15 pm

Thanks to everyone who responded to my question, and the references to previous posts and discussions on this topic. I should have done a search before I jumped into this. So from what I've read, the early ones were fabricated, later they were cast then toward the end of production they were fabricated again--I hope I got that right. Checking the prices and seeing as how my FH is probably one of the early ones and is on my 57 LoBoy, I think I will use the information provided and try my skills at building one. Thanks again to all. Stan

User avatar
Bill Hudson
Team Cub
Team Cub
Posts: 8248
Joined: Wed Jul 26, 2006 10:50 am
Zip Code: 44057
Tractors Owned: 57 F-Cub - Dad & Mom's Cub
77 F-Cub - Red Long Stripe
52 F-Cub
49 F-Cub
Circle of Safety: Y
Location: OH, Madison

Re: FH pull bar extension

Postby Bill Hudson » Tue Dec 08, 2015 11:19 am

Stan,

My early '57 F-Cub has the cast version and I'm very confident that it is original to the tractor.

Bill
"The probability of life originating from accident is comparable to the probability of the unabridged dictionary resulting from an explosion in a printing shop." Edwin Conklin, biologist

staninlowerAL
5+ Years
5+ Years
Posts: 3558
Joined: Fri Oct 29, 2010 11:34 pm
Zip Code: 36558
Tractors Owned: Cubs: (3)'49's, (1)'52, (1)'57 IH Cub LoBoy w/FH, (1)'72 154 Number Series Loboy, '76 Longstripe w/FH, Mowers: C-22, Bush Hog 412, Pennington 59, Woods RM42CF, Woods 42, assorted FCub plows, planters, discs, etc. OTHERS: '49 AC B & Ind. Sickle mower, '61 AC D12 Ser 2, '52 8N, '56 Ferguson 35 Deluxe, '53 MM BG (offset), (2) '49 Avery V's, '51 JD M (regular), '56 JD 420C, with Blade and fire plow, '85 JD 850 (Yanmar) w/72" belly mower, '76 Yanmar 1500, Sears Surburban's, MTD's, Jeeps & other misc. "treasures"
Circle of Safety: Y
Location: AL (Southwest)

Re: FH pull bar extension

Postby staninlowerAL » Tue Dec 08, 2015 12:45 pm

Bill Hudson wrote:Stan,
My early '57 F-Cub has the cast version and I'm very confident that it is original to the tractor. Bill

Thanks for that insight Bill. My FH is an add on although parts of one was on the tractor when I acquired it. A FH was purchased from a FORUM Member and was used to complete the original one so I really don't know how old it is other than a FH was probably on the tractor from the beginning and the SN is 4829J which is about in the middle of the range of SN produced in 1957. Stan

User avatar
tmays
5+ Years
5+ Years
Posts: 2573
Joined: Wed May 11, 2011 8:59 pm
Zip Code: 39180
Tractors Owned: 1948 Allis Chalmers G
1947 Cub
1952 Cub

154 Cub LoBoy
Location: Vicksburg, MS

Re: FH pull bar extension

Postby tmays » Tue Dec 08, 2015 3:27 pm

Bill Hudson wrote:Stan,

My early '57 F-Cub has the cast version and I'm very confident that it is original to the tractor.

Bill

Mine is from a 1955 Cub purchased with fast hitch installed. So apparently sometime between 1955 and 1957 the switch was made.

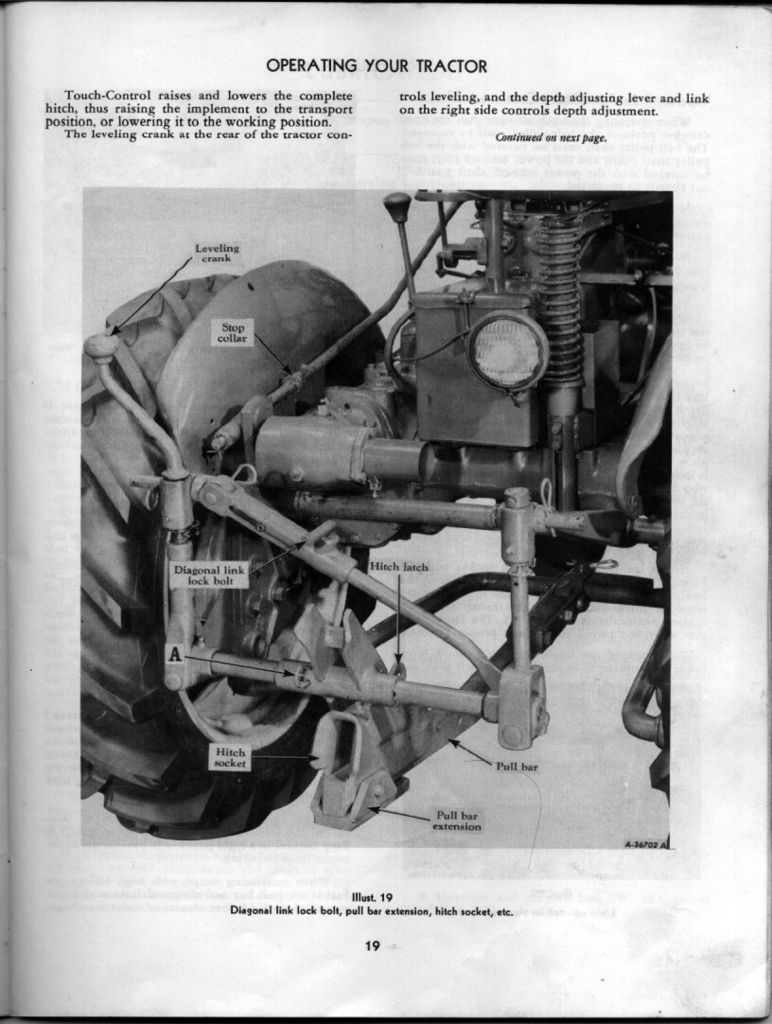

This pic is from 1955 manual
Thomas

User avatar
Buzzard Wing
Cub Pro
Cub Pro
Posts: 10517
Joined: Mon Aug 09, 2004 10:14 pm
Zip Code: 02840
Location: RI, Newport

Re: FH pull bar extension

Postby Buzzard Wing » Wed Dec 09, 2015 9:18 am

I believe the original ones were forged.

There is a spare one (or 2) in garage, but I ain't giving it away. I much prefer the 2x2 receiver that Bob Perry made for me (Ric Prentice style) for it's unlimited usefulness.
1971 Cub (Rufus) 1950 Cub (Cathy) 1965 Lo Boy Fast Hitch (Nameless III) 1970 Cub 1000 Loader & Fast Hitch (Lee)

Jim Becker
Team Cub
Team Cub
Posts: 13741
Joined: Sun Feb 02, 2003 2:59 pm
Zip Code: 55319
Circle of Safety: Y
Location: MN

Re: FH pull bar extension

Postby Jim Becker » Fri Dec 11, 2015 8:22 pm

I don't know if the later style was cast or forged, maybe I should just call it "one-piece" vs. "welded" or "fabricated". Every one I have/had is/was the one-piece style. My earliest is a '59 Lo-Boy that seems to have always had a Fast-Hitch and is the one-piece style. A '57 brochure shows a welded style and a '58 shows one-piece style. My long-stripe sales brochures ('77 and '78) show the one-piece style. But IH reused a lot of old pictures in their brochures, so collectively all the brochures prove is that the one-piece style existed by '58.

My 12/54 parts catalog is about the earliest that would have a Fast-Hitch listed. It gives part number 520 095 R11 for the pull bar extension. My next newer catalog is 6/63 and lists it as 520 095 R2 (the same as shown at the top of this thread). Given the way IH numbered parts, it is reasonable to conclude that the welded version is 520 095 R11 and the one-piece version is 520 095 R2. So the question reduces to when the newer part number replaced the older. Some parts catalogs between '54 and '58 might narrow it down some more.

If they changed back to the welded style on very late machines, it was never shown in a parts catalog. Such a change may have been done as a manufacturing convenience and only been documented in some shop work orders. They may have even found a pallet crate full of the earlier part shoved to the back in a warehouse and simply used them with no documentation.

User avatar
Barnyard
Team Cub
Team Cub
Posts: 21299
Joined: Tue Aug 07, 2007 3:39 pm
Zip Code: 45030
Tractors Owned: At This Time
40 Farmall Cubs (Round Hood)
2 Farmall Cub (Square Hood)
2 IH Cubs (Square Hood)
5 Lo-Boys (Round Hood)
2 Lo-Boys (Square Hood)
2 Farmall 404's
1 Farmall H
1 Ferguson 20
1 Cub Cadet 125
1 Kubota B-7100
Circle of Safety: Y
Location: OH, New Haven (Hamilton County)

Re: FH pull bar extension

Postby Barnyard » Tue Jan 12, 2016 12:27 pm

This is an earlier post that had been in the Vine. Since it contains some useful information that may help members in the future it has been moved to the main forum.

PLEASE NOTE: The original poster is no longer looking for this part. This post has been edited to remove any of the "Wanted" references
It is common sense to take a method and try it. If it fails, admit it frankly and try another. But above all, try something.
- Franklin D. Roosevelt -

Circle of Safety

User avatar
Trent M
Cub Pro
Cub Pro
Posts: 3337
Joined: Wed Aug 09, 2006 6:21 pm
Zip Code: 62859
Circle of Safety: Y
Location: Illinois Southern

Re: FH pull bar extension

Postby Trent M » Tue Jan 12, 2016 2:09 pm

Here are some side-by-side pics, just for fun.







Trent McPeak
