Rear Wheel Weights

The Cub Club -- Questions and answers to all of your Cub related issues.
Forum rules
Notice: For sale and wanted posts are not allowed in this forum. Please use our free classifieds or one of our site sponsors for your tractor and parts needs.
tieman
5+ Years
5+ Years
Posts: 51
Joined: Tue Sep 29, 2015 1:50 pm
Zip Code: 63755

Rear Wheel Weights

Postby tieman » Tue Dec 22, 2015 9:00 am

Anyone know of an easy way to put the rear wheel weight back on my cub without destroying my paint job? Done it 20 years ago on another cub by myself but cant recall how I done it. Old age I guess?
2015-12-17 19.24.35 (640x425).jpg

SPONSOR AD

Sponsor



Sponsor


User avatar
tmays
10+ Years
10+ Years
Posts: 3402
Joined: Wed May 11, 2011 8:59 pm
Zip Code: 39154
Tractors Owned: 1969 Farmall Cub
1952 Cub
1942 Farmall H
Location: Raymond, MS

Re: Rear Wheel Weights

Postby tmays » Tue Dec 22, 2015 9:37 am

Several ways have been posted, and they are all good ways. I like to roll tractor till a mounting hole is straight up. I slide long metal rod through weight. Lift weight and slide rod through hole on wheel. Have to have bolts handy. Doesn't take much to hold it there once it's there. Of course, this method requires lifting weight. You could start with weight already at height needed. I like this method because it's quick
Thomas

User avatar
gitractorman
10+ Years
10+ Years
Posts: 2678
Joined: Mon Oct 24, 2005 11:35 am
Zip Code: 14072
eBay ID: toysforjake
Tractors Owned: Lots of Cub Cadets!
1951 Farmall Cub
1977 IH Cub
1966 IH Cub
1965 IH Lo Boy
1964 IH Lo Boy
1949 Farmall Cub
Several IH 154 Lo Boys
1979 IH 184 Lo Boy
Simplicity 4416 Sovereign
Simplicity Conquest
Simplicity Legacy 4x4 Diesel
Mitsubishi MT180D 4x4 Diesel
Circle of Safety: Y
Location: Grand Island, NY

Re: Rear Wheel Weights

Postby gitractorman » Tue Dec 22, 2015 9:46 am

I figured out years ago. Set the rear wheels so the lugs are positioned like in your photo below (only rotated so the opening is exactly on the bottom), where there is space between the wheel and rim at the bottom. Then take a 2x4 about 4-feet long, set it on the rim (silver part, I lay a towel on it first), then stand the weight up on the 2x4 where the notch is cut out of the side of the weight. The weight will stand there pretty easily and not want to roll away because of the notch in the weight. Then, with one hand on the top of the weight (to steady it), and the other on the end of the 2x4, you can slide the weight towards the rim and lift it into place at the same time, using the 2x4 as a lever. It's actually pretty easy to do this way. Then, you can hold the weight against the wheel with the 2x4, just by lifting up a little bit on the 2x4. The weight will stay cupped to the wheel, so you can now take your hand off the top of the weight, and use it to put the two top bolts through from the back of the rim. With the bolts through from the back, you can use the same hand to start the nuts on those two and bring them up snug. Repeat for the bottom two bolts. Then you can pull out the 2x4 and tighten up all the nuts.

I wish I had taken photos because it's hard to explain, but super simple once you see it done. I'm convinced that the weights were specifically designed to be installed this way, because there's no other reason for the cutout on the outside of the weight.

Cub Cadets 682, 1811, 1864, Simplicity Legacy XL 4x4 Diesel with FEL, 60" mower, 50" Tiller

Bob McCarty
Team Cub
Team Cub
Posts: 11817
Joined: Tue May 25, 2004 8:02 pm
Zip Code: 80501
Tractors Owned: Cubs, MH Pony, Shaw, Allis G, 1934 Silver King, JD LA and LI, Gibson D, David Bradley Tri-Trac
Circle of Safety: Y
Location: CO, Longmont

Re: Rear Wheel Weights

Postby Bob McCarty » Tue Dec 22, 2015 9:57 am

Here's another idea from the "how to" forum: viewtopic.php?f=143&t=29875 I've done it by making a "ramp" by stacking 2 x 6's to the right height and rolling the weight up the ramp.

Bob
"We don't need to think more,
we need to think differently."
-Albert Einstein

User avatar
Bill V in Md
10+ Years
10+ Years
Posts: 1109
Joined: Sun Feb 02, 2003 6:51 pm
Zip Code: 21228
Tractors Owned: 1948 Farmall Cub
LT1045 Cub Cadet
Circle of Safety: Y
Location: MD, Catonsville
Contact:

Re: Rear Wheel Weights

Postby Bill V in Md » Tue Dec 22, 2015 11:07 am

The easiest way that I have found is to use an engine hoist (if you have one or something similar). It does an excellent job of protecting the paint. Just make sure your bolts are long enough to transfer the weight from the lift to the wheel. See photos:
photo 1_small.JPG
photo 2_small.JPG
Bill VanHooser
Cub 54 Blade, Cub 193 Moldboard Plow, Cub 28A Disc Harrow
Circle of Safety

tieman
5+ Years
5+ Years
Posts: 51
Joined: Tue Sep 29, 2015 1:50 pm
Zip Code: 63755

Re: Rear Wheel Weights

Postby tieman » Tue Dec 22, 2015 11:35 am

These are all great ideas...I knew I came to the right place. Thank you all.

cub.bub
5+ Years
5+ Years
Posts: 284
Joined: Wed Jul 16, 2014 8:07 am
Zip Code: 46628
Tractors Owned: 55 cub, 54a blade, (2) woods L59 mower...Allis Chalmers CA
1965 International 140, 60" grader blade.
Circle of Safety: Y
Location: Northern Indiana

Re: Rear Wheel Weights

Postby cub.bub » Tue Dec 22, 2015 11:58 am

ALL Great Ideas......but you might want some touch up paint handy too. It never fails, no matter how careful you are. :oops:
Good luck.
Bruce

Jim Becker
Team Cub
Team Cub
Posts: 17214
Joined: Sun Feb 02, 2003 2:59 pm
Zip Code: 55319
Circle of Safety: Y
Location: MN

Re: Rear Wheel Weights

Postby Jim Becker » Tue Dec 22, 2015 12:29 pm

gitractorman wrote:. . . no other reason for the cutout on the outside of the weight.

Clearance to access the valve stem. Be sure to mount the weights with the notch in line with the stem.

I made a hook out of a short piece of rebar. One end slides into a bolt hole on the weight and the other into a link of a piece of chain. I ground the ribs off the weight end to be a little easier on the paint. An engine hoist or overhead hoist can do the lifting.


Matt Kirsch
10+ Years
10+ Years
Posts: 4945
Joined: Tue Jun 08, 2004 3:04 pm
Zip Code: 14559
Circle of Safety: Y
Location: Rochester, NY

Re: Rear Wheel Weights

Postby Matt Kirsch » Tue Dec 22, 2015 2:12 pm

I get fully-threaded carriage bolts, and nut them on to the wheel centers so they are sticking out like studs. Then I carefully slide the weight on to the studs. Add nuts and washers.

Give your paint at least a month to harden unless you absolutely need the tractor. Otherwise the wheel weight will sink into the still-soft paint and glue itself in place. It won't be evident until you go to remove the weights.

Garvin Gatewood
10+ Years
10+ Years
Posts: 362
Joined: Sun Feb 02, 2003 10:16 pm
Location: Rector, Arkansas

Re: Rear Wheel Weights

Postby Garvin Gatewood » Tue Dec 22, 2015 2:24 pm

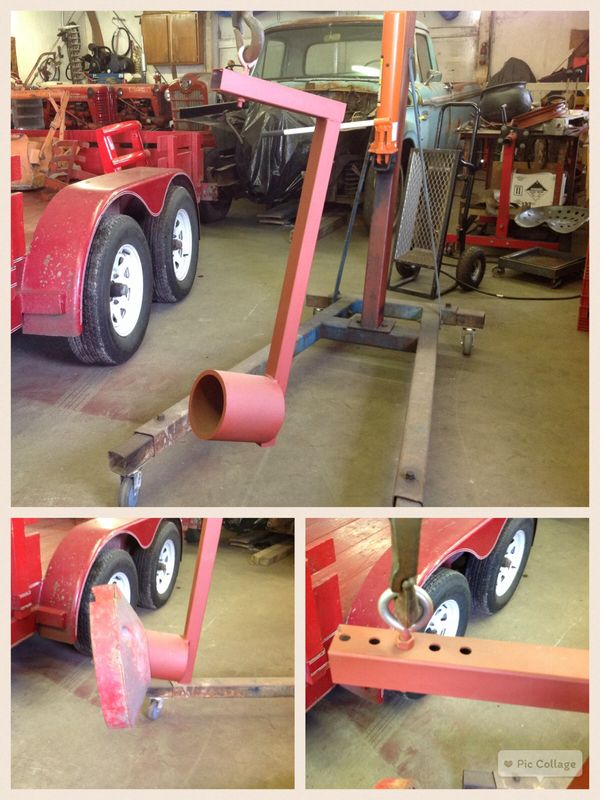

I made this tool to install my wheel weights. The tilt can be adjusted by changing the position of the bolt.
Eight Cubs-finally got a '57.

User avatar
John *.?-!.* cub owner
Cub Pro
Cub Pro
Posts: 23701
Joined: Sun Feb 02, 2003 2:09 pm
Zip Code: 63664
Tractors Owned: 47, 48, 49 cub plus Wagner loader & other attachments. 41 Farmall H.
Location: Mo, Potosi

Re: Rear Wheel Weights

Postby John *.?-!.* cub owner » Tue Dec 22, 2015 5:27 pm

Here is a picture of a rig I made to use with an engine hoist. Note, it is lifting 2 weights in the picture. I made it tall enough and deep enough to use for the weights on my H also,

2 weights.jpg
If you are not part of the solution,
you are part of the problem!!!

EarlyCub49
10+ Years
10+ Years
Posts: 821
Joined: Wed Aug 18, 2010 3:21 pm
Zip Code: 18036
Tractors Owned: Presently
1949 Cub
1953 Cub
Kubota Zero turn
Circle of Safety: Y
Location: Coopersburg, PA

Re: Rear Wheel Weights

Postby EarlyCub49 » Tue Dec 22, 2015 7:44 pm

I like Barnyard's method installing wheel weights, he uses a 2x6 with holes drilled at the proper height of the hole in the wheel and bolts all thread to the 2x6 lays the wheel weight on the 2x6 with the bolted stud elevated enough to pickup the 2x6 then raises it up and inserts the bolts from the wheel to the wheel weight. this method worked for me. Thanks Bill.
Maybe he will be along I'm not sure but maybe there is a video he made or a measurement somewhere floating around

Bruce T.

User avatar
dgrapes59
10+ Years
10+ Years
Posts: 3724
Joined: Sun Jul 13, 2008 10:05 pm
Zip Code: 45067
Tractors Owned: 1951 Cub, 2-1955 Loboy w FH, a few plows, discs, mowers, blades, carrier & such
Several '61 CC Originals, Cub Cadet 100, several 102's & 122's, 124, various CC options & implements, #1Trailer, 1963 Springfield, JD 770, Ford 8N
Circle of Safety: Y
Location: OH, Trenton

Re: Rear Wheel Weights

Postby dgrapes59 » Tue Dec 22, 2015 7:56 pm

EarlyCub49 wrote:I like Barnyard's method installing wheel weights, he uses a 2x6 with holes drilled at the proper height of the hole in the wheel and bolts all thread to the 2x6 lays the wheel weight on the 2x6 with the bolted stud elevated enough to pickup the 2x6 then raises it up and inserts the bolts from the wheel to the wheel weight. this method worked for me. Thanks Bill.
Maybe he will be along I'm not sure but maybe there is a video he made or a measurement somewhere floating around

Bruce T.


I thought Barnyard's method was getting me to lift it up and he puts the nuts on the bolts. .... :wink:
David

DRaymond
5+ Years
5+ Years
Posts: 119
Joined: Thu Dec 03, 2015 6:28 pm
Zip Code: 99223
Tractors Owned: 1948 FCub 13747 "Marie"
1948 FCub 16109 "Lizzie"
1948 FCub 44181 "Gussie"
Cub-54A Leveling & Grader Blade
Cub-22 Mower
Cub-193 Moldboard Plow
Circle of Safety: Y
Location: Spokane Washington

Re: Rear Wheel Weights

Postby DRaymond » Wed Dec 23, 2015 2:59 pm

The method using the 1/2" rod inserted into the 2x8 worked for me and was fast, fast, fast.
DT Raymond
Spokane, WA
48 FCUB - Marie
48 FCUB - Lissie
48 FCUB - Gussie
Cub-193 Moldboard Plow
Cub-22 Mower
Cub-54 Leveling & Grader Blade

User avatar
Barnyard
Team Cub
Team Cub
Posts: 24233
Joined: Tue Aug 07, 2007 3:39 pm
Zip Code: 45030
Tractors Owned: At This Time
40 Farmall Cubs (Round Hood)
2 Farmall Cub (Square Hood)
2 IH Cubs (Square Hood)
5 Lo-Boys (Round Hood)
2 Lo-Boys (Square Hood)
2 Farmall 404's
1 Farmall H
1 Ferguson 20
1 Cub Cadet 125
1 Kubota B-7100
Circle of Safety: Y
Location: OH, New Haven (Hamilton County)
Contact:

Re: Rear Wheel Weights

Postby Barnyard » Wed Dec 23, 2015 3:05 pm

dgrapes59 wrote:I thought Barnyard's method was getting me to lift it up and he puts the nuts on the bolts. ....

Yes, that is definitely my method. I find that easier than lifting a board. Actually the board method is in the How To forum, but not my idea.
