I'm about to finish the rebuild/brake replacement of the right final on my '56 Cub, BOB. The Rear Axle Oil Seal with Retainer was badly damaged and the seal itself was falling apart. I think someone at some time tried to remove the retainer without using a bearing splitter to get the bearing off first.

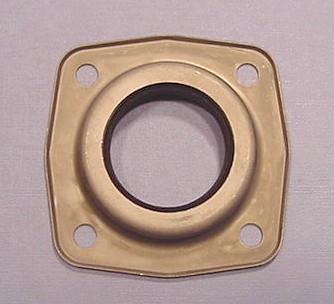

In any case, I chose to replace the retainer with the new seal, available as a unit from TM Tractors:
http://www.tmtractor.com/new/fr/393fp.htm
The installation went fine, but as I was reinstalling the axle with a new gasket, I remembered that there is an oil hole at the bottom of the casting (right side of the photo) where the seal sits:
And here is a photo of another one I rebuilt:
The old retainer had a "divot" in it to allow oil to pass through to lubricate (I think) the bearing. You can see it in the picture of the old retainer:
There were "divots" on each of 4 sides, so that there would be one over the hole no matter what direction the retainer was installed. (These were not the "stakes" that held the seal in. You can see one of those just above the "divot")
My question is, with no "divot" in the new retainer, will there be proper lubrication?
This site uses cookies to maintain login information on FarmallCub.Com. Click the X in the banner upper right corner to close this notice. For more information on our privacy policy, visit this link: Privacy Policy
NEW REGISTERED MEMBERS: Be sure to check your SPAM/JUNK folders for the activation email.
Aftermarket Axle Seal Retainer
Forum rules
Notice: For sale and wanted posts are not allowed in this forum. Please use our free classifieds or one of our site sponsors for your tractor and parts needs.
Notice: For sale and wanted posts are not allowed in this forum. Please use our free classifieds or one of our site sponsors for your tractor and parts needs.
- Dale Finch
- 10+ Years
- Posts: 6634
- Joined: Tue Apr 27, 2010 11:34 am
- Zip Code: 27517
- Tractors Owned: '51 Cub #140966 "Bruno" with Woods 59 mower
'55 Cub #187541 "Betty" with Fast Hitch
'55 Cub #190482 "Ben" with Woods 42 mower
'55 Cub #191739 "Bertha" with Woods 42 mower
'56 Cub #194370 "Boris" with Mott Flail mower - Circle of Safety: Y
- Location: NC, Chapel Hill
-
- 10+ Years
- Posts: 3034
- Joined: Wed May 31, 2006 12:09 pm
- Zip Code: 74070
- Circle of Safety: Y
- Location: OK, Skiatook
Re: Aftermarket Axle Seal Retainer
Lubrication will come from the final via the back side of the bearing. The hole in the casting is for draining lube back into the final to prevent oil from pooling behind the seal. As for the divots, can't answer that part, however they should have no effect on bearing lubrication.
- Glen
- 10+ Years
- Posts: 6095
- Joined: Mon Mar 19, 2012 7:33 pm
- Zip Code: 00000
- Tractors Owned: 1956 Farmall Cub with Fast Hitch, F-11 plow, Disc, Cultivator, Cub-22 mower
- Circle of Safety: Y
- Location: Wa.
Re: Aftermarket Axle Seal Retainer
Hi,
It's hard to see for sure in your pics, try setting the 2 retainers side by side, looking at the inside of them. It looks like on the new one they have increased the bend in the metal where the divots are on the old one, so there would be no need for the divots. The bend looks like it is different than the old one. I'm not sure without being there.
It's hard to see for sure in your pics, try setting the 2 retainers side by side, looking at the inside of them. It looks like on the new one they have increased the bend in the metal where the divots are on the old one, so there would be no need for the divots. The bend looks like it is different than the old one. I'm not sure without being there.
- ricky racer
- 10+ Years
- Posts: 6303
- Joined: Wed Sep 12, 2007 8:40 pm
- Zip Code: 49120
- Circle of Safety: Y
- Location: Niles / Buchanan, Michigan
Re: Aftermarket Axle Seal Retainer
Dale, I agree with Bill E Bob in the fact that the hole is a return hole for the lube to return back into the housing. That hole will keep oil from pooling behind the seal reducing its chance of leaking. Check the radius as Glen suggested. If the seal retainer does in fact cover the return hole, I'd suggest using a Dremal tool or small rat tail file and stretch the front of the hole up to the bearing race so the oil can drain back into the housing. Make sure any gasket is also notched in that location. Let us know what you find.
1929 Farmall Regular
1935 John Deere B
1937 John Deere A
1941 John Deere H
1952 John Deere B
1953 Farmall Cub
1935 John Deere B
1937 John Deere A
1941 John Deere H
1952 John Deere B
1953 Farmall Cub
- Dale Finch
- 10+ Years
- Posts: 6634
- Joined: Tue Apr 27, 2010 11:34 am
- Zip Code: 27517
- Tractors Owned: '51 Cub #140966 "Bruno" with Woods 59 mower
'55 Cub #187541 "Betty" with Fast Hitch
'55 Cub #190482 "Ben" with Woods 42 mower
'55 Cub #191739 "Bertha" with Woods 42 mower
'56 Cub #194370 "Boris" with Mott Flail mower - Circle of Safety: Y
- Location: NC, Chapel Hill
Re: Aftermarket Axle Seal Retainer
The gasket IS still notched (all 4 sides so orientation is not a problem). You may be on the right track, Ben, in that the radius of the retainer allows fluid past the edge of the retainer...I will compare the 2 again.
And Bill E Bob, it DOES make more sense that the hole is a return/drain...gee, being on the bottom should have been a small clue, right?!!!
And Bill E Bob, it DOES make more sense that the hole is a return/drain...gee, being on the bottom should have been a small clue, right?!!!
