Steering Housing Mod

Postby Sailor » Tue May 17, 2016 3:09 am


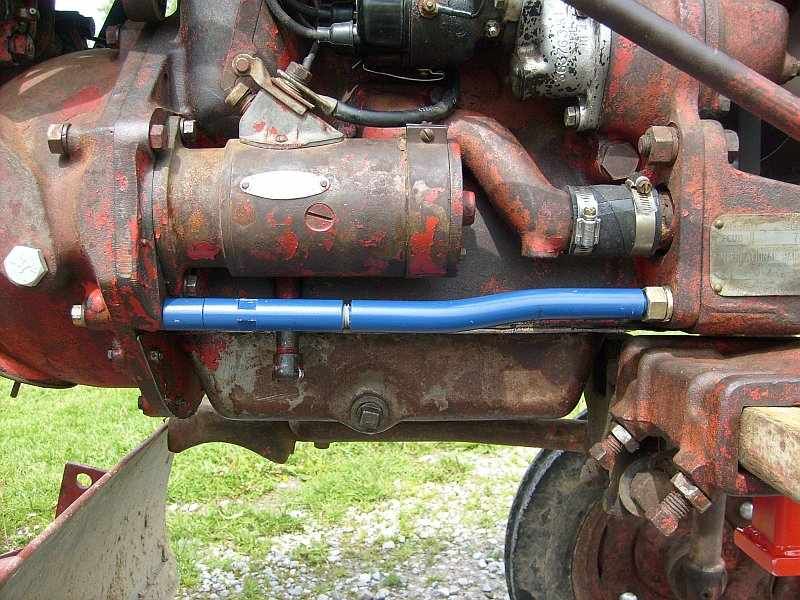

After installing the housing, I noticed that the two bolt holes were different sizes. The one on the left is a 3/4" with course threads. The hole has been bored so that the full surface of the bolt end makes contact with the tool bar. The bolt on the right looks to require a 5/8" bolt with FINE threads. The hole was not bored entirely out, so this bolt will have to have the end tapered to make contact with the tool bar.

Am I correct in assuming that the steering gear housing did not come off the assembly line like this?

Larry
1948 Cub
Cub-22 Mower
Cub-54 Leveling & Grading Blade
Cub-144 Cultivator
Cub-189 Moldboard Plow (direct-Connected, One Bottom, Two-way)
Woods 59 Mower

User avatar
Shane Nelson
501 Club
501 Club
Posts: 3078
Joined: Wed Nov 22, 2017 6:24 am
Zip Code: 27284
Tractors Owned: .
1947 Circle Cub #1447 (Arnold)
195? Cub
1970 International 140 (Norman)
1949 John Deere A
1972 Schramm Pneumatractor
1993 Ford 4630 W/Loader
1965 John Deere 110
1961 Cub Cadet Original
Circle of Safety: Y
Location: Oak Ridge, N.C.

Re: Steering Housing Mod

Postby Shane Nelson » Tue May 17, 2016 5:54 am

I am pretty sure both of our Cubs are 5/8 coarse threads on both holes. I will have to check to be sure.
Last edited by Shane Nelson on Tue May 17, 2016 6:54 am, edited 1 time in total.
God is good, all the time!
Every home is a school, what are you teaching?
Make prayer a 1st priority, instead of a last resort.
Circle of Safety

User avatar
Stanton
Team Cub
Team Cub
Posts: 4907
Joined: Mon Jun 22, 2009 6:56 am
Zip Code: 64070
Tractors Owned: 1942 Farmall AV, serial #87025
1947 Farmall Circle Cub, serial #2116
1948 Farmall Cub, serial #46066
Circle of Safety: Y
Location: Lone Jack, MO

Re: Steering Housing Mod

Postby Stanton » Tue May 17, 2016 6:42 am

Can't remember exact size either, but do know they're the same size on both my Cubs.
Stanton
Image Circle of Safety

User avatar
Barnyard
Team Cub
Team Cub
Posts: 21246
Joined: Tue Aug 07, 2007 3:39 pm
Zip Code: 45030
Tractors Owned: At This Time
40 Farmall Cubs (Round Hood)
2 Farmall Cub (Square Hood)
2 IH Cubs (Square Hood)
5 Lo-Boys (Round Hood)
2 Lo-Boys (Square Hood)
2 Farmall 404's
1 Farmall H
1 Ferguson 20
1 Cub Cadet 125
1 Kubota B-7100
Circle of Safety: Y
Location: OH, New Haven (Hamilton County)

Re: Steering Housing Mod

Postby Barnyard » Tue May 17, 2016 9:05 am

Sailor wrote:Am I correct in assuming that the steering gear housing did not come off the assembly line like this?

I would say you are correct in assuming that. Quite possible somebody stripped the original threads and drilled it the next size up.
It is common sense to take a method and try it. If it fails, admit it frankly and try another. But above all, try something.
- Franklin D. Roosevelt -

Circle of Safety

tst
5+ Years
5+ Years
Posts: 2915
Joined: Tue Jan 12, 2010 2:08 pm
Zip Code: 12514
Circle of Safety: Y

Re: Steering Housing Mod

Postby tst » Tue May 17, 2016 9:37 am

thread size should be 5/8 11, you can heilacoil the holes to the correct size

User avatar
John *.?-!.* cub owner
Team Cub Guide
Team Cub Guide
Posts: 22798
Joined: Sun Feb 02, 2003 2:09 pm
Zip Code: 63664
Tractors Owned: 47, 48, 49 cub plus Wagner loader & other attachments. 41 Farmall H.
Location: Mo, Potosi

Re: Steering Housing Mod

Postby John *.?-!.* cub owner » Tue May 17, 2016 11:05 am

I believe those holes were intended for hardened set screws to hold the implement bars in place. Overtime a standard bolt tends to mushroom on the end and creates a difficulty in being removed. Which is probably the reason the one hole is now larger.
If you are not part of the solution,
you are part of the problem!!!

User avatar
Sailor
Cub Star!!
Cub Star!!
Posts: 353
Joined: Fri Mar 28, 2014 7:59 pm
Zip Code: 42261
Tractors Owned: 1948 Farmall Cub
Ser.# 16812
Circle of Safety: Y
Location: KY, Morgantown

Re: Steering Housing Mod

Postby Sailor » Tue May 17, 2016 11:59 am

Since I've never attempted a heilacoil procedure, I'll save that job for the next Cub Fest where I'll have some adult supervision. :wink:

John, what do you mean when you say they should be "hardened set screws". Is that something special I need to buy?

Thanks for all your help, Guys.
1948 Cub
Cub-22 Mower
Cub-54 Leveling & Grading Blade
Cub-144 Cultivator
Cub-189 Moldboard Plow (direct-Connected, One Bottom, Two-way)
Woods 59 Mower

User avatar
Don McCombs
Team Cub Mentor
Team Cub Mentor
Posts: 13369
Joined: Mon Feb 03, 2003 6:45 am
Zip Code: 21550
Tractors Owned: "1950 Something" Farmall Cub
1957 Farmall Cub w/FH
1977 International Cub w/FH
1978 International Cub
1948 Farmall Super A
Circle of Safety: Y
Location: MD, Deep Creek Lake

Re: Steering Housing Mod

Postby Don McCombs » Tue May 17, 2016 12:12 pm

Don McCombs
MD, Deep Creek Lake

Proud Member of Maryland Chapter 39

Clownfish
Cub Star!!
Cub Star!!
Posts: 419
Joined: Sat Dec 07, 2013 12:36 pm
Zip Code: 36578
Tractors Owned: 49 Farmall Cub
1959 Farmall Cub
2005 Massey Ferguson 1528
Circle of Safety: Y
Location: AL, Stapleton

Re: Steering Housing Mod

Postby Clownfish » Tue May 17, 2016 1:10 pm

If you have a hole tapped for ¾-10 is it ok to use a 5/8-11 Heli-Coil? If I am reading the charts correctly , the drill size for the Heli-Coil is 21/32(.6562) which means that all of the old ¾” threads would not be drilled out and the tap for the Heli-Coil would be cutting new threads across the old ¾” threads. I recently had this same situation on an implement bolt hole in a final. Since I did not know if the Heli-Coil would hold in this situation I used a solid insert which uses a 49/64”(.7656) drill and removes all of the ¾” threads.

User avatar
Shane Nelson
501 Club
501 Club
Posts: 3078
Joined: Wed Nov 22, 2017 6:24 am
Zip Code: 27284
Tractors Owned: .
1947 Circle Cub #1447 (Arnold)
195? Cub
1970 International 140 (Norman)
1949 John Deere A
1972 Schramm Pneumatractor
1993 Ford 4630 W/Loader
1965 John Deere 110
1961 Cub Cadet Original
Circle of Safety: Y
Location: Oak Ridge, N.C.

Re: Steering Housing Mod

Postby Shane Nelson » Tue May 17, 2016 1:17 pm

http://www.mcmaster.com/#90245A038

That one is a 5/8-11 internal thread with 7/8-14 outer thread drill bit size is 53/64 (.828). Helicoils need to be banned in the U.S. is my thoughts on them, lol. I never have liked them and have had great success with threaded inserts.
Last edited by Shane Nelson on Tue May 17, 2016 1:19 pm, edited 1 time in total.
God is good, all the time!
Every home is a school, what are you teaching?
Make prayer a 1st priority, instead of a last resort.
Circle of Safety

User avatar
John *.?-!.* cub owner
Team Cub Guide
Team Cub Guide
Posts: 22798
Joined: Sun Feb 02, 2003 2:09 pm
Zip Code: 63664
Tractors Owned: 47, 48, 49 cub plus Wagner loader & other attachments. 41 Farmall H.
Location: Mo, Potosi

Re: Steering Housing Mod

Postby John *.?-!.* cub owner » Tue May 17, 2016 1:18 pm

Sailor wrote:Since I've never attempted a heilacoil procedure, I'll save that job for the next Cub Fest where I'll have some adult supervision. :wink:

John, what do you mean when you say they should be "hardened set screws". Is that something special I need to buy?

Thanks for all your help, Guys.

As Don suggested, or get a grade 8 bolt and round the end a little with a grinder. The main thing is to keep the bolt from mush rooming when it is tightened against the tool bar.
If you are not part of the solution,
you are part of the problem!!!

Jim Becker
Team Cub
Team Cub
Posts: 13688
Joined: Sun Feb 02, 2003 2:59 pm
Zip Code: 55319
Circle of Safety: Y
Location: MN

Re: Steering Housing Mod

Postby Jim Becker » Tue May 17, 2016 1:27 pm

Don McCombs wrote:http://www.mcmaster.com/#91418a802/=12g9wtp

or

http://www.mcmaster.com/#92308a811/=12g9xuq

The originals were cup point, like the second option. IH wasn't consistent in use of the setscrews. A lot of the time, they just called for a hex-head capscrew. Some implements had setscrews packed with the hardware.

User avatar
Glen
5+ Years
5+ Years
Posts: 2713
Joined: Mon Mar 19, 2012 7:33 pm
Zip Code: 00000
Tractors Owned: 1956 Farmall Cub with Fast Hitch, F-11 plow, Disc, Cultivator, Cub-22 mower
Circle of Safety: Y
Location: Wa.

Re: Steering Housing Mod

Postby Glen » Tue May 17, 2016 7:52 pm

Hi Larry,

Here are pics of the setscrew I use for my Cub 22 mower, it is for the standard size hole, and has the hollow point. They dig into the square bar, so it holds it in place. It needs a lock nut to tighten against the housing to keep the setscrew from loosening during use.
After mowing for 20 minutes, check it and re-tighten it again, the point works into the bar some and the bar loosens in the square hole. Tighten it enough times that it remains tight. It is not fun if the bar falls out of the square hole during mowing from the setscrew being loose.
If you can find a 3/4 inch setscrew, that would work if you don't want to change the hole in the casting, if the threads in the casting are good. :)
Attachments
set screw.jpg
set screw 2.jpg
set screw 3.jpg

User avatar
Sailor
Cub Star!!
Cub Star!!
Posts: 353
Joined: Fri Mar 28, 2014 7:59 pm
Zip Code: 42261
Tractors Owned: 1948 Farmall Cub
Ser.# 16812
Circle of Safety: Y
Location: KY, Morgantown

Re: Steering Housing Mod

Postby Sailor » Fri May 20, 2016 9:02 am

Should I use a lock washer with the lock nut?

Thanks Glen, great information.
1948 Cub
Cub-22 Mower
Cub-54 Leveling & Grading Blade
Cub-144 Cultivator
Cub-189 Moldboard Plow (direct-Connected, One Bottom, Two-way)
Woods 59 Mower

User avatar
Trent M
Cub Pro
Cub Pro
Posts: 3337
Joined: Wed Aug 09, 2006 6:21 pm
Zip Code: 62859
Circle of Safety: Y
Location: Illinois Southern

Re: Steering Housing Mod

Postby Trent M » Fri May 20, 2016 9:13 am

Here are the original set screws from my '49, they look just like Glen's. No lock washer and the lock nuts are thinner than a regular nut on mine, but I'm sure that doesn't matter for practical useful purposes.

Trent McPeak
