1947 Console/Dash
Someone has modified the console/dash on my 1947 Cub. Could someone send me a picture or link to what the OEM console was for that year?
- Barnyard
- Team Cub
- Posts: 24271
- Joined: Tue Aug 07, 2007 3:39 pm
- Zip Code: 45030
- Tractors Owned: At This Time
40 Farmall Cubs (Round Hood)
2 Farmall Cub (Square Hood)
2 IH Cubs (Square Hood)
5 Lo-Boys (Round Hood)
2 Lo-Boys (Square Hood)
2 Farmall 404's
1 Farmall H
1 Ferguson 20
1 Cub Cadet 125
1 Kubota B-7100 - Circle of Safety: Y
- Location: OH, New Haven (Hamilton County)
- Contact:
Re: 1947 Console/Dash

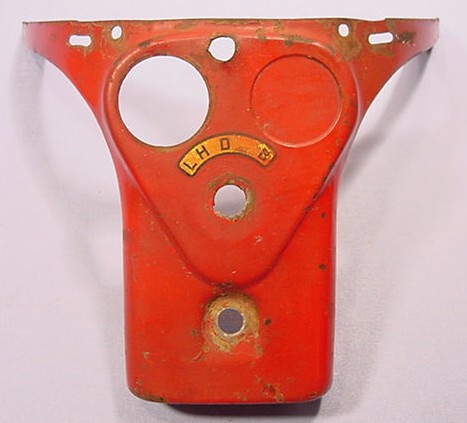

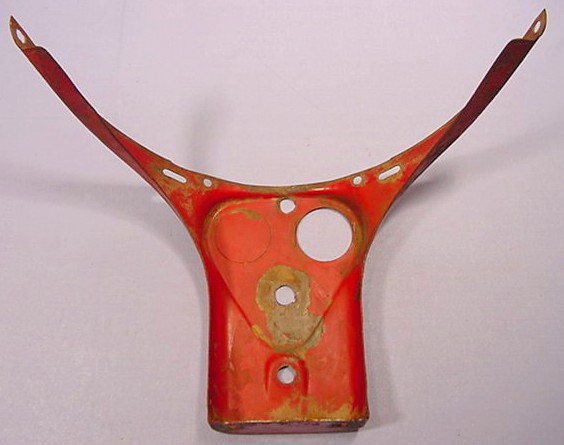

Here is the early style. Are you sure yours is a 47. Could it be a 48 with the trimmed dash? What is your serial number?
Image from TM Tractor parts
Image from TM Tractor parts
There are two ways to get enough Cubs. One is to continue to accumulate more and more. The other is to desire less.
- Glen
- 10+ Years
- Posts: 6146
- Joined: Mon Mar 19, 2012 7:33 pm
- Zip Code: 00000
- Tractors Owned: 1956 Farmall Cub with Fast Hitch, F-11 plow, Disc, Cultivator, Cub-22 mower
- Circle of Safety: Y
- Location: Wa.
Re: 1947 Console/Dash
Hi,
Here is a page from the 1947 Cub owner's manual showing the dash. It should have the long sides, like Barnyard's pics above, if it's a 1947 Cub, unless someone has changed it.
http://farmallcub.com/rudi_cub/www.clea ... age-04.jpg
Here is a page from the 1947 Cub owner's manual showing the dash. It should have the long sides, like Barnyard's pics above, if it's a 1947 Cub, unless someone has changed it.
http://farmallcub.com/rudi_cub/www.clea ... age-04.jpg
-
- 5+ Years
- Posts: 104
- Joined: Sun Mar 05, 2017 3:18 pm
- Zip Code: 22406
- Tractors Owned: 1949
Re: 1947 Console/Dash
SN 10294 right side name plate
-
- 5+ Years
- Posts: 104
- Joined: Sun Mar 05, 2017 3:18 pm
- Zip Code: 22406
- Tractors Owned: 1949
Re: 1947 Console/Dash
I have the correct console but the switches have been changed out, I would like a picture of the console with the OEM switches.
I will be going to a Cub show as soon as I can to gain more knowledge about my Cub.
I will be going to a Cub show as soon as I can to gain more knowledge about my Cub.
- Glen
- 10+ Years
- Posts: 6146
- Joined: Mon Mar 19, 2012 7:33 pm
- Zip Code: 00000
- Tractors Owned: 1956 Farmall Cub with Fast Hitch, F-11 plow, Disc, Cultivator, Cub-22 mower
- Circle of Safety: Y
- Location: Wa.
Re: 1947 Console/Dash
Hi,
The owner's manual pic I posted above shows the switches and ammeter. It shows the 4 position combination switch, it works the lights, and the high or low charge for the generator. It shows the push, pull, ignition switch also.
Here is a page from the owner's manual of behind the dash, showing the switches and wiring.
Below are pics from TM Tractor of the original 4 position switch, and ignition switch used with a magneto.
http://farmallcub.com/rudi_cub/www.clea ... age-34.jpg
http://www.tmtractor.com/tm-tractor/gel ... ht_001.htm
http://www.tmtractor.com/tm-tractor/gel ... ng_001.htm
The owner's manual pic I posted above shows the switches and ammeter. It shows the 4 position combination switch, it works the lights, and the high or low charge for the generator. It shows the push, pull, ignition switch also.
Here is a page from the owner's manual of behind the dash, showing the switches and wiring.
Below are pics from TM Tractor of the original 4 position switch, and ignition switch used with a magneto.
http://farmallcub.com/rudi_cub/www.clea ... age-34.jpg
http://www.tmtractor.com/tm-tractor/gel ... ht_001.htm
http://www.tmtractor.com/tm-tractor/gel ... ng_001.htm
Last edited by Glen on Fri Apr 07, 2017 8:40 pm, edited 1 time in total.
-
- 10+ Years
- Posts: 4991
- Joined: Fri Oct 29, 2010 11:34 pm
- Zip Code: 36558
- Tractors Owned: Cubs: (3)'49's, (1 is for parts), (1)'57 IH Cub LoBoy w/FH, (2)154 Number Series Loboys, (1 is for parts), '76 Longstripe w/FH, Mowers: C-22, Bush Hog 412, Pennington 59, Woods RM42CF, Woods 42, assorted FCub plows, planters, discs, etc. OTHERS: '49 AC B & Ind. Sickle mower, '61 AC D12 Ser 2, '52 8N, '56 Ferguson 35 Deluxe, '47 & '49 Avery V, '53 MM BG (offset), '51 JD M (regular), '56 JD 420C, with Blade and fire plow, '85 JD 850 (Yanmar) w/72" belly mower, '76? Yanmar 2TR15 1500 & Bush Hog SQ42S-2 mower, '78? FORD Dexta, '86 FORD LGT14D & 48" Mower, (2)Cub Cadets & Mowers (MTD), (4) Sears Surburban's, other MTD mowers, Jeeps & other misc. "treasures"
- Circle of Safety: Y
- Location: AL (Southwest)
Re: 1947 Console/Dash
Is this the same tractor referenced in your post about the one wire alternator? If so, the ignition kill switch for the magneto must be changed for a battery ignition type switch if you are using an external coil or have changed to a battery/distributor ignition. I looked back through your earlier posts and not sure what you have or how it's wired.
Stan in LA (lower AL)
USAF & Reserves, Reg ARMY, ARMY NG (AL)
USAF & Reserves, Reg ARMY, ARMY NG (AL)
-
- 5+ Years
- Posts: 104
- Joined: Sun Mar 05, 2017 3:18 pm
- Zip Code: 22406
- Tractors Owned: 1949
Re: 1947 Console/Dash
No coil, plug wires run from magneto to spark plugs. He had a switch toe energize the charge from the alternator, a key switch for off/on and a pull switch for the lights. I would like to return it to the original configuration.
-
- 10+ Years
- Posts: 4991
- Joined: Fri Oct 29, 2010 11:34 pm
- Zip Code: 36558
- Tractors Owned: Cubs: (3)'49's, (1 is for parts), (1)'57 IH Cub LoBoy w/FH, (2)154 Number Series Loboys, (1 is for parts), '76 Longstripe w/FH, Mowers: C-22, Bush Hog 412, Pennington 59, Woods RM42CF, Woods 42, assorted FCub plows, planters, discs, etc. OTHERS: '49 AC B & Ind. Sickle mower, '61 AC D12 Ser 2, '52 8N, '56 Ferguson 35 Deluxe, '47 & '49 Avery V, '53 MM BG (offset), '51 JD M (regular), '56 JD 420C, with Blade and fire plow, '85 JD 850 (Yanmar) w/72" belly mower, '76? Yanmar 2TR15 1500 & Bush Hog SQ42S-2 mower, '78? FORD Dexta, '86 FORD LGT14D & 48" Mower, (2)Cub Cadets & Mowers (MTD), (4) Sears Surburban's, other MTD mowers, Jeeps & other misc. "treasures"
- Circle of Safety: Y
- Location: AL (Southwest)
Re: 1947 Console/Dash
So you plan to keep the alternator and return the dash/switches to original? TM Tractor Parts has the OEM type kill switch for the magneto and the 4 position light switch. You'll have to find a place for a switch for the alternator wire to keep the battery from discharging when the engine is not running.rstoots wrote:No coil, plug wires run from magneto to spark plugs. He had a switch toe energize the charge from the alternator, a key switch for off/on and a pull switch for the lights. I would like to return it to the original configuration.
Stan in LA (lower AL)
USAF & Reserves, Reg ARMY, ARMY NG (AL)
USAF & Reserves, Reg ARMY, ARMY NG (AL)
-
- 5+ Years
- Posts: 104
- Joined: Sun Mar 05, 2017 3:18 pm
- Zip Code: 22406
- Tractors Owned: 1949
Re: 1947 Console/Dash
Looks like I have the correct dash shape but switches are wrong. Yes I would like to return to OEM, can the alternator wire go through the ignition switch?
-
- 10+ Years
- Posts: 4991
- Joined: Fri Oct 29, 2010 11:34 pm
- Zip Code: 36558
- Tractors Owned: Cubs: (3)'49's, (1 is for parts), (1)'57 IH Cub LoBoy w/FH, (2)154 Number Series Loboys, (1 is for parts), '76 Longstripe w/FH, Mowers: C-22, Bush Hog 412, Pennington 59, Woods RM42CF, Woods 42, assorted FCub plows, planters, discs, etc. OTHERS: '49 AC B & Ind. Sickle mower, '61 AC D12 Ser 2, '52 8N, '56 Ferguson 35 Deluxe, '47 & '49 Avery V, '53 MM BG (offset), '51 JD M (regular), '56 JD 420C, with Blade and fire plow, '85 JD 850 (Yanmar) w/72" belly mower, '76? Yanmar 2TR15 1500 & Bush Hog SQ42S-2 mower, '78? FORD Dexta, '86 FORD LGT14D & 48" Mower, (2)Cub Cadets & Mowers (MTD), (4) Sears Surburban's, other MTD mowers, Jeeps & other misc. "treasures"
- Circle of Safety: Y
- Location: AL (Southwest)
Re: 1947 Console/Dash
The OEM ignition switch is a path to ground for the magneto to stop the engine by "grounding" the mag output. It cannot be used for any other purpose. The alternator will have to have a separate, switched wire for power supply/path for its "exciter" input and charging output to the battery. You're dealing with two completely separate electrical circuits.
Stan in LA (lower AL)
USAF & Reserves, Reg ARMY, ARMY NG (AL)
USAF & Reserves, Reg ARMY, ARMY NG (AL)
-
- 5+ Years
- Posts: 104
- Joined: Sun Mar 05, 2017 3:18 pm
- Zip Code: 22406
- Tractors Owned: 1949
Re: 1947 Console/Dash
I am really confused as to what the wiring diagram should look like. I have the 1947 diagram, can you provide a diagram for my system?
-
- 10+ Years
- Posts: 4991
- Joined: Fri Oct 29, 2010 11:34 pm
- Zip Code: 36558
- Tractors Owned: Cubs: (3)'49's, (1 is for parts), (1)'57 IH Cub LoBoy w/FH, (2)154 Number Series Loboys, (1 is for parts), '76 Longstripe w/FH, Mowers: C-22, Bush Hog 412, Pennington 59, Woods RM42CF, Woods 42, assorted FCub plows, planters, discs, etc. OTHERS: '49 AC B & Ind. Sickle mower, '61 AC D12 Ser 2, '52 8N, '56 Ferguson 35 Deluxe, '47 & '49 Avery V, '53 MM BG (offset), '51 JD M (regular), '56 JD 420C, with Blade and fire plow, '85 JD 850 (Yanmar) w/72" belly mower, '76? Yanmar 2TR15 1500 & Bush Hog SQ42S-2 mower, '78? FORD Dexta, '86 FORD LGT14D & 48" Mower, (2)Cub Cadets & Mowers (MTD), (4) Sears Surburban's, other MTD mowers, Jeeps & other misc. "treasures"
- Circle of Safety: Y
- Location: AL (Southwest)
Re: 1947 Console/Dash
Sorry, Can't help with the wiring diagram; maybe the one in your other post will help. Just to explain my previous post, and you probably know already but a true magneto ignition system with hand crank starting is totally independent of any other electrical components on the tractor. This was the original design of the CUB/C60 engine and all that's needed to start and run the engine. The charging system (gen/VR/Alt/wiring harness, etc.) is there only to keep the battery charged to provide power for electrical starting and for lighting (if available). Good Luck. Don't give up. StanstaninlowerAL wrote:The OEM ignition switch is a path to ground for the magneto to stop the engine by "grounding" the mag output. It cannot be used for any other purpose. The alternator will have to have a separate, switched wire for power supply/path for its "exciter" input and charging output to the battery. You're dealing with two completely separate electrical circuits.
