Belly mounting with fast hitch

Postby ddub » Thu Jun 01, 2017 11:10 pm

Hey everyone,

I was wondering what all implements you could mount while keeping your fast hitch on. Does anyone keep their fast hitch on and have a belly mower? I hear the fast hitch mowers are rare... I'd like to start using my cub to mow the lawn, but am torn between a belly mount woods or c-2/3 or flail mower. Does the fast hitch limit mower types due to mounting complications?

Also, I had the opportunity to pick up a belly disk plow. Is it possible to mount the belly disk plow to the cub without taking off the fast hitch? I read the manuals, but am having trouble with the combinations. Thanks!

ddub

SONNY
10+ Years
10+ Years
Posts: 3027
Joined: Thu Nov 09, 2006 11:26 pm
Zip Code: 61722

Re: Belly mounting with fast hitch

Postby SONNY » Thu Jun 01, 2017 11:33 pm

Well-----I took my fast hitch off because I never could find any useful purpose for having the thing under there banging around and dragging on everything!! ----I left the top half on and used it for the makings of my 3-pt. hitch, which I use all the time!!!
Not pos., but I think you must remove it to use the tractor for any mounted equipment!---Some guys think the fast hitch is the greatest thing of all time!---guess it comes down to personal preference on the owners part!! thanks; sonny

User avatar
Glen
5+ Years
5+ Years
Posts: 2509
Joined: Mon Mar 19, 2012 7:33 pm
Zip Code: 00000
Tractors Owned: 1956 Farmall Cub with Fast Hitch, F-11 plow, Disc, Cultivator, Cub-22 mower
Circle of Safety: Y
Location: Wa.

Re: Belly mounting with fast hitch

Postby Glen » Fri Jun 02, 2017 1:32 am

Hi,
Here is an owner's manual for a Woods 42 rotary mower for use with the Fast Hitch, it was the only manual in the group I looked at for use with a Cub with Fast Hitch. :)

http://www.farmallcub.info/galleries/oe ... _Mower.asp

staninlowerAL
5+ Years
5+ Years
Posts: 3377
Joined: Fri Oct 29, 2010 11:34 pm
Zip Code: 36558
Tractors Owned: Cubs: (3)'49's, (1)'52, (1)'57 IH Cub LoBoy w/FH, (1)'72 154 Number Series Loboy, '76 Longstripe w/FH, Mowers: C-22, Bush Hog 412, Pennington 59, Woods RM42CF, Woods 42, assorted FCub plows, planters, discs, etc. OTHERS: '49 AC B & Ind. Sickle mower, '61 AC D12 Ser 2, '52 8N, '56 Ferguson 35 Deluxe, '53 MM BG (offset), (2) '49 Avery V's, '51 JD M (regular), '56 JD 420C, with Blade and fire plow, '85 JD 850 (Yanmar) w/72" belly mower, '76 Yanmar 1500, Sears Surburban's, MTD's, Jeeps & other misc. "treasures"
Circle of Safety: Y
Location: AL (Southwest)

Re: Belly mounting with fast hitch

Postby staninlowerAL » Fri Jun 02, 2017 4:15 am

If you have the correct mule drive you can use a belly mounted mower with no issues. The mule drive must bolt up to the rear of the transmission where the PTO shaft/cover is located. Here's mine on a '57 LoBoy:
FH+mule drive2.JPG
Here's a similar one made for the std FCub.
FH mule drive 4.jpg
FH mowers are also made, might be hard to find one.
mower Woods RM42_1.jpg

iosco cub
5+ Years
5+ Years
Posts: 73
Joined: Mon Jul 09, 2012 12:51 pm
Zip Code: 48730
Tractors Owned: fifty five fast hitch
fifty six cub
Circle of Safety: Y
Location: East Tawas Mi

Re: Belly mounting with fast hitch

Postby iosco cub » Fri Jun 02, 2017 7:48 am

006 (800x600).jpg
Here's my old set up. I no longer use this mower its a c-3 and its for sale

User avatar
tmays
5+ Years
5+ Years
Posts: 2522
Joined: Wed May 11, 2011 8:59 pm
Zip Code: 39180
Tractors Owned: 1948 Allis Chalmers G
1947 Cub
1952 Cub

154 Cub LoBoy
Location: Vicksburg, MS

Re: Belly mounting with fast hitch

Postby tmays » Fri Jun 02, 2017 8:50 am

As mentioned, belly mowers need different mule drives. Blade requires a substitute drawbar. Disk plow you have depends on the model. There is a fast hitch model(153) and a non fast hitch model(152). So in a word, no, they don't interchange
Thomas

User avatar
sdurnal
5+ Years
5+ Years
Posts: 878
Joined: Thu May 06, 2010 1:36 pm
Zip Code: 47201
Tractors Owned: 105 & 127 cadet (sacrificed for a 4wd project)

680 Cadet
1964 LoBoy FH
L-54A Blade
Pennington 3 spindle deck
LF-194 plow
Circle of Safety: Y
Location: IN, Columbus

Re: Belly mounting with fast hitch

Postby sdurnal » Fri Jun 02, 2017 10:57 am

I use a belly mower on my LoBoy with a fast hitch. (unless I need to plow the garden, then 2 bolts and a belt, and the mower is off) I also remove the belly mower if I put the front blade on for plowing snow. The FH stays on..

User avatar
John *.?-!.* cub owner
Team Cub Guide
Team Cub Guide
Posts: 22704
Joined: Sun Feb 02, 2003 2:09 pm
Zip Code: 63664
Tractors Owned: 47, 48, 49 cub plus Wagner loader & other attachments. 41 Farmall H.
Location: Mo, Potosi

Re: Belly mounting with fast hitch

Postby John *.?-!.* cub owner » Fri Jun 02, 2017 12:47 pm

ddub wrote:........,
Also, I had the opportunity to pick up a belly disk plow. Is it possible to mount the belly disk plow to the cub without taking off the fast hitch? I read the manuals, but am having trouble with the combinations. Thanks!
ddub

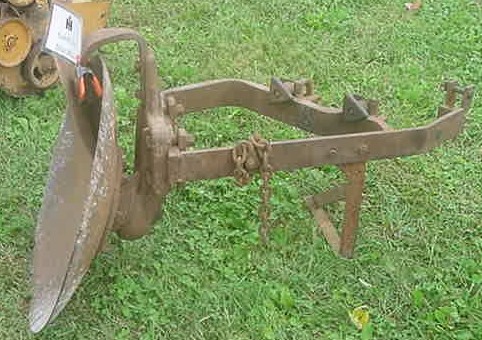

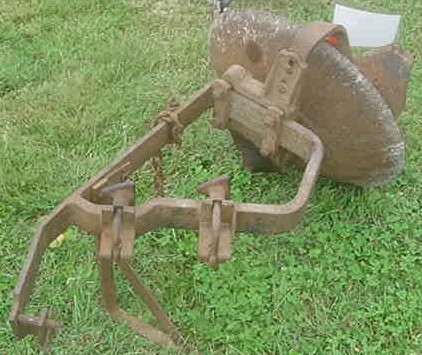

IH did make a belly mount disk plow for use on the fast hitch, Model Cub 153 I believe. Rather than brackets that bolted to the final it had clamps to attach it to the fast hitch frame.
pictures from TM Tractor web site.
If you are not part of the solution,
you are part of the problem!!!

Jackman
10+ Years
10+ Years
Posts: 2005
Joined: Mon May 15, 2006 4:26 am
Zip Code: 000000
Circle of Safety: Y

Re: Belly mounting with fast hitch

Postby Jackman » Sun Jul 09, 2017 3:41 pm

sdurnal wrote:I use a belly mower on my LoBoy with a fast hitch. (unless I need to plow the garden, then 2 bolts and a belt, and the mower is off) I also remove the belly mower if I put the front blade on for plowing snow. The FH stays on..


What kinda mower are you using :?: I have a Woods 59 hope it works with a FH Loboy .

staninlowerAL
5+ Years
5+ Years
Posts: 3377
Joined: Fri Oct 29, 2010 11:34 pm
Zip Code: 36558
Tractors Owned: Cubs: (3)'49's, (1)'52, (1)'57 IH Cub LoBoy w/FH, (1)'72 154 Number Series Loboy, '76 Longstripe w/FH, Mowers: C-22, Bush Hog 412, Pennington 59, Woods RM42CF, Woods 42, assorted FCub plows, planters, discs, etc. OTHERS: '49 AC B & Ind. Sickle mower, '61 AC D12 Ser 2, '52 8N, '56 Ferguson 35 Deluxe, '53 MM BG (offset), (2) '49 Avery V's, '51 JD M (regular), '56 JD 420C, with Blade and fire plow, '85 JD 850 (Yanmar) w/72" belly mower, '76 Yanmar 1500, Sears Surburban's, MTD's, Jeeps & other misc. "treasures"
Circle of Safety: Y
Location: AL (Southwest)

Re: Belly mounting with fast hitch

Postby staninlowerAL » Sun Jul 09, 2017 5:51 pm

Mine is a BUSH HOG 412 on a '57 LoBoy. Had to adapt the rear mounting of the mower and used the mule drive pictured above.

User avatar
sdurnal
5+ Years
5+ Years
Posts: 878
Joined: Thu May 06, 2010 1:36 pm
Zip Code: 47201
Tractors Owned: 105 & 127 cadet (sacrificed for a 4wd project)

680 Cadet
1964 LoBoy FH
L-54A Blade
Pennington 3 spindle deck
LF-194 plow
Circle of Safety: Y
Location: IN, Columbus

Re: Belly mounting with fast hitch

Postby sdurnal » Mon Aug 28, 2017 6:11 am

Pennington 3 spindle. I think it's a 60". P.S. I made my own final drive brackets and used a mule drive from another make, intended for a FH.
Sorry I haven't been here for a bit, and just saw the notification..
