Lights

Postby ajhbike » Mon Jun 26, 2017 8:16 pm

I have some lights (tear drop) and I want to use the pancake housings on my Loboy (12V now). I have new gaskets and lenses, the reflectors are okay and the clamps are in good shape. The pancakes are just the housing, nothing else. Can you get the bulb socket and the wire connector at the base? Is there a good resource that shows detail and how to?
Attachments
Pancake Housing resized.jpg
Old Lights 2 resized.jpg

User avatar
Glen
5+ Years
5+ Years
Posts: 2718
Joined: Mon Mar 19, 2012 7:33 pm
Zip Code: 00000
Tractors Owned: 1956 Farmall Cub with Fast Hitch, F-11 plow, Disc, Cultivator, Cub-22 mower
Circle of Safety: Y
Location: Wa.

Re: Lights

Postby Glen » Mon Jun 26, 2017 9:03 pm

Hi,
Maybe you already knew, the 2 lights you have in the 2nd pic have the red tail light, and are for the rear of a tractor.
They have replacement flat back sealed beams on the internet that are 12 volts, it says. They look the same as the original 6 volt units, I think. I haven't looked lately.
TM Tractor has the parts that are gone from the flat back lights that you have. The sealed beam is 6 volts, but they have pics you can look at. It has the IH part number there, Google it, and the 12 volt ones should show up.
The complete 12 volt flat back lights might cost less on the internet than the individual parts.
TM Tractor has the grille and LoBoy emblems also. :)

http://www.tmtractor.com/new/el/483fp.htm

http://www.tmtractor.com/new/el/6271fp.htm

http://www.tmtractor.com/new/el/594fp.htm

http://www.tmtractor.com/new/tg/173fp.htm

http://www.tmtractor.com/new/tg/5342fp.htm

inairam
501 Club
501 Club
Posts: 894
Joined: Wed Jul 08, 2015 10:24 am
Zip Code: 19342
Tractors Owned: 1948 with international 1000 loader
1949 with kub klipper belly mower.
1957 with c-2 mower & c-54 grader blade
1965 lo-boy with c-3 mower
1975 with homemade mower
Memberships: Rough and Tumble Engineers Historical Association;Chapter 8 IH Collectors; IH Collectors Worldwide
Circle of Safety: Y
Location: Glen Mills PA

Re: Lights

Postby inairam » Mon Jun 26, 2017 9:34 pm

If you are running a 12 generator I could consider using LED. I know these lights from Larsen https://www.larsenlights.com/par-36-45- ... lood-light fit my pancake lights. These lights are from steiner looks similar but I have not fitted them in the housing https://www.steinertractor.com/ABC349012-Volt-LED-Lamp
When you only have 9 horsepower you need to know the names of all of the ponies!

ajhbike
501 Club
501 Club
Posts: 824
Joined: Thu Mar 09, 2017 4:06 pm
Zip Code: 06405
Tractors Owned: 1957 Cub- Lorelai
1956 Lo-Boy FH- Rory
1951 Super C FH- Emily
1968 JD 3020- Paris
Woods 59 CLF
54A Blade, 54-L Blade, C-22 Sickle
C-21-P Sickle Mower
72" Rear Blade, Carryalls, Pallet Forks, IH 263 2 Row Cultivator, 7' Rake, Brush Hog, Horn-Draulic FEL
Location: Branford, CT

Re: Lights

Postby ajhbike » Tue Jun 27, 2017 6:00 am

Did the 56 Loboy have flat housings originally? The flat housings take a different light and light ring clamp?

User avatar
Don McCombs
Team Cub Mentor
Team Cub Mentor
Posts: 13369
Joined: Mon Feb 03, 2003 6:45 am
Zip Code: 21550
Tractors Owned: "1950 Something" Farmall Cub
1957 Farmall Cub w/FH
1977 International Cub w/FH
1978 International Cub
1948 Farmall Super A
Circle of Safety: Y
Location: MD, Deep Creek Lake

Re: Lights

Postby Don McCombs » Tue Jun 27, 2017 12:10 pm

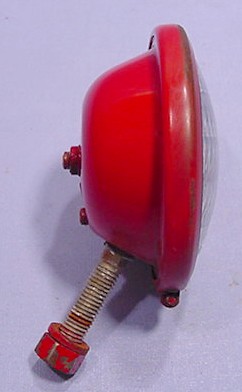

Original headlights on a 56 would have looked like this.
Photo courtesy TM Tractor Parts
Don McCombs
MD, Deep Creek Lake

Proud Member of Maryland Chapter 39

ajhbike
501 Club
501 Club
Posts: 824
Joined: Thu Mar 09, 2017 4:06 pm
Zip Code: 06405
Tractors Owned: 1957 Cub- Lorelai
1956 Lo-Boy FH- Rory
1951 Super C FH- Emily
1968 JD 3020- Paris
Woods 59 CLF
54A Blade, 54-L Blade, C-22 Sickle
C-21-P Sickle Mower
72" Rear Blade, Carryalls, Pallet Forks, IH 263 2 Row Cultivator, 7' Rake, Brush Hog, Horn-Draulic FEL
Location: Branford, CT

Re: Lights

Postby ajhbike » Tue Jun 27, 2017 1:26 pm

Yep, that's what I have. Thanks guys. Does it have a different ring clamp that the tear drop?

Bob McCarty
Team Cub
Team Cub
Posts: 8899
Joined: Tue May 25, 2004 8:02 pm
Zip Code: 80501
Tractors Owned: Cubs, MH Pony, Shaw, Allis G, 1934 Silver King, JD LA and LI, Gibson D, David Bradley Tri-Trac
Circle of Safety: Y
Location: CO, Longmont

Re: Lights

Postby Bob McCarty » Tue Jun 27, 2017 3:12 pm

ajhbike wrote: Does it have a different ring clamp that the tear drop?

Yes, If you go to TM's site under electrical, they show both styles with part #'s.
