Picking up a snow plow
Forum rules
Notice: For sale and wanted posts are not allowed in this forum. Please use our free classifieds or one of our site sponsors for your tractor and parts needs.
Notice: For sale and wanted posts are not allowed in this forum. Please use our free classifieds or one of our site sponsors for your tractor and parts needs.
- Slim140
- 5+ Years
- Posts: 4908
- Joined: Wed Nov 22, 2017 6:24 am
- Zip Code: 00000
- Tractors Owned: .
1970 International 140
1972 International 140
1949 John Deere A
1993 Ford 4630 W/Loader
1965 John Deere 110
1961 Cub Cadet Original - Circle of Safety: Y
Re: Picking up a snow plow
Congratulations on your baby!
Every home is a school, what are you teaching?
- Peter Person
- Cub Pro
- Posts: 4548
- Joined: Fri Nov 18, 2005 4:27 pm
- Zip Code: 06076
- Circle of Safety: Y
- Location: CT, Stafford Springs
Re: Picking up a snow plow
The three photos that would be most helpful;
1) Straight on at axle level.
2) Straight down from above.
3) Side view at axle level.
Check out these photos on TM Tractor: http://www.tmtractor.com/tm-tractor/gst/gst_001.htm
Getting the axle loose may be difficult, so concentrate on adjusting the tie rod ends.
Put wedges between the axle and the steering gear housing, lift the tractor off the ground just enough to turn the wheel easily, and center the steering gear arm. Unscrew the end cap of the tie-rod and disconnect, adjust the tie-rod end in or out as necessary. You may need to play around with this a bit to get the wheels aligned. There are shims in the steering gear arm that get removed as the "ball" on the tie-rod wears. As the ball wears you get play that adds wobble. Same thing happens on the steering arm end.
From the photo you posted, it almost looks like your right steering arm is bent. Again, the photos from TM Tractor are a good reference.
Hope this helps.
Peter
1) Straight on at axle level.
2) Straight down from above.
3) Side view at axle level.
Check out these photos on TM Tractor: http://www.tmtractor.com/tm-tractor/gst/gst_001.htm
Getting the axle loose may be difficult, so concentrate on adjusting the tie rod ends.
Put wedges between the axle and the steering gear housing, lift the tractor off the ground just enough to turn the wheel easily, and center the steering gear arm. Unscrew the end cap of the tie-rod and disconnect, adjust the tie-rod end in or out as necessary. You may need to play around with this a bit to get the wheels aligned. There are shims in the steering gear arm that get removed as the "ball" on the tie-rod wears. As the ball wears you get play that adds wobble. Same thing happens on the steering arm end.
From the photo you posted, it almost looks like your right steering arm is bent. Again, the photos from TM Tractor are a good reference.
Hope this helps.
Peter
1957 Farmall Cub "Emory", Fast-Hitch, L-F194 Plow & Colter, L-38 Disc Harrow, Cub-54A Blade, Cub-22 Sickle Bar Mower, IH 100 Blade
-
- 5+ Years
- Posts: 103
- Joined: Tue Jan 05, 2016 9:35 am
- Zip Code: 16650
- Tractors Owned: 48 Cub
94 Wheelhorse 312-8
Re: Picking up a snow plow
Pictures aren’t the greatest with pieces of the plow in the way, but hopefully they help. It does looks like the one tie rod is a lot longer, but things look slightly bent as well. Looks like things will be hard to break loose, as it seems they were painted over while together.
1948 McCormick Deering Farmall Cub:
- International L-54 blade
- Woods 59 mower
1994 Toro Wheel Horse 312-8: 42" rear discharge deck
Husqvarna 562XP chainsaw: 24" bar w/ skip tooth
Craftsman 18" chainsaw
- International L-54 blade
- Woods 59 mower
1994 Toro Wheel Horse 312-8: 42" rear discharge deck
Husqvarna 562XP chainsaw: 24" bar w/ skip tooth
Craftsman 18" chainsaw
- Peter Person
- Cub Pro
- Posts: 4548
- Joined: Fri Nov 18, 2005 4:27 pm
- Zip Code: 06076
- Circle of Safety: Y
- Location: CT, Stafford Springs
Re: Picking up a snow plow

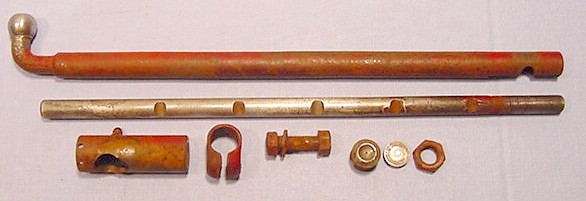

This is what the tie-rod looks like taken apart;
The axle appears to be out the same on each end, so everything is in the tie-rod.
You will need to disconnect the tie-rod as noted earlier and also take it apart to slide the "detent-ed" portion in further. This could be problematic if it's bent at all. They straighten fairly easy in a vise or press.
Peter
The axle appears to be out the same on each end, so everything is in the tie-rod.
You will need to disconnect the tie-rod as noted earlier and also take it apart to slide the "detent-ed" portion in further. This could be problematic if it's bent at all. They straighten fairly easy in a vise or press.
Peter
1957 Farmall Cub "Emory", Fast-Hitch, L-F194 Plow & Colter, L-38 Disc Harrow, Cub-54A Blade, Cub-22 Sickle Bar Mower, IH 100 Blade
-
- Team Cub
- Posts: 11817
- Joined: Tue May 25, 2004 8:02 pm
- Zip Code: 80501
- Tractors Owned: Cubs, MH Pony, Shaw, Allis G, 1934 Silver King, JD LA and LI, Gibson D, David Bradley Tri-Trac
- Circle of Safety: Y
- Location: CO, Longmont
Re: Picking up a snow plow
You might want to measure the toe in of the front tires. That should give an indication of how much adjustment is needed. If the toe in is close to correct, there is probably something bent.
"We don't need to think more,
we need to think differently."
-Albert Einstein
we need to think differently."
-Albert Einstein
- Stanton
- Cub Pro
- Posts: 7760
- Joined: Mon Jun 22, 2009 6:56 am
- Zip Code: 64070
- Tractors Owned: 1942 Farmall AV, serial #87025
1947 Farmall Circle Cub, serial #2116
1948 Farmall Cub, serial #46066 - Circle of Safety: Y
- Location: Lone Jack, MO
Re: Picking up a snow plow
Let's see...somebody on here did a thread in the How To Forum about Loosening Stubborn Tie Rods.
Some others on cleaning / removing your adjustable axle (that won't adjust anymore):
By the way, nice attachments to your post. You did good. Now, they'll never get separated or lost.
Some others on cleaning / removing your adjustable axle (that won't adjust anymore):
By the way, nice attachments to your post. You did good. Now, they'll never get separated or lost.
- Dale Finch
- 10+ Years
- Posts: 6634
- Joined: Tue Apr 27, 2010 11:34 am
- Zip Code: 27517
- Tractors Owned: '51 Cub #140966 "Bruno" with Woods 59 mower
'55 Cub #187541 "Betty" with Fast Hitch
'55 Cub #190482 "Ben" with Woods 42 mower
'55 Cub #191739 "Bertha" with Woods 42 mower
'56 Cub #194370 "Boris" with Mott Flail mower - Circle of Safety: Y
- Location: NC, Chapel Hill
Re: Picking up a snow plow
What I find strange is that the top view DOES show the tie rods parallel to the front axle in that plane, but the front view does not. It appears to me that either the center steering arm is bent up, or the steering knuckle arms are bent down...more on the right (left in the photo).
-
- 5+ Years
- Posts: 103
- Joined: Tue Jan 05, 2016 9:35 am
- Zip Code: 16650
- Tractors Owned: 48 Cub
94 Wheelhorse 312-8
Re: Picking up a snow plow
Stanton wrote:By the way, nice attachments to your post. You did good. Now, they'll never get separated or lost.
It’s a shame photobucket wants 10$ a month to post photos. Who actually has that to waste? Sucks because everything I’ve ever posted here or any other forum is now invisible. I haven’t contributed much here, but it sucks for other readers because they now can’t see what you all have helped me solve.
1948 McCormick Deering Farmall Cub:
- International L-54 blade
- Woods 59 mower
1994 Toro Wheel Horse 312-8: 42" rear discharge deck
Husqvarna 562XP chainsaw: 24" bar w/ skip tooth
Craftsman 18" chainsaw
- International L-54 blade
- Woods 59 mower
1994 Toro Wheel Horse 312-8: 42" rear discharge deck
Husqvarna 562XP chainsaw: 24" bar w/ skip tooth
Craftsman 18" chainsaw
-
- 5+ Years
- Posts: 103
- Joined: Tue Jan 05, 2016 9:35 am
- Zip Code: 16650
- Tractors Owned: 48 Cub
94 Wheelhorse 312-8
Re: Picking up a snow plow
Dale Finch wrote:What I find strange is that the top view DOES show the tie rods parallel to the front axle in that plane, but the front view does not. It appears to me that either the center steering arm is bent up, or the steering knuckle arms are bent down...more on the right (left in the photo).
I’m not good with technical terms here, but the vertical part that comes down to the wheel. Should that be perfectly vertical assuming the tractor is on flat ground? You can’t quite tell in my pictures, but the wheels are set a bit towards the rear of the tractor from the axle. That has the steering arms slightly pointed down.
1948 McCormick Deering Farmall Cub:
- International L-54 blade
- Woods 59 mower
1994 Toro Wheel Horse 312-8: 42" rear discharge deck
Husqvarna 562XP chainsaw: 24" bar w/ skip tooth
Craftsman 18" chainsaw
- International L-54 blade
- Woods 59 mower
1994 Toro Wheel Horse 312-8: 42" rear discharge deck
Husqvarna 562XP chainsaw: 24" bar w/ skip tooth
Craftsman 18" chainsaw
- Dale Finch
- 10+ Years
- Posts: 6634
- Joined: Tue Apr 27, 2010 11:34 am
- Zip Code: 27517
- Tractors Owned: '51 Cub #140966 "Bruno" with Woods 59 mower
'55 Cub #187541 "Betty" with Fast Hitch
'55 Cub #190482 "Ben" with Woods 42 mower
'55 Cub #191739 "Bertha" with Woods 42 mower
'56 Cub #194370 "Boris" with Mott Flail mower - Circle of Safety: Y
- Location: NC, Chapel Hill
Re: Picking up a snow plow
Ahhh...hadn't seen that before, but check to see if the hole that the large pin goes through on the axle clamps is wallered out. You may have found where some of the problem lies...in addition to the rod length differences
-
- 10+ Years
- Posts: 603
- Joined: Wed Feb 19, 2014 1:09 pm
- Zip Code: 32736
- Tractors Owned: The crew:
"John", 1952 Cub
"Paul", 1951 Cub
"George", 1958 LoBoy Cub with Wagner 45 Loader
"Ringo", 1977 Cub
So far, Paul and Ringo have arrived. John and George were supposed to follow ages ago, but apparently have gone awol. Long story. - Circle of Safety: Y
Re: Picking up a snow plow
Yes. Look at the side view image above. The axle has definitely tipped the knuckles down quite a lot. Maybe, as Dale says, the holes are wallered, or maybe someone put undersize bolts in the axle in order to drive it around to break the front axle adjustment loose, but then never went back to put the right sized bolt back in?
Edit: that also explains why the right knuckle looks worse, even though the knuckles look identical. The knuckles aren’t distorted, it’s just that the right side has tilted more.
Edit: that also explains why the right knuckle looks worse, even though the knuckles look identical. The knuckles aren’t distorted, it’s just that the right side has tilted more.
-
- 10+ Years
- Posts: 1050
- Joined: Tue Apr 26, 2011 10:47 am
- Zip Code: 44266
- Tractors Owned: 48 F Cub #11678
65 Cub Cadet 104
70 450C JD loader
67 Cub Cadet 107
90 B7100HST-D Kubota
72 Cub Cadet 149
54 Super C - Circle of Safety: Y
- Location: Ravenna, Ohio
Re: Picking up a snow plow
Rjpoog1989 wrote:the vertical part that comes down to the wheel. Should that be perfectly vertical assuming the tractor is on flat ground? You can’t quite tell in my pictures, but the wheels are set a bit towards the rear of the tractor from the axle.
In a word - yes. They should be straight up and down. If something is loose or worn it's pretty easy to tell where the problem is when the front wheels are off the ground. Possibly the bolster is broken where the pivot pin attaches or (less likely) the holes and/or pins for the width adjustment are worn and sloppy, "wallered out" as some would say. If the spindles are bent - well - that may be a difficult fix, possibly have to replace those parts of the axle.
As to your L 54 on a standard Cub, I think I would investigate adding extensions to the front hangers. That would improve the angle of the plow to the ground and give you some room to better operate your crank.
-
- 10+ Years
- Posts: 1174
- Joined: Sat Jan 28, 2012 3:13 pm
- Zip Code: 68803
- Tractors Owned: 1948 Cub, Kittie; 1948 Cub, Harold; 1949 Cub, 49er; 1951 Cub, Tucker; 1951 Cub, Homely; 1956 Cub High Crop; 1957 Cub Loboy; 57 Cub Loboy w/fasthitch + 194 plow; 1958 Cub LoBoy w/FH, Popeye; 1961 Cub, Beater; #1-1962 Cub Loboy Dually (Originally Orange) w/Foot Throttle; #2-1962 Cub Loboy Dually (Originally Orange) w/Foot throttle; Yellow 1963 Cub Loboy and blade; 1970 Cub, Cubbie; and 5 other Cubs in various stages of disaasembly and disrepair; 1962 Cub Cadet Original; 2 other Cub Cadet Originals; Cub Cadet 100; Cub Cadet 124 w/Creeper; Cub Cadet 147; 2 Cub Cadet 129's; Cub Cadet 149; 1948 Allis Chalmers C w/single frontwheel; 1944 Farmall H w/Tokhiem Cab; 2 One Point Fasthitch Carriers; 2-#100 Fasthitch Rear Blade; 2 Sets Cub 144 Cultivators; 2 Sets Cub #252 Cultivators; 3 Cub #193 Mouldboard Plows; 1 Cub #193 Slatted Plow; 1 1948 Cub-54 Snow Plow; 3 Cub-54 49-5 Snow Plows; Cub #6 Tool Bar w/Disc Blades & Middlebuster. 2-#105 sickle mowers, #152 disc plow
- Circle of Safety: Y
- Location: Grand Island, Nebraska
Re: Picking up a snow plow
Center of hub should be at least inline with axle vertically if not slightly ahead of axle. 3 degrees comes to mind but I can’t remember where that figure came from. (Caster angle) Can anyone else chime in on the caster measurement?
Frank
- Bill Hudson
- Team Cub
- Posts: 9513
- Joined: Wed Jul 26, 2006 10:50 am
- Zip Code: 44057
- Tractors Owned: 57 F-Cub - Dad & Mom's Cub
77 F-Cub - Red Long Stripe - Circle of Safety: Y
- Location: OH, Madison
Re: Picking up a snow plow
Yes, the right front wheel/axle assembly is easily 90% of your steering problem. BTDT. The tie rod issue will also need to be addressed.
Bill
Bill
- Dale Finch
- 10+ Years
- Posts: 6634
- Joined: Tue Apr 27, 2010 11:34 am
- Zip Code: 27517
- Tractors Owned: '51 Cub #140966 "Bruno" with Woods 59 mower
'55 Cub #187541 "Betty" with Fast Hitch
'55 Cub #190482 "Ben" with Woods 42 mower
'55 Cub #191739 "Bertha" with Woods 42 mower
'56 Cub #194370 "Boris" with Mott Flail mower - Circle of Safety: Y
- Location: NC, Chapel Hill
Re: Picking up a snow plow
Smokeycub wrote:Possibly the bolster is broken where the pivot pin attaches or (less likely) the holes and/or pins for the width adjustment are worn and sloppy,
I had a cub whose front axle appeared to have been badly abused at some point, with gussets welded in at both ends, as well as to the area in the middle where the pivot pin (shaft) goes through. You might check that center area well, also.
