Bus Driver's Cub Drawbar Drill Jig

Postby T-Mo » Fri Mar 09, 2018 12:45 pm

This was sent to me so I could do a 3D model and a 2D drawing. If anyone has any suggestions, comments, etc., especially Bus Driver, please feel free to post them here before I send this to Dennis to place into the pdf manual section.
Attachments
Drawbar Drill Jig.pdf
(96.96 KiB) Downloaded 204 times

User avatar
radioguy41
Cub Star!!
Cub Star!!
Posts: 327
Joined: Sun Jun 18, 2017 10:46 am
Zip Code: 18235
Tractors Owned: -
1948 Farmall Cub (Cyrus)
1994 Craftsman LT4000
Circle of Safety: Y
Location: Lehighton, PA

Re: Bus Driver's Cub Drawbar Drill Jig

Postby radioguy41 » Fri Mar 09, 2018 3:36 pm

I guess my only comment is, what is it for?
Circle of Safety Image Image

AL Farmall Boy
5+ Years
5+ Years
Posts: 2133
Joined: Tue Aug 10, 2010 6:38 pm
Zip Code: 35111
Circle of Safety: Y

Re: Bus Driver's Cub Drawbar Drill Jig

Postby AL Farmall Boy » Fri Mar 09, 2018 3:48 pm

Repairing the holes in the drawbar that are "out of round" ??
Regards,
Chase
205-368-5339
ihfarmallrtr@gmail.com
:tractor: Like my page "Alabama Tractor Pickers" on Facebook! :tractor:

User avatar
Don McCombs
Team Cub Mentor
Team Cub Mentor
Posts: 13259
Joined: Mon Feb 03, 2003 6:45 am
Zip Code: 21550
Tractors Owned: "1950 Something" Farmall Cub
1957 Farmall Cub w/FH
1977 International Cub w/FH
1978 International Cub
1948 Farmall Super A
Circle of Safety: Y
Location: MD, Deep Creek Lake

Re: Bus Driver's Cub Drawbar Drill Jig

Postby Don McCombs » Fri Mar 09, 2018 4:44 pm

It is a jig for drilling drawbar/implement mounting holes in the finals, in preparation for tapping and helicoiling them.
Don McCombs
MD, Deep Creek Lake

Proud Member of Maryland Chapter 39

User avatar
Rick Prentice
Team Cub Guide
Team Cub Guide
Posts: 5466
Joined: Mon Nov 01, 2004 7:24 am
Zip Code: 43528
Tractors Owned: 47(circle cub),48(Floyd backhoe),49,,51,54
Circle of Safety: Y
Location: OH, Holland

Re: Bus Driver's Cub Drawbar Drill Jig

Postby Rick Prentice » Fri Mar 09, 2018 4:50 pm

If I remember correctly, it was for either drilling out broken bolts. You could install a couple bolts in the good holes and the jig would allow you to drill through the alignment guides to find the center again. Or you could drill and tap for a larger bolt, torque that bolt down and then cut it off flush, install this jig and redrill for the proper 5/8=11 threads.
When I told my dad I've been misplacing things and doing stupid stuff----His reply---"It only gets better"

User avatar
Rick Prentice
Team Cub Guide
Team Cub Guide
Posts: 5466
Joined: Mon Nov 01, 2004 7:24 am
Zip Code: 43528
Tractors Owned: 47(circle cub),48(Floyd backhoe),49,,51,54
Circle of Safety: Y
Location: OH, Holland

Re: Bus Driver's Cub Drawbar Drill Jig

Postby Rick Prentice » Fri Mar 09, 2018 5:03 pm

I see Don beat me to the punch. My question is the proper drill for the 5/8-11 heli-coil is 21/32". I see Bus Driver used 5/8 diameter collars. My question is did drilling through these 5/8" diameter collars allow you to use the 5/8-11 heli-coil tap or did you have to remove the jig and then redrill with the proper 21/32 drill?
When I told my dad I've been misplacing things and doing stupid stuff----His reply---"It only gets better"

User avatar
radioguy41
Cub Star!!
Cub Star!!
Posts: 327
Joined: Sun Jun 18, 2017 10:46 am
Zip Code: 18235
Tractors Owned: -
1948 Farmall Cub (Cyrus)
1994 Craftsman LT4000
Circle of Safety: Y
Location: Lehighton, PA

Re: Bus Driver's Cub Drawbar Drill Jig

Postby radioguy41 » Fri Mar 09, 2018 5:05 pm

Ah, OK, makes sense now.
Circle of Safety Image Image

User avatar
tmays
5+ Years
5+ Years
Posts: 2492
Joined: Wed May 11, 2011 8:59 pm
Zip Code: 39180
Tractors Owned: 1948 Allis Chalmers G
1947 Cub
1952 Cub

154 Cub LoBoy
Location: Vicksburg, MS

Re: Bus Driver's Cub Drawbar Drill Jig

Postby tmays » Fri Mar 09, 2018 5:51 pm

Can’t be for the final Implement holes. The top hole on a final is straight up from the bottom hole. Not so in this drawing

Edit: unless you’re only utilizing two of the holes, then it could be for final
Thomas

User avatar
Rick Prentice
Team Cub Guide
Team Cub Guide
Posts: 5466
Joined: Mon Nov 01, 2004 7:24 am
Zip Code: 43528
Tractors Owned: 47(circle cub),48(Floyd backhoe),49,,51,54
Circle of Safety: Y
Location: OH, Holland

Re: Bus Driver's Cub Drawbar Drill Jig

Postby Rick Prentice » Fri Mar 09, 2018 5:57 pm

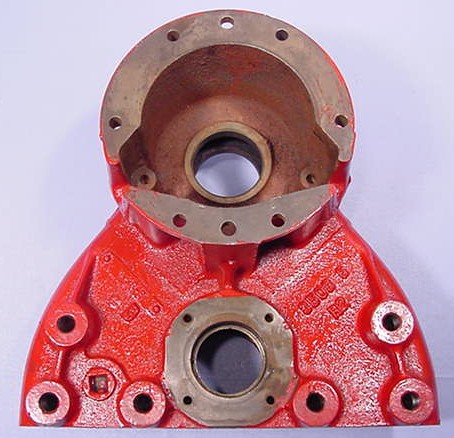

From TM's pics you can see you'll only use 3 of the 4 holes in the jig, depending which way you use it.Image
When I told my dad I've been misplacing things and doing stupid stuff----His reply---"It only gets better"

User avatar
tmays
5+ Years
5+ Years
Posts: 2492
Joined: Wed May 11, 2011 8:59 pm
Zip Code: 39180
Tractors Owned: 1948 Allis Chalmers G
1947 Cub
1952 Cub

154 Cub LoBoy
Location: Vicksburg, MS

Re: Bus Driver's Cub Drawbar Drill Jig

Postby tmays » Fri Mar 09, 2018 6:01 pm

Rick Prentice wrote:From TM's pics you can see you'll only use 3 of the 4 holes in the jig, depending which way you use it.Image

Thanks for the pic. Going by memory, I sure thought third hole was 90 degrees from other ones. I also wondered, like you, about the 5/8 inch hole
Thomas

coppersmythe
5+ Years
5+ Years
Posts: 1113
Joined: Thu Dec 24, 2009 9:19 am
Zip Code: 70785
Tractors Owned: '48 trimmed dash high crop cub , '78 3/4 cub , lo-boy/59 mower , '64 "galvanized" cub , cub-6 toolbar , sicklebar mowers , 54 blade , plow , mott mower , early belly mower . '57 higgins v-drive wooden boat/original graymarine 4 banger . international 1010 pickup with 345ci v-8 .
Circle of Safety: Y
Location: louisiana

Re: Bus Driver's Cub Drawbar Drill Jig

Postby coppersmythe » Fri Mar 09, 2018 6:14 pm

is anyone making these , or planning to ? coppersmythe..............................

User avatar
Dale Finch
5+ Years
5+ Years
Posts: 3023
Joined: Tue Apr 27, 2010 11:34 am
Zip Code: 27517
Tractors Owned: '55 Cub "Bertha"
'55 Cub "Ben"
'56 Cub "Boris"
'48 Super A "Bubba"
Circle of Safety: Y
Location: NC, Chapel Hill

Re: Bus Driver's Cub Drawbar Drill Jig

Postby Dale Finch » Fri Mar 09, 2018 6:22 pm

Why is it called a Drawbar Drill Jig, rather than a Final Drill Jig? :?

User avatar
Barnyard
Team Cub
Team Cub
Posts: 21074
Joined: Tue Aug 07, 2007 3:39 pm
Zip Code: 45030
Tractors Owned: At This Time
40 Farmall Cubs (Round Hood)
2 Farmall Cub (Square Hood)
2 IH Cubs (Square Hood)
5 Lo-Boys (Round Hood)
2 Lo-Boys (Square Hood)
2 Farmall 404's
1 Farmall H
1 Ferguson 20
1 Cub Cadet 125
1 Kubota B-7100
Circle of Safety: Y
Location: OH, New Haven (Hamilton County)

Re: Bus Driver's Cub Drawbar Drill Jig

Postby Barnyard » Fri Mar 09, 2018 6:28 pm

Definitely spaced for the final drive implement holes. Here is my jig that I bought from Earl.



coppersmythe wrote:is anyone making these , or planning to ? coppersmythe..............................

Val, I have been planning to produce ones like I have.
It is common sense to take a method and try it. If it fails, admit it frankly and try another. But above all, try something.
- Franklin D. Roosevelt -

Circle of Safety

User avatar
tmays
5+ Years
5+ Years
Posts: 2492
Joined: Wed May 11, 2011 8:59 pm
Zip Code: 39180
Tractors Owned: 1948 Allis Chalmers G
1947 Cub
1952 Cub

154 Cub LoBoy
Location: Vicksburg, MS

Re: Bus Driver's Cub Drawbar Drill Jig

Postby tmays » Fri Mar 09, 2018 6:34 pm

As can be seen from this thread, drawing needs renamed. :lol:
Thomas

User avatar
Don McCombs
Team Cub Mentor
Team Cub Mentor
Posts: 13259
Joined: Mon Feb 03, 2003 6:45 am
Zip Code: 21550
Tractors Owned: "1950 Something" Farmall Cub
1957 Farmall Cub w/FH
1977 International Cub w/FH
1978 International Cub
1948 Farmall Super A
Circle of Safety: Y
Location: MD, Deep Creek Lake

Re: Bus Driver's Cub Drawbar Drill Jig

Postby Don McCombs » Fri Mar 09, 2018 7:29 pm

The original creator of this drawing called it a Drawbar Hole Drilling Jig.
Don McCombs
MD, Deep Creek Lake

Proud Member of Maryland Chapter 39
