Farmall 140 with AI 23 highway mower

Postby zd25250 » Wed Jul 05, 2017 7:37 pm

I have a Farmall 140 and recently aquired a ai 23 mower I got the mower bolted to the tractor the pulley that came with it according to the part # is the right one but it hits the fender as I slide it on can anyone help me! Am I missing something

Jim Becker
Team Cub
Team Cub
Posts: 13044
Joined: Sun Feb 02, 2003 2:59 pm
Zip Code: 55319
Circle of Safety: Y
Location: MN

Re: Farmall 140 with AI 23 highway mower

Postby Jim Becker » Wed Jul 05, 2017 10:25 pm

I think that should be the pulley with the slip clutch built into the hub. Pictures of the problem?

Matt Kirsch
10+ Years
10+ Years
Posts: 4456
Joined: Tue Jun 08, 2004 3:04 pm
Zip Code: 14559
Circle of Safety: Y
Location: Rochester, NY

Re: Farmall 140 with AI 23 highway mower

Postby Matt Kirsch » Tue Jul 11, 2017 9:11 am

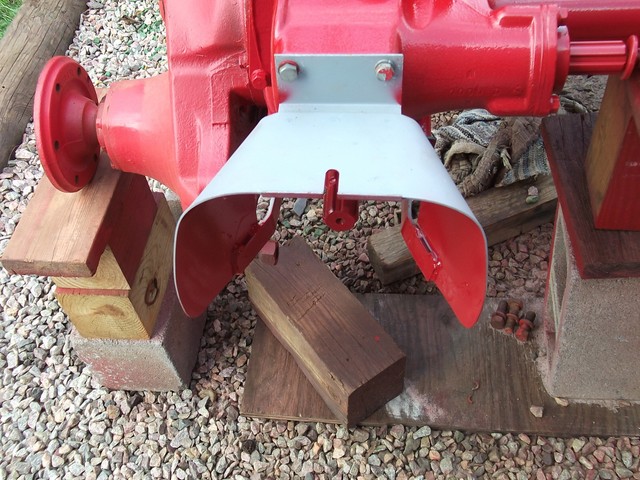

Did you remove the PTO shroud/shield? The part that is gray in the picture below.


zd25250
Posts: 6
Joined: Wed Jul 05, 2017 7:23 pm
Zip Code: 47119

Re: Farmall 140 with AI 23 highway mower

Postby zd25250 » Wed Jul 12, 2017 5:33 pm

Here are some pictures I understand the fast hitch has to come off so the bracket for the drive line bolts to the final drive housing not sure about pulley though
Attachments

Jim Becker
Team Cub
Team Cub
Posts: 13044
Joined: Sun Feb 02, 2003 2:59 pm
Zip Code: 55319
Circle of Safety: Y
Location: MN

Re: Farmall 140 with AI 23 highway mower

Postby Jim Becker » Wed Jul 12, 2017 9:49 pm

The pulley looks good. The pulley should go on to where the 2 bolts in the hub align with the groove in the PTO shaft. It looks like the problem may have something to do with the fender itself. That fender is pretty thick, seems unlikely it could be bent that much. Is there any chance it isn't mounted correctly? If all else fails, you could put the fender on some spacers. Exact position of the fender won't matter if there is no rear rockshaft.

zd25250
Posts: 6
Joined: Wed Jul 05, 2017 7:23 pm
Zip Code: 47119

Re: Farmall 140 with AI 23 highway mower

Postby zd25250 » Sun Jul 30, 2017 6:19 pm

I'm going over to me neighbors to see if it will fit on his 140

zd25250
Posts: 6
Joined: Wed Jul 05, 2017 7:23 pm
Zip Code: 47119

Re: Farmall 140 with AI 23 highway mower

Postby zd25250 » Thu Oct 12, 2017 8:01 pm

Does anyone know where I can find a drive belt?

Jim Becker
Team Cub
Team Cub
Posts: 13044
Joined: Sun Feb 02, 2003 2:59 pm
Zip Code: 55319
Circle of Safety: Y
Location: MN

Re: Farmall 140 with AI 23 highway mower

Postby Jim Becker » Thu Oct 12, 2017 8:14 pm

Did you resolve the pulley/fender interference problem? If so, how? The "right" drive belt might not fit.

zd25250
Posts: 6
Joined: Wed Jul 05, 2017 7:23 pm
Zip Code: 47119

Re: Farmall 140 with AI 23 highway mower

Postby zd25250 » Fri Oct 13, 2017 9:28 pm

My fender was slightly bent

Jim Becker
Team Cub
Team Cub
Posts: 13044
Joined: Sun Feb 02, 2003 2:59 pm
Zip Code: 55319
Circle of Safety: Y
Location: MN

Re: Farmall 140 with AI 23 highway mower

Postby Jim Becker » Fri Oct 13, 2017 10:10 pm

The belt is MA42292. The first site I hit by googling the part number was vbeltsforless.com . They say it crosses to A-C57, 7/8x61. There are plenty of sources, probably including: CaseIH, NAPA, jdv-belts.com . . .

zd25250
Posts: 6
Joined: Wed Jul 05, 2017 7:23 pm
Zip Code: 47119

Re: Farmall 140 with AI 23 highway mower

Postby zd25250 » Sat Oct 14, 2017 7:18 am

Ok thanks for your help I really appreciate it!
