Broken Spring! Need help please

Postby justice0840 » Sun Apr 19, 2015 1:02 pm

I bought a 79 loboy last year and I am not a mechanic at all. I removed my snow plow blade today and when I moved my tractor a spring was laying , broken, on the concrete. It is about 2 inches long and painted red. I have attached a picture. If anyone can help identify where this goes it would be very much appreciated.

Thanks!!
Attachments

SPONSOR AD

Sponsor



Sponsor


staninlowerAL
10+ Years
10+ Years
Posts: 4974
Joined: Fri Oct 29, 2010 11:34 pm
Zip Code: 36558
Tractors Owned: Cubs: (3)'49's, (1 is for parts), (1)'57 IH Cub LoBoy w/FH, (2)154 Number Series Loboys, (1 is for parts), '76 Longstripe w/FH, Mowers: C-22, Bush Hog 412, Pennington 59, Woods RM42CF, Woods 42, assorted FCub plows, planters, discs, etc. OTHERS: '49 AC B & Ind. Sickle mower, '61 AC D12 Ser 2, '52 8N, '56 Ferguson 35 Deluxe, '47 & '49 Avery V, '53 MM BG (offset), '51 JD M (regular), '56 JD 420C, with Blade and fire plow, '85 JD 850 (Yanmar) w/72" belly mower, '76? Yanmar 2TR15 1500 & Bush Hog SQ42S-2 mower, '78? FORD Dexta, '86 FORD LGT14D & 48" Mower, (2)Cub Cadets & Mowers (MTD), (4) Sears Surburban's, other MTD mowers, Jeeps & other misc. "treasures"
Circle of Safety: Y
Location: AL (Southwest)

Re: Broken Spring! Need help please

Postby staninlowerAL » Sun Apr 19, 2015 4:55 pm

Looks somewhat like the spring on the governor linkage. Might be a little too long but check the top rear of the governor housing to see if yours is missing. Also look for a belt tension idler on the mower that is missing a spring.
Stan in LA (lower AL)
USAF & Reserves, Reg ARMY, ARMY NG (AL)

User avatar
John *.?-!.* cub owner
Cub Pro
Cub Pro
Posts: 23701
Joined: Sun Feb 02, 2003 2:09 pm
Zip Code: 63664
Tractors Owned: 47, 48, 49 cub plus Wagner loader & other attachments. 41 Farmall H.
Location: Mo, Potosi

Re: Broken Spring! Need help please

Postby John *.?-!.* cub owner » Sun Apr 19, 2015 9:35 pm

Bend is the wrong way for governor, I am thinking of the springs that go on the clutch, antirattle spring? approximately where was it laying, under which part of the tractor. Thinking it over, does the numbered LOBOY use the same brake and clutch pedal return spring as a standard cub, that is what it looks like.

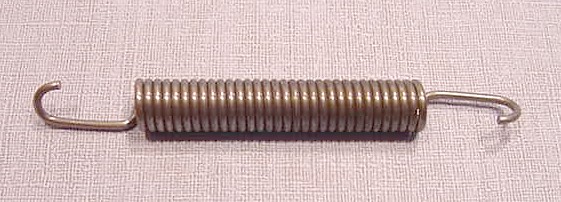

picture from TM Tractor site.

edit, was mixing LOBOY and Cadet when thinking of antirattle spring. :oops:
If you are not part of the solution,
you are part of the problem!!!

User avatar
Dale Finch
10+ Years
10+ Years
Posts: 6634
Joined: Tue Apr 27, 2010 11:34 am
Zip Code: 27517
Tractors Owned: '51 Cub #140966 "Bruno" with Woods 59 mower
'55 Cub #187541 "Betty" with Fast Hitch
'55 Cub #190482 "Ben" with Woods 42 mower
'55 Cub #191739 "Bertha" with Woods 42 mower
'56 Cub #194370 "Boris" with Mott Flail mower
Circle of Safety: Y
Location: NC, Chapel Hill

Re: Broken Spring! Need help please

Postby Dale Finch » Sun Apr 19, 2015 10:47 pm

I was thinking pedal spring, too, but the spring and the hook parts are both too short. And it is too long for the governor spring.
I can't think of any other spring... :?
Dale Finch
Circle of Safety

Bob McCarty
Team Cub
Team Cub
Posts: 11817
Joined: Tue May 25, 2004 8:02 pm
Zip Code: 80501
Tractors Owned: Cubs, MH Pony, Shaw, Allis G, 1934 Silver King, JD LA and LI, Gibson D, David Bradley Tri-Trac
Circle of Safety: Y
Location: CO, Longmont

Re: Broken Spring! Need help please

Postby Bob McCarty » Sun Apr 19, 2015 10:57 pm

It may have been that one of the pedal springs broke, and this was the closest replacement the PO could find.

Bob
"We don't need to think more,
we need to think differently."
-Albert Einstein

User avatar
Dale Finch
10+ Years
10+ Years
Posts: 6634
Joined: Tue Apr 27, 2010 11:34 am
Zip Code: 27517
Tractors Owned: '51 Cub #140966 "Bruno" with Woods 59 mower
'55 Cub #187541 "Betty" with Fast Hitch
'55 Cub #190482 "Ben" with Woods 42 mower
'55 Cub #191739 "Bertha" with Woods 42 mower
'56 Cub #194370 "Boris" with Mott Flail mower
Circle of Safety: Y
Location: NC, Chapel Hill

Re: Broken Spring! Need help please

Postby Dale Finch » Sun Apr 19, 2015 11:01 pm

Bob McCarty wrote:It may have been that one of the pedal springs broke, and this was the closest replacement the PO could find.

Bob

You may be right, Bob. Being so short, I can't imagine how anyone got it hooked, though...I have said some really nasty things about my tractors trying to get new ones on!!! :oops:
Dale Finch
Circle of Safety

outdoors4evr
10+ Years
10+ Years
Posts: 2783
Joined: Tue Jul 22, 2008 12:44 pm
Zip Code: 48370
Tractors Owned: 184
Location: Oxford, MI

Re: Broken Spring! Need help please

Postby outdoors4evr » Mon Apr 20, 2015 10:15 am

It's a brake pedal spring. They are a booger to get on. Needle Nosed vice grips worked the best for me.
184 w/ Creeper & 3-Point
IH 3160a Mower
IH Model 15 Tiller
IH-54 Blade

User avatar
Dale Finch
10+ Years
10+ Years
Posts: 6634
Joined: Tue Apr 27, 2010 11:34 am
Zip Code: 27517
Tractors Owned: '51 Cub #140966 "Bruno" with Woods 59 mower
'55 Cub #187541 "Betty" with Fast Hitch
'55 Cub #190482 "Ben" with Woods 42 mower
'55 Cub #191739 "Bertha" with Woods 42 mower
'56 Cub #194370 "Boris" with Mott Flail mower
Circle of Safety: Y
Location: NC, Chapel Hill

Re: Broken Spring! Need help please

Postby Dale Finch » Mon Apr 20, 2015 11:31 am

Possibly, but it is quite a bit shorter. Maybe there was another section on the floor?

(photo courtesy of TM Tractors)


Hey, look under the platform and see if you are missing one!
Dale Finch
Circle of Safety

Jim Becker
Team Cub
Team Cub
Posts: 17214
Joined: Sun Feb 02, 2003 2:59 pm
Zip Code: 55319
Circle of Safety: Y
Location: MN

Re: Broken Spring! Need help please

Postby Jim Becker » Mon Apr 20, 2015 8:12 pm

Hey guys, he has a 184. I'm seeing a lot of Farmall suggestions here.

I haven't checked the parts catalog, but suspect it is an original spring from somewhere on the clutch or brakes.

User avatar
Dale Finch
10+ Years
10+ Years
Posts: 6634
Joined: Tue Apr 27, 2010 11:34 am
Zip Code: 27517
Tractors Owned: '51 Cub #140966 "Bruno" with Woods 59 mower
'55 Cub #187541 "Betty" with Fast Hitch
'55 Cub #190482 "Ben" with Woods 42 mower
'55 Cub #191739 "Bertha" with Woods 42 mower
'56 Cub #194370 "Boris" with Mott Flail mower
Circle of Safety: Y
Location: NC, Chapel Hill

Re: Broken Spring! Need help please

Postby Dale Finch » Mon Apr 20, 2015 9:23 pm

Ooooooo....good point! And since I know absolutely nothing about those, I will leave this to more knowledgeable folks!! :lol:
Dale Finch
Circle of Safety

User avatar
tmays
10+ Years
10+ Years
Posts: 3402
Joined: Wed May 11, 2011 8:59 pm
Zip Code: 39154
Tractors Owned: 1969 Farmall Cub
1952 Cub
1942 Farmall H
Location: Raymond, MS

Re: Broken Spring! Need help please

Postby tmays » Tue Apr 21, 2015 4:27 am

Press the clutch and brake pedals to find out if it's one of those. I think it's clutch spring. Just had this happen on my 154. Don't know if it's the same on a 184
Thomas

User avatar
John *.?-!.* cub owner
Cub Pro
Cub Pro
Posts: 23701
Joined: Sun Feb 02, 2003 2:09 pm
Zip Code: 63664
Tractors Owned: 47, 48, 49 cub plus Wagner loader & other attachments. 41 Farmall H.
Location: Mo, Potosi

Re: Broken Spring! Need help please

Postby John *.?-!.* cub owner » Tue Apr 21, 2015 8:28 am

Aren't the governor and pedal springs the same for either one though?
If you are not part of the solution,
you are part of the problem!!!

outdoors4evr
10+ Years
10+ Years
Posts: 2783
Joined: Tue Jul 22, 2008 12:44 pm
Zip Code: 48370
Tractors Owned: 184
Location: Oxford, MI

Re: Broken Spring! Need help please

Postby outdoors4evr » Tue Apr 21, 2015 11:11 am

Brake return springs for a numbered series look identical to the picture you posted.
http://hamiltonbobs.com/cart/image/cach ... 00x500.jpg

184 w/ Creeper & 3-Point
IH 3160a Mower
IH Model 15 Tiller
IH-54 Blade

justice0840
5+ Years
5+ Years
Posts: 2
Joined: Sun Apr 19, 2015 12:38 pm
Zip Code: 43004

Re: Broken Spring! Need help please

Postby justice0840 » Thu May 07, 2015 3:53 am

Thanks for all the help! It is the clutch return spring and it is all fixed!! Sorry I was so slow to respond! You guys are all great!!
