Onan Generator Help

Postby tmays » Sun Dec 13, 2015 1:50 pm

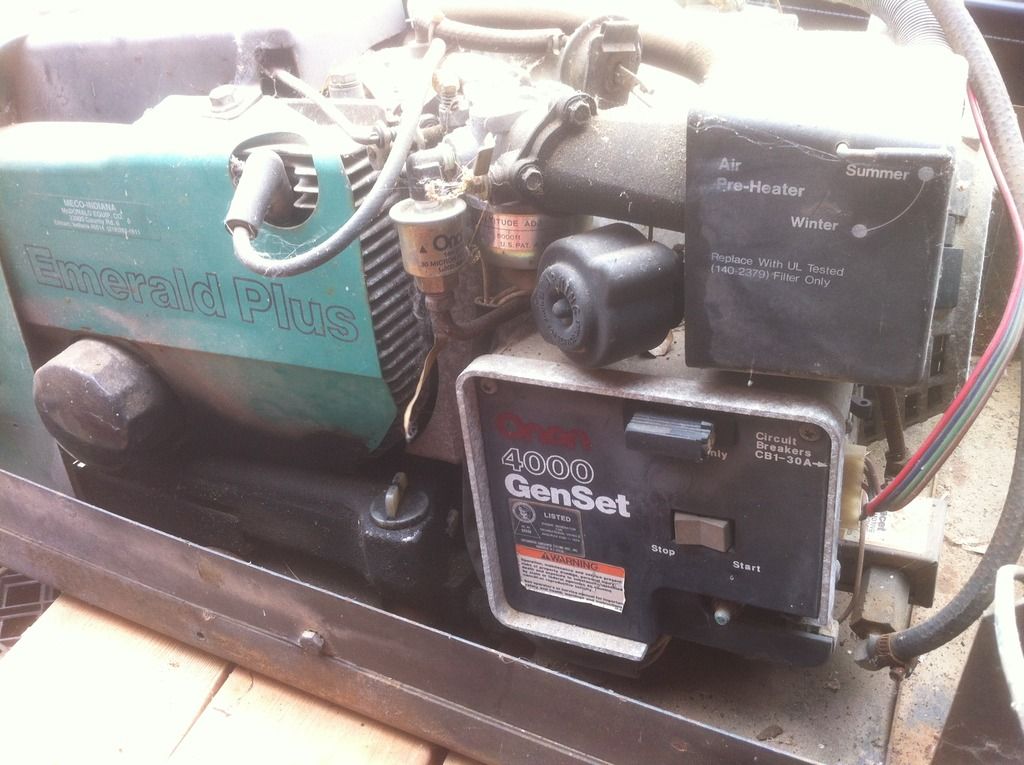

Got this generator off a RV. Put a temp gas tank on and fired it up. Will only run for a few seconds then shuts down

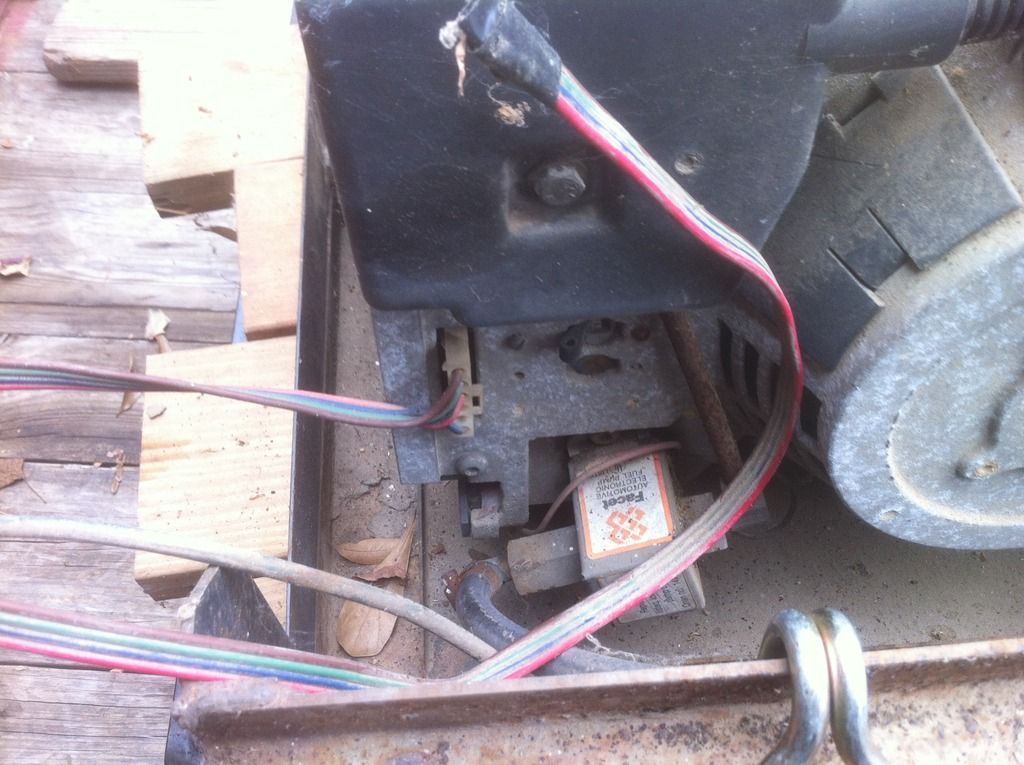

Before I go chasing phantoms with the engine, was curious to know if it's designed to shut down under certain conditions, such as the four wire strand that's been cut from breaker box(?) maybe? I am no electrician.
Thomas

Eugene
Team Cub Mentor
Team Cub Mentor
Posts: 17089
Joined: Fri Jul 02, 2004 9:52 pm
Zip Code: 65051
Circle of Safety: Y
Location: Mo. Linn

Re: Onan Generator Help

Postby Eugene » Sun Dec 13, 2015 3:25 pm

Wiring diagrams are on the internet.

I would start looking for the problem at the solenoid for the ignition/fuel.

Since the engine runs for a few seconds, thinking ignition related problem. Normally if it were a fuel flow problem the engine would take longer than a few seconds to die.
I have an excuse. CRS.

User avatar
John *.?-!.* cub owner
Team Cub Guide
Team Cub Guide
Posts: 22909
Joined: Sun Feb 02, 2003 2:09 pm
Zip Code: 63664
Tractors Owned: 47, 48, 49 cub plus Wagner loader & other attachments. 41 Farmall H.
Location: Mo, Potosi

Re: Onan Generator Help

Postby John *.?-!.* cub owner » Sun Dec 13, 2015 5:37 pm

Do not overlook a malfunctioning low oil shut down.
If you are not part of the solution,
you are part of the problem!!!

User avatar
randallc
5+ Years
5+ Years
Posts: 1752
Joined: Tue Jan 18, 2011 9:16 am
Zip Code: 72940
Tractors Owned: 1951 Farmall Cub, 152 disk plow, 2 gang disk, belly mower, sickle mower
1949 Farmall Cub, cultivator, moldboard plow, disk,front blade. Cub Cadet, LTX1045 Mower. Cub Cadet's 109, 125, 1000, and 1250
1961 cub c2 belly mower and full blade. 48 cub manual lift with cultivators.
Circle of Safety: Y
Location: Witcherville, AR

Re: Onan Generator Help

Postby randallc » Mon Dec 14, 2015 6:36 am

John I think you nailed it. If it runs real good for about 5 to 10 seconds then shuts down it probably needs a new low oil shut down sensor, if it has plenty of oil in it. Or if one of the wires cut controls the sensor.
Guinea, 1951 Farmall Cub; Jumping Willy, 1949 Farmall Cub, 61 Cub, Scrapy, and 48 Cub Al, 48 cub, Billy D.

outdoors4evr
10+ Years
10+ Years
Posts: 1514
Joined: Tue Jul 22, 2008 12:44 pm
Zip Code: 48370
Tractors Owned: 184
Location: Oxford, MI

Re: Onan Generator Help

Postby outdoors4evr » Mon Dec 14, 2015 9:45 am

Sometimes you can tip the generator toward the oil level sensor (get the sensor's feet wet) and then tip it back to level ground and have it start. Those oil sensors are picky. Also, you might want to look at the air cleaner / filter assembly. Make sure that it isn't clogged up and that the choke is opening. These usually have an automatic choke that opens (maybe too soon).
184 w/ Creeper & 3-Point
IH 3160a Mower
IH Model 15 Tiller
IH-54 Blade

User avatar
John *.?-!.* cub owner
Team Cub Guide
Team Cub Guide
Posts: 22909
Joined: Sun Feb 02, 2003 2:09 pm
Zip Code: 63664
Tractors Owned: 47, 48, 49 cub plus Wagner loader & other attachments. 41 Farmall H.
Location: Mo, Potosi

Re: Onan Generator Help

Postby John *.?-!.* cub owner » Mon Dec 14, 2015 10:32 am

If it has a lw oil sensor and you can locate it you can normally disconnect the wire to see if that is the fault. That works if the sensor is a level sensor in the sump, but if it is a pressure sensor, then shorting it will normally bypass it. Do not be surprised if there are no parts available, Onan is getting pretty bad about not supporting their older stuff.
If you are not part of the solution,
you are part of the problem!!!

Bill
10+ Years
10+ Years
Posts: 245
Joined: Mon Feb 03, 2003 8:28 pm
Zip Code: 43420
Location: FREMONT OHIO

Re: Onan Generator Help

Postby Bill » Mon Dec 14, 2015 8:18 pm

Try this http://onanparts.com/index.php?main_pag ... 90a9f0938e, . I have used this site for Onan 18 HP lawn tractors.
Bill

SONNY
10+ Years
10+ Years
Posts: 3068
Joined: Thu Nov 09, 2006 11:26 pm
Zip Code: 61722

Re: Onan Generator Help

Postby SONNY » Thu Dec 17, 2015 10:21 pm

I have an ONAN out of an rv, too and it has never started for me!---cant find the starter on it!!!---it is a VERY weird generator!!! all kinds of cut wires hanging loose on it!---I think it's a CCK, twin cylinder.---I would like to strip it down to just the engine and re-do wires from there! thanks; sonny

User avatar
Steve Butram
Cub Pro
Cub Pro
Posts: 2106
Joined: Mon Feb 17, 2003 7:53 am
Zip Code: 47906
eBay ID: steveb05
Tractors Owned: 1947 in well used condition
1948 restored
1948
1949 for sale
Nice original 1950 just out of the Demo Range
628 2 wheel Trailer
1950 Demo
Circle of Safety: Y
Location: IN West Lafayette

Re: Onan Generator Help

Postby Steve Butram » Fri Dec 18, 2015 7:24 am

RV Generators were set up to use the Generator section to turn over the engine to start.
Be prepared to be unprepared Seth Goden

SONNY
10+ Years
10+ Years
Posts: 3068
Joined: Thu Nov 09, 2006 11:26 pm
Zip Code: 61722

Re: Onan Generator Help

Postby SONNY » Fri Dec 18, 2015 6:13 pm

Kinda wondered about that!! LOL!!--- I will probably just junk this one or sell it if someone can use it for something!---ONAN engines are too spendy for my pockets! thanks; sonny

User avatar
tmays
5+ Years
5+ Years
Posts: 2573
Joined: Wed May 11, 2011 8:59 pm
Zip Code: 39180
Tractors Owned: 1948 Allis Chalmers G
1947 Cub
1952 Cub

154 Cub LoBoy
Location: Vicksburg, MS

Re: Onan Generator Help

Postby tmays » Mon Dec 21, 2015 8:37 am

Thanks for the help, fellers. I haven't had a chance to dig further, yet.
What little research I've done so far says that it won't run if the generator is not producing electricity? Possibly the slip ring may need cleaned? I have no idea what that is. Haha At any rate, that won't be the first thing I check. I'll check the low oil switch first and go from there.
Again, thanks, and any other ideas are appreciated
Thomas

User avatar
Dusty B
10+ Years
10+ Years
Posts: 1556
Joined: Wed May 23, 2007 7:35 am
Zip Code: 61736
Tractors Owned: '45 SC Case
Circle of Safety: Y
Location: IL, Downs

Re: Onan Generator Help

Postby Dusty B » Mon Jan 04, 2016 12:15 pm

My Model A Ford quits after a few seconds when the condenser dies!!! Took me a few times to figure it out. But that was that simple!!
Grandpa's '41 B
'56,,'57,'59,'71 Cub
'51 Super C
'55 Case SC
Fairbanks-Morse 3KW Generator
Dad's DB garden tractor
'48 DeSoto
'31 "A Coupe
'51 Ford PU
'55 Dodge PU
God looks out for those of us who don't know how to look out for ourselves!

SONNY
10+ Years
10+ Years
Posts: 3068
Joined: Thu Nov 09, 2006 11:26 pm
Zip Code: 61722

Re: Onan Generator Help

Postby SONNY » Thu Jan 07, 2016 7:14 pm

The "slip ring" is the end of the armature that the brushes ride on and need to be real clean!---my welder had to be cleaned before it would make arc!---My welder is basic overgrown ac alternator like your car/truck/tractor has on them! thanks; sonny

User avatar
Larry in IN
10+ Years
10+ Years
Posts: 424
Joined: Mon Feb 03, 2003 12:35 am
Zip Code: 46750
Tractors Owned: '59 cub running
'48 'H' running?
'54 '400' project
'67 806' project
?? '706' project
'70' 826G Hydro 'every day power! 1 of 14
'71' MM G1050 - Big iron
'51' JD 'R' project
'61 JD 3010 project
'48 Allis 'G'
'??' F-12 my son's
Location: INDIANA, NE

Re: Onan Generator Help

Postby Larry in IN » Wed Feb 17, 2016 11:50 am

I'll tack this question on here - not to hijack the subject, but same realm,
I have a little Rounder L600 skid loader with an Onan BF engine - runs fine for a while, then gets real bad - cough misfire, no power, arcing at points, etc.
Install new condenser [ now 'capacitor'] and runs like a champ.

Why do I keep killing condensers?
One of the few advantages of growing older is that I finally realized that I haven't made ALL the stupid mistakes! Yet!

CharlieK
10+ Years
10+ Years
Posts: 382
Joined: Sun Apr 10, 2005 9:25 pm
Zip Code: 40165
Location: bullitt county, kentucky

Re: Onan Generator Help

Postby CharlieK » Tue Feb 23, 2016 7:40 pm

I still run the same condenser in the ONAN 2500 generator that came with it in 1973
