I will be installing an alternatior on this original cub

Postby Boss Hog » Sat Dec 24, 2011 11:38 pm

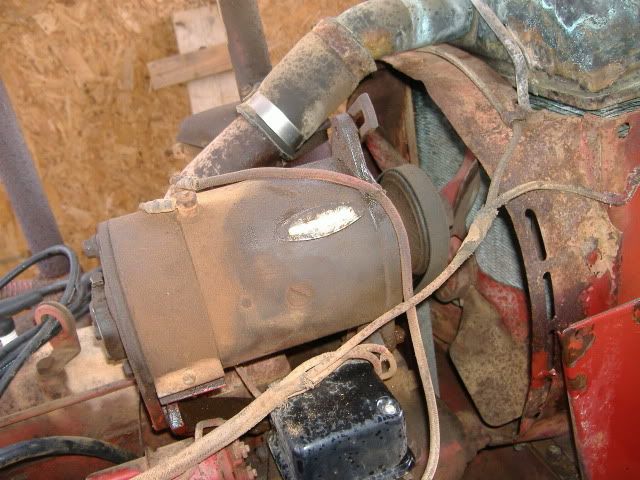

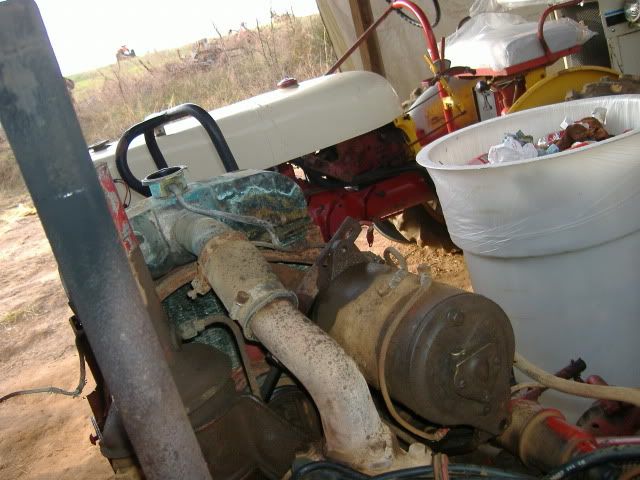

I hope to be able to take pics as I go all of these are the before :D
I will update soon

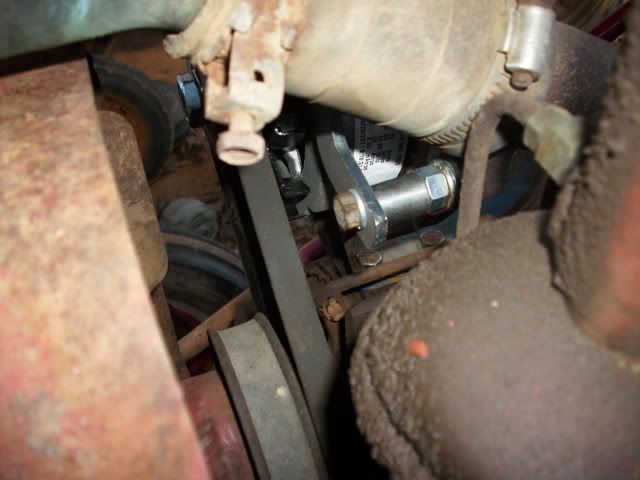

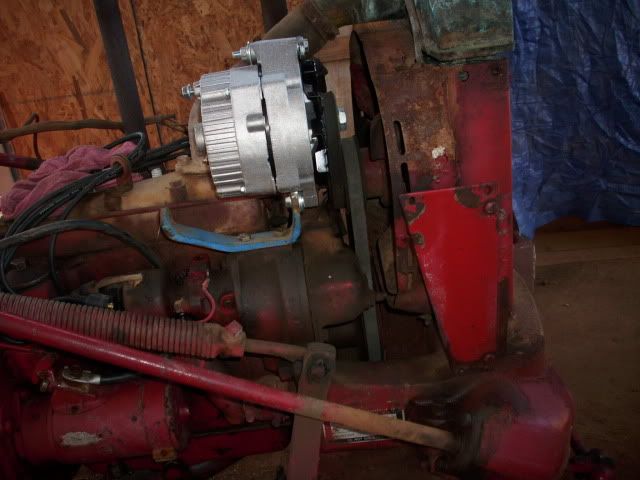

Here I am using the original bracket

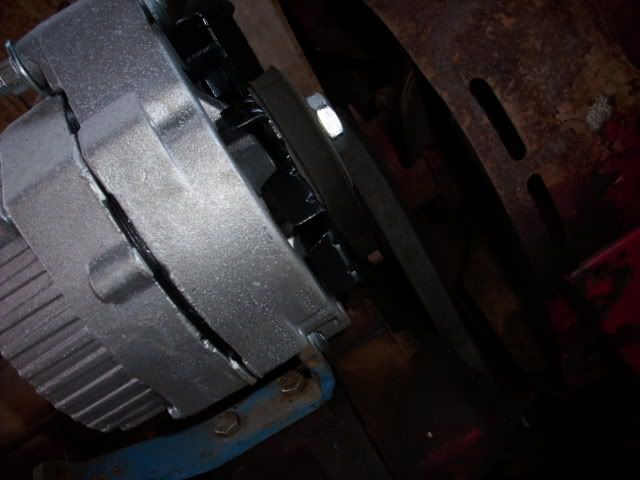

The top bracket is one from Clint

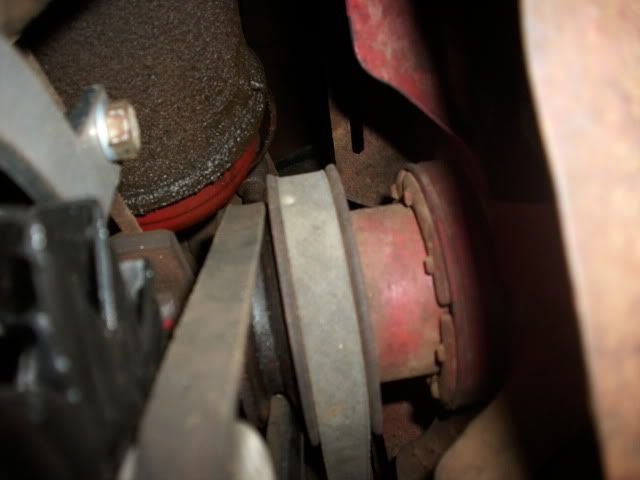

As you can see I am using the old type fan with the small pulley

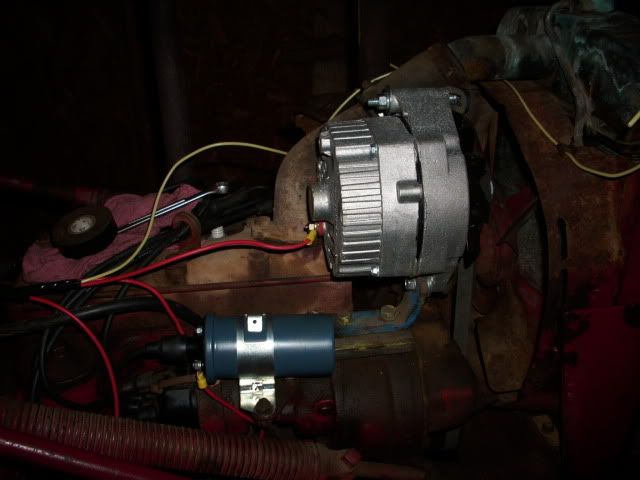

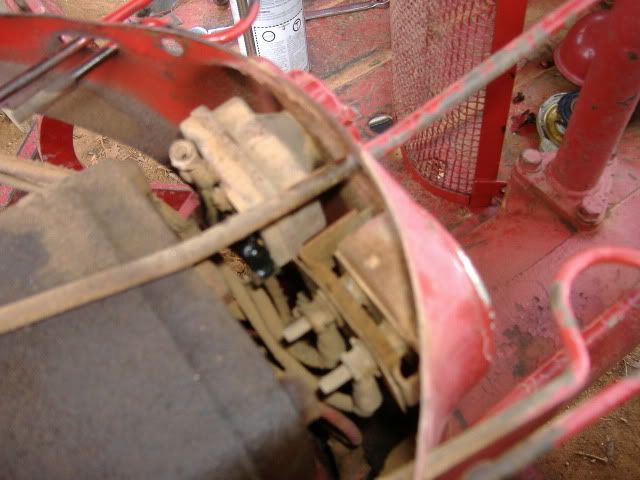

here you can see the coil with the built in resister , be sure to hook the - side of the coil to the distributor.

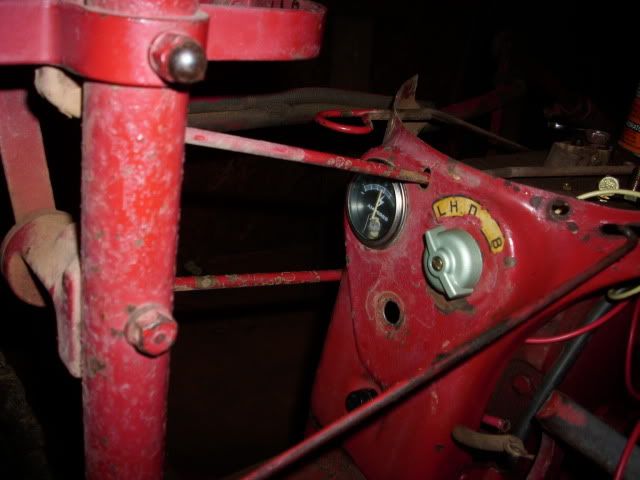

here you can see the new amp gauge and headlight switch

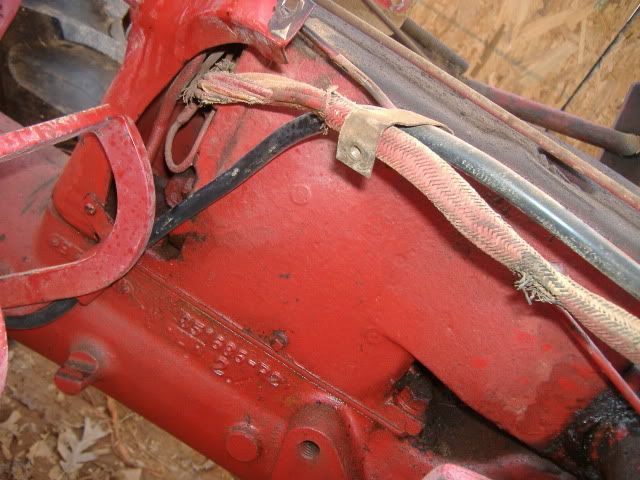

you do not have to change them, but I am doing this for a customer and dont want any problems down the road. I also replaced the old fuse holder as I am re wiring it too.
Boss
