Re: Transmission input seal

Postby Arthur Luke » Wed Nov 28, 2012 4:39 pm

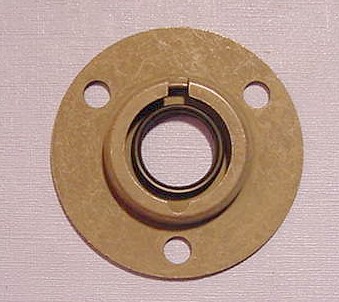

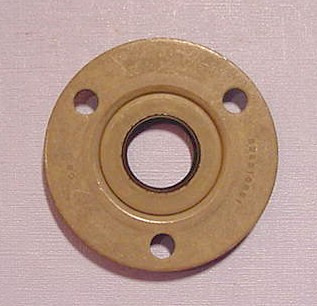

From TM
Have a good day, Art Image
User avatar
Arthur Luke
501 Club
501 Club

Posts: 714
Joined: Fri May 09, 2008 2:47 pm
Location: OK, Copan
Zip Code: 74022
Tractors Owned: 8 F Cubs, 7 Lo-Boys, 2 # LoBoys, 1 CC, 1 H, 1 other
Circle of Safety Award
Circle of Safety: Y

Re: Transmission input seal

Postby Jeff Silvey » Wed Nov 28, 2012 4:51 pm

I did one like Boss Hog said but I never glued my seal in the retainer. It stayed in place. I got my seal from NAPA.
In my line of work
" EVERYBODY GOES HOME THE NEXT MORNING"
User avatar
Jeff Silvey
Team Cub Mentor
Team Cub Mentor

Posts: 3852
Joined: Tue Jun 07, 2005 2:30 pm
Location: IN, McCordsville
Zip Code: 46055
Tractors Owned: -
1950 Demo,1956 w/ FH, 1959 w 59" mower,
Cub L-54 Blade,152 Plow
189 plow, LF 194 Plow, Woods 42" Mower,
Choremaster Garden tractors & Implements
Antique Gas engines
Circle of Safety Award
Circle of Safety: Y

Re: Transmission input seal

Postby Boss Hog » Wed Nov 28, 2012 6:08 pm

Jeff Silvey wrote:I did one like Boss Hog said but I never glued my seal in the retainer. It stayed in place. I got my seal from NAPA.


Sometimes I guess i do a little overkill :D But I do a lot for other people , no comebacks
I also use NAPA seals
Boss
IN GOD WE TRUST
All others pay cash
Boss Hog
Power corrupts; absolute power corrupts absolutely byJohn Emerich Edward Dalberg

8th Va fest link viewtopic.php?f=8&t=81392&p=657790#p657790
User avatar
Boss Hog
Cub Pro
Cub Pro

Posts: 9662
Joined: Mon Oct 24, 2005 8:35 pm
Location: VA. Randolph
Zip Code: 23962
eBay ID: dmb2613
Circle of Safety Award
Circle of Safety: Y

Re: Transmission input seal

Postby Hengy » Wed Nov 28, 2012 9:55 pm

I've done two seals in my cub time, Merlin and Roland. One was tight as tight could be and one was loose. Both had seals from NAPA. Wonder if there were different seal retainers used?
Mike (Happy as a Lark in Allison Park, PA)
Image Image

Check out my Restoration Thread (1955 Cub, Lewis)
User avatar
Hengy
501 Club
501 Club

Posts: 6962
Joined: Sat Feb 18, 2006 8:12 pm
Location: PA, Allison Park (Am Hengelsberg)
Zip Code: 15101
eBay ID: lacrosseorgans
Skype Name: Mike.Hengelsberg
Tractors Owned: 1949 Cub "Merlin"
1955 Cub "Lewis"
Cub Trailer
A-60 Blade
Cub-22 Mower
193 Plow
Circle of Safety Award
Circle of Safety: Y

Re: Transmission input seal

Postby cub47 » Thu Nov 29, 2012 7:48 am

Hengy wrote:I've done two seals in my cub time, Merlin and Roland. One was tight as tight could be and one was loose. Both had seals from NAPA. Wonder if there were different seal retainers used?


The parts book does not distinguish between the seal and retainer, it is all listed as one assembly, and I only see one version, not multiples offered throughout the years.
cub47
501 Club
501 Club

Posts: 2198
Joined: Fri Dec 03, 2004 3:17 pm
Zip Code: 00000
Tractors Owned: Banned for multiple site rule violations.
Circle of Safety Award
Circle of Safety: Y

Re: Transmission input seal

Postby Boss Hog » Thu Nov 29, 2012 8:35 am

The seal is after market
IN GOD WE TRUST
All others pay cash
Boss Hog
Power corrupts; absolute power corrupts absolutely byJohn Emerich Edward Dalberg

8th Va fest link viewtopic.php?f=8&t=81392&p=657790#p657790
User avatar
Boss Hog
Cub Pro
Cub Pro

Posts: 9662
Joined: Mon Oct 24, 2005 8:35 pm
Location: VA. Randolph
Zip Code: 23962
eBay ID: dmb2613
Circle of Safety Award
Circle of Safety: Y

Re: Transmission input seal

Postby RaymondDurban » Thu Nov 29, 2012 8:44 am

cubguy47 wrote:...., and I only see one version, not multiples offered throughout the years.

Brian I have seen two different types of seals and retainers. One like the pic above, and another that had a protrusion on both sides that when first seen will give you the impression that the retainer is installed backwards. The seals that I've seen in this version appear to be leather.
User avatar
RaymondDurban
Team Cub Mentor
Team Cub Mentor

Posts: 4171
Joined: Wed Dec 26, 2007 7:45 pm
Location: CO, Peyton
Zip Code: 80831
Circle of Safety Award
Circle of Safety: Y

Re: Transmission input seal

Postby cub47 » Thu Nov 29, 2012 9:20 am

RaymondDurban wrote:Brian I have seen two different types of seals and retainers. One like the pic above, and another that had a protrusion on both sides that when first seen will give you the impression that the retainer is installed backwards. The seals that I've seen in this version appear to be leather.


Raymond, thanks for the info, it seems like leather seals would have been on earlier tractors and then the manufacturer went to rubber in later years? I'm not sure, I have only come across the one style pictured.
cub47
501 Club
501 Club

Posts: 2198
Joined: Fri Dec 03, 2004 3:17 pm
Zip Code: 00000
Tractors Owned: Banned for multiple site rule violations.
Circle of Safety Award
Circle of Safety: Y

Re: Transmission input seal

Postby Matt Kirsch » Thu Nov 29, 2012 11:24 am

RaymondDurban wrote:Brian I have seen two different types of seals and retainers. One like the pic above, and another that had a protrusion on both sides that when first seen will give you the impression that the retainer is installed backwards. The seals that I've seen in this version appear to be leather.


The seal on mine has the protrusion from both sides. It really-really looks like one piece.

I've got a new seal/retainer coming in the mail, hopefully today.
Matt Kirsch
501 Club
501 Club

Posts: 3191
Joined: Tue Jun 08, 2004 3:04 pm
Location: Rochester, NY
Zip Code: 00000
Circle of Safety Award
Circle of Safety: Y

Re: Transmission input seal

Postby Jim Becker » Thu Nov 29, 2012 1:57 pm

There was at least one part number change on that seal. The early parts catalogs call out 350 865 R91. The latest call out 528 810 R91. Interetingly enough, the early says the 3 retaining cap screws are 3/4 long. The late calls out cap screws that are 11/16 long. The hardware difference is consistent with 2 vs. 1 layer of sheet metal stamping for the retainer.
User avatar
Jim Becker
Team Cub
Team Cub

Posts: 11851
Joined: Sun Feb 02, 2003 3:14 pm
Location: TX/MN
Zip Code: 75048
Circle of Safety Award
Circle of Safety: Y

Re: Transmission input seal

Postby cub47 » Thu Nov 29, 2012 2:05 pm

Jim, why does Rev F not call out two individual part numbers, similar for example like the steering knuckle, I guess it was just an IH thing probably?
cub47
501 Club
501 Club

Posts: 2198
Joined: Fri Dec 03, 2004 3:17 pm
Zip Code: 00000
Tractors Owned: Banned for multiple site rule violations.
Circle of Safety Award
Circle of Safety: Y

Re: Transmission input seal

Postby Jim Becker » Thu Nov 29, 2012 2:39 pm

cubguy47 wrote:Jim, why does Rev F not call out two individual part numbers . . . ?

Because the newer part can be substitutesd for the earlier one. There was no reason to maintain a supply of the earlier part.

Fewer than half of the parts included in TC-37F were in the originl TC-37. Many of them are for equipment that was added, but it still represents a lot of substitutions over the years. There is no point cluttering a current catalog with obsolete parts.
User avatar
Jim Becker
Team Cub
Team Cub

Posts: 11851
Joined: Sun Feb 02, 2003 3:14 pm
Location: TX/MN
Zip Code: 75048
Circle of Safety Award
Circle of Safety: Y

Re: Transmission input seal

Postby wfmdfm » Thu Nov 29, 2012 4:19 pm

Mine has National 350865R91 stamped on the seal. Google comes up blank when I checked.
wfmdfm
Cub Star!!
Cub Star!!

Posts: 398
Joined: Tue Jun 23, 2009 6:59 pm
Location: Middleboro Massachusetts
Zip Code: 02346
Tractors Owned: .
1947 Circle Cub #1110
1947 Circle Cub #1316
1948 Cub #43915
1966 Power King
189 two way Plow
54A Blade
144 Cultivator
26 ft Welcraft
1967 Case 530ck Backhoe

Re: Transmission input seal

Postby Matt Kirsch » Thu Nov 29, 2012 8:40 pm

The new seal was sitting on the porch when I got home.

Got it in, and got the tractor buttoned back up.

Let me run this installation technique by you:

1. I wrapped an old Tractor Supply receipt around the input shaft, then slid the seal on to the paper.
2. I then carefully slid the paper down the shaft with the seal on it.
3. Once I got on to the smooth shaft at the transmission, I peeled the paper out from under the seal and slid it into place.
Matt Kirsch
501 Club
501 Club

Posts: 3191
Joined: Tue Jun 08, 2004 3:04 pm
Location: Rochester, NY
Zip Code: 00000
Circle of Safety Award
Circle of Safety: Y
