IH Carb parts

Postby crhabeck » Tue Jul 20, 2010 12:33 pm

Just got around to opening up my 1947 IH Carb and found that items 14 and 17 (on the exploded diagram) are missing. Probably why it doesn't run well. Also, the one of the supports for the float axle is split. Anyone have spare parts? Any help much appreciated.
crhabeck

Posts: 5
Joined: Tue Jul 20, 2010 12:24 pm
Zip Code: 99218

Re: IH Carb parts

Postby Rudi » Wed Jul 21, 2010 5:40 am

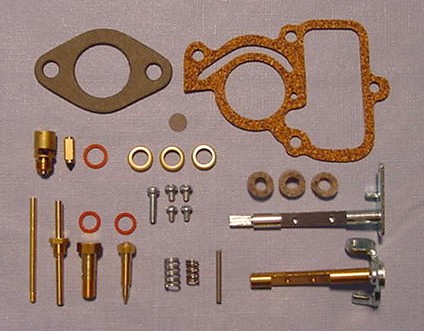

The most complete kit is available at TM Tractor - replacement carburetor overhaul kit aftermarket


The float axle bracket can be fixed with JB Weld. Just use it sparingly so there is not too much goobering.

Also, here is another thing you can do. I have made dust shields from other products that have similar material. Floor savers are similar and if you have a set of hollow punches you can make a set. A little practice gets them close. The drip hole filter can be made from the same material and you can use a thin washer as a keeper.
Confusion breeds Discussion which breeds Knowledge which breeds Confidence which breeds Friendship

User avatar
Rudi
Team Cub
Team Cub

Posts: 28425
Joined: Sun Feb 02, 2003 8:37 pm
Location: NB Dieppe, Canada
Zip Code: E1A7J3
eBay ID: ve9rhs
Skype Name: R.H. "Rudi" Saueracker, SSM
Tractors Owned: 1947 Cub "Granny"
1948 Cub "Ellie-Mae"
1951 Cub "Jethro"
Dad's Putt-Putt
IH 129 CC
Circle of Safety Award
Circle of Safety: Y
Twitter ID: Rudi Saueracker, SSM

Re: IH Carb parts

Postby Don McCombs » Wed Jul 21, 2010 7:38 am

Messick's lists both parts as currently available from CaseIH.

http://www.messicks.com/partsearch.aspx
Don McCombs
MD, Deep Creek Lake

"1950 Something" Farmall Cub
1977 International Cub w/FH
1978 International Cub
1948 Farmall Super A
1951 Farmall Super C w/FH
User avatar
Don McCombs
Team Cub Mentor
Team Cub Mentor

Posts: 10365
Joined: Mon Feb 03, 2003 6:45 am
Location: MD, Deep Creek Lake
Zip Code: 21550
Tractors Owned: "1950 Something" Farmall Cub
1977 International Cub w/FH
1978 International Cub
1948 Farmall Super A
1951 Farmall Super C w/FH
Circle of Safety Award
Circle of Safety: Y

Re: IH Carb parts

Postby crhabeck » Wed Jul 21, 2010 1:23 pm

Thanks for your help. On this diagram the missing parts are 10 and 30. what is the part number for 30?

I will try the JB Weld.
crhabeck

Posts: 5
Joined: Tue Jul 20, 2010 12:24 pm
Zip Code: 99218

Re: IH Carb parts

Postby Barnyard » Wed Jul 21, 2010 4:28 pm

crhabeck wrote:what is the part number for 30?

There are several numbers.

It is common sense to take a method and try it. If it fails, admit it frankly and try another. But above all, try something.
- Franklin D. Roosevelt -

Barnyard Bash CubFest May 30th - May 31st, 2014
Click here for info http://www.barnyardbash.com
http://www.Savethecub.com
User avatar
Barnyard
Team Cub
Team Cub

Posts: 17501
Joined: Tue Aug 07, 2007 3:39 pm
Location: OH, New Haven (Hamilton County)
Zip Code: 45030
Tractors Owned: At This Time
40 Farmall Cubs (Round Hood)
2 Farmall Cub (Square Hood)
2 IH Cubs (Square Hood)
5 Lo-Boys (Round Hood)
2 Lo-Boys (Square Hood)
2 Farmall 404's
1 Farmall H
1 Ferguson 20
1 Cub Cadet 125
1 Kubota B-7100
Circle of Safety Award
Circle of Safety: Y

Re: IH Carb parts

Postby crhabeck » Wed Jul 21, 2010 6:44 pm

Thanks, unfortunately Messick's doesn't have any of them.
crhabeck

Posts: 5
Joined: Tue Jul 20, 2010 12:24 pm
Zip Code: 99218

Re: IH Carb parts

Postby Gary Dotson » Thu Jul 22, 2010 6:23 am

Item #10 is the idle tube, it was probably broken off. It's included in the kit from TM, shown above. The main air bleed is not usually removed during carb service, are you sure it's not in there? Since your tractor is a 47, it would likely be the first one in the parts list.
Gary Dotson
Team Cub Mentor
Team Cub Mentor

Posts: 2515
Joined: Thu Aug 03, 2006 6:20 am
Location: OH West Mansfield
Zip Code: 43358
Tractors Owned: 48 Cub Diesel (Cubota)
53 Cockshutt 20 restored (Shooter)
52 Cockshutt 20 unrestored
47 Leader "B" (Herckie)
49 Leader "D" (Princess)
49 Leader "D" very rough
48 Leader "D" unrestored
Kubota B6200E
Kubota B6200HST
Kubota B8200HST-D
Circle of Safety Award
Circle of Safety: Y

Re: IH Carb parts

Postby crhabeck » Sat Jul 24, 2010 4:56 am

Your right, it is broken off.
crhabeck

Posts: 5
Joined: Tue Jul 20, 2010 12:24 pm
Zip Code: 99218
