Database Update 19 Jan 2015

[Barnyard]

Ok. I saw 2015 so I didn’t know if that was the correct one.

Yes that is the correct one. The title just hasn't changed.

[Nosparkplug]

New to me and first.
Year 1951
Tractor serial- no tag
Engine serial- 128949
Engine casting date- 1-23-W
Engine part no. 251341R2
Head date- 10-25-E
Head part no. 251228R1
Torque tube date- 2-12-W
Transmission date- 2-25-W
Tc date-1-25-W
Tc part no.- 354383R2

[Peter Person]

New to me and first.
Year 1951
Tractor serial- no tag
Engine serial- 128949
Engine casting date- 1-23-W
Engine part no. 251341R2
Head date- 10-25-E
Head part no. 251228R1
Torque tube date- 2-12-W
Transmission date- 2-25-W
Tc date-1-25-W
Tc part no.- 354383R2

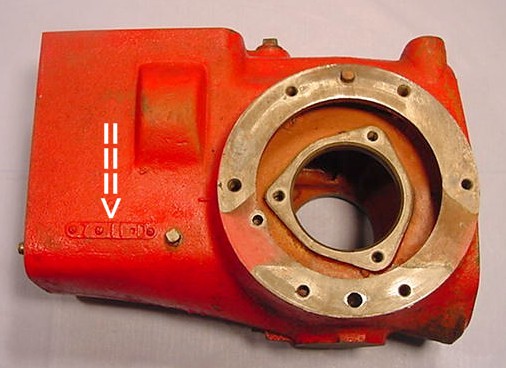

With no Tractor Serial Tag, it could be that casting was replaced at some point. Check the casting date on it.


Looking at the Cub Database, your tractor S/N would fall somewhere in this vicinity - 126XXX

The Head casting date of 10-25-E indicates a 1959, so probably replaced at some point.
From TM Tractor website, they have the casting date locations for all the major castings. http://www.tmtractor.com/id/castdate_loc.htm

[Nosparkplug]

Peter, that what I figure for the serial number range also. It’s too bad that I can’t find a database that links the engine serial number to the tractor serial number then I could stamp a new tag ( noted as a duplicate).

[Peter Person]

Peter, that what I figure for the serial number range also. It’s too bad that I can’t find a database that links the engine serial number to the tractor serial number then I could stamp a new tag ( noted as a duplicate).

That's because the C60 engine was used by IH in other pieces of equipment like balers and power units. They were also sold to Palmer Engine Company to be modified for marine applications.

[I gotta cub]

Here are some numbers from my 48..tag plate 15304
Engine 15683
Engine casting 10-21-Q
Tranny bell housing 1-23-R

[NorthCub48]

Hi everyone,
I would like to add my Cub in your database.
The serial number is 35179.
The tractor is located in Canada (Quebec).

Thank you!
Daniel

[Dennis]

This topic is locked for historical purposes.

Cub owners can use the newly opened topic (Cub Database Update 2019) to add your tractor to the database.

Thanks,
Dennis
