Sediment Bowl Assembly Question

Postby Stanton » Wed Jun 25, 2014 7:23 am

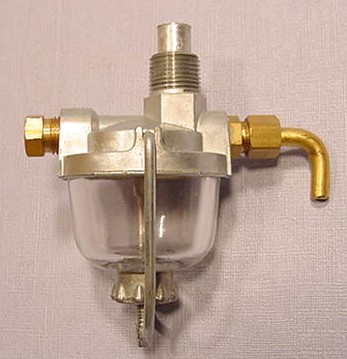

(picture courtesy of TM Tractor)

Am disassembling a fuel strainer and wondered if any of you were able to remove the brass nut off the handle (right side in picture above)? Mine can't make it past the turn in the handle.
Stanton
Image Circle of Safety

User avatar
tmays
5+ Years
5+ Years
501 Club
501 Club
Posts: 2127
Joined: Wed May 11, 2011 8:59 pm
Zip Code: 39180
Tractors Owned: 1948 Allis Chalmers G
1947 Cub
1952 Cub

154 Cub LoBoy
Location: Vicksburg, MS

Re: Sediment Bowl Assembly Question

Postby tmays » Wed Jun 25, 2014 8:02 am

If I remember correctly, you have to unscrew the handle and remove it
Thomas

User avatar
Stanton
Team Cub Mentor
Team Cub Mentor
501 Club
501 Club
Posts: 3849
Joined: Mon Jun 22, 2009 6:56 am
Zip Code: 64070
Tractors Owned: 1945 Farmall H, serial #213,651
1947 Farmall Circle Cub, serial #2116
1948 Farmall Cub, serial #46066
Circle of Safety: Y
Location: Lone Jack, MO

Re: Sediment Bowl Assembly Question

Postby Stanton » Wed Jun 25, 2014 8:10 am

Handle is unscrewed and whole assembly is separated from top of fuel strainer.

I'm working with just the brass at this point. Am trying to separate the outside nut from the handle. Nut is unscrewed off the internal portion and is loose on the handle stem. Is it possible to get the nut past the elbow of the handle w/o bending the handle?
Stanton
Image Circle of Safety

Eugene
Team Cub Mentor
Team Cub Mentor
501 Club
501 Club
Posts: 15050
Joined: Fri Jul 02, 2004 9:52 pm
Zip Code: 65051
Circle of Safety: Y
Location: Mo. Linn

Re: Sediment Bowl Assembly Question

Postby Eugene » Wed Jun 25, 2014 8:36 am

Stanton wrote:Is it possible to get the nut past the elbow of the handle w/o bending the handle?
Probably not. Might try needle nosed vise grips and pliers to straighten the bend a bit.
I have an excuse. CRS.

User avatar
Stanton
Team Cub Mentor
Team Cub Mentor
501 Club
501 Club
Posts: 3849
Joined: Mon Jun 22, 2009 6:56 am
Zip Code: 64070
Tractors Owned: 1945 Farmall H, serial #213,651
1947 Farmall Circle Cub, serial #2116
1948 Farmall Cub, serial #46066
Circle of Safety: Y
Location: Lone Jack, MO

Re: Sediment Bowl Assembly Question

Postby Stanton » Wed Jun 25, 2014 8:46 am

Kinda what I was thinking. The thought crossed my mind that I had an unusual one, but perhaps mine is normal. :)
Stanton
Image Circle of Safety

User avatar
Bill Hudson
Team Cub
Team Cub
501 Club
501 Club
Posts: 7550
Joined: Wed Jul 26, 2006 10:50 am
Zip Code: 44057
Tractors Owned: 57 F-Cub - Dad & Mom's Cub
57 Lo-Boy
52 F-Cub
49 F-Cub
Circle of Safety: Y
Location: OH, Madison

Re: Sediment Bowl Assembly Question

Postby Bill Hudson » Wed Jun 25, 2014 8:56 am

Stanton,

Yours is normal, at least the same as any I've worked on.

Bill
"The probability of life originating from accident is comparable to the probability of the unabridged dictionary resulting from an explosion in a printing shop." Edwin Conklin, biologist

User avatar
Winfield Dave
5+ Years
5+ Years
501 Club
501 Club
Posts: 2898
Joined: Thu Apr 22, 2010 2:31 pm
Zip Code: 17953
Tractors Owned: ......Almost enough
Circle of Safety: Y
Location: PA, Middleport (Schuylkill County)

Re: Sediment Bowl Assembly Question

Postby Winfield Dave » Wed Jun 25, 2014 10:45 am

Stanton...just curious...why do you want to remove the nut?
Dave
"More gold has been mined from the thoughts of men than has been taken from the earth." -- Napoleon Hill

User avatar
gitractorman
10+ Years
10+ Years
501 Club
501 Club
Posts: 2430
Joined: Mon Oct 24, 2005 11:35 am
Zip Code: 14072
eBay ID: toysforjake
Tractors Owned: Lots of Cub Cadets!
1951 Farmall Cub
1977 IH Cub
1966 IH Cub
1965 IH Lo Boy
1949 Farmall Cub
Several IH 154 Lo Boys
1979 IH 184 Lo Boy
Simplicity 4416 Sovereign
Simplicity Conquest
Simplicity Legacy 4x4 Diesel
Circle of Safety: Y
Location: Grand Island, NY

Re: Sediment Bowl Assembly Question

Postby gitractorman » Wed Jun 25, 2014 11:05 am

Yes, as you unscrew the nut, keep unscrewing the valve handle also. Both should back out at the same time.
Cub Cadets 682, 1811, 1864, Simplicity Legacy XL 4x4 Diesel with FEL, 60" mower, 50" Tiller

User avatar
Stanton
Team Cub Mentor
Team Cub Mentor
501 Club
501 Club
Posts: 3849
Joined: Mon Jun 22, 2009 6:56 am
Zip Code: 64070
Tractors Owned: 1945 Farmall H, serial #213,651
1947 Farmall Circle Cub, serial #2116
1948 Farmall Cub, serial #46066
Circle of Safety: Y
Location: Lone Jack, MO

Re: Sediment Bowl Assembly Question

Postby Stanton » Wed Jun 25, 2014 11:49 am

Winfield Dave wrote:Stanton...just curious...why do you want to remove the nut?


I unscrewed the nut and now it won't go back onto the threads. Thought if I could remove it, I'd try to replace it at the hardware store.
Stanton
Image Circle of Safety

User avatar
Denny Clayton
10+ Years
10+ Years
501 Club
501 Club
Posts: 4122
Joined: Wed Feb 05, 2003 1:18 pm
Zip Code: 45365
Tractors Owned: Home to "Rusty", the 2007 and 2009 Cub Tug Champion.
Circle of Safety: Y
Location: OH, Sidney

Re: Sediment Bowl Assembly Question

Postby Denny Clayton » Wed Jun 25, 2014 11:52 am

Stanton, I just checked one of mine not being used currently. In the manufacturing and assembly process apparently the nut is put over the handle before it is bent.
'61 Lo-Boy
'60 FH Lo-Boy
'60 Lo-Boy
'57 FH Cub "Rusty"
'48 Cub
C-3 mower, FH Woods 42F, 54A blade, L-54 blade, 194 plow, FH L-38 disk, FH LB disk, 144 cultivators, FH platform carrier

staninlowerAL
5+ Years
5+ Years
501 Club
501 Club
Posts: 1880
Joined: Fri Oct 29, 2010 11:34 pm
Zip Code: 36558
Tractors Owned: Cubs: (3)'49's, (1)'52, (1)'57 IH Cub LoBoy w/FH, (1)'72 154 Number Series Loboy, '76 Longstripe, Mowers: C-22, Bush Hog 412, Pennington 59, Woods RM42CF, Woods 42, assorted FCub plows, planters, discs, etc. OTHERS: '49 AC B & Ind. Sickle mower, '61 AC D12 Ser 2, '52 8N, '56 Ferguson 35 Deluxe, '53 MM BG (offset), (2) '49 Avery V's, '56 JD 420C, with Blade and fire plow, '85 JD 850 (Yanmar) w/72" belly mower, '76 Yanmar 1500, Sears Surburban's, MTD's, Jeeps & other misc. "treasures"
Location: AL (Southwest)

Re: Sediment Bowl Assembly Question

Postby staninlowerAL » Wed Jun 25, 2014 7:35 pm

I believe the handle has to start into the body first before the brass nut will have enough clearance to start. If the threads need straightening, a three corner saw file works well or maybe an ignition points file might work.

User avatar
Stanton
Team Cub Mentor
Team Cub Mentor
501 Club
501 Club
Posts: 3849
Joined: Mon Jun 22, 2009 6:56 am
Zip Code: 64070
Tractors Owned: 1945 Farmall H, serial #213,651
1947 Farmall Circle Cub, serial #2116
1948 Farmall Cub, serial #46066
Circle of Safety: Y
Location: Lone Jack, MO

Re: Sediment Bowl Assembly Question

Postby Stanton » Fri Jun 27, 2014 7:09 am

Ha! Broke the brass (suedo brass) handle last night, so in the market for a replacement fuel strainer assembly. You all have any experience with the lesser priced ones on ebay? Waste of money?

See new post here: viewtopic.php?f=1&t=84411

Let me know. Thanks.
Stanton
Image Circle of Safety

User avatar
Don McCombs
Team Cub Mentor
Team Cub Mentor
501 Club
501 Club
Posts: 12103
Joined: Mon Feb 03, 2003 6:45 am
Zip Code: 21550
Tractors Owned: "1950 Something" Farmall Cub
1957 Farmall Cub w/FH
1977 International Cub w/FH
1978 International Cub
1948 Farmall Super A
1951 Farmall Super C w/FH
Circle of Safety: Y
Location: MD, Deep Creek Lake

Re: Sediment Bowl Assembly Question

Postby Don McCombs » Fri Jun 27, 2014 6:30 pm

Don McCombs
MD, Deep Creek Lake

Proud Member of Maryland Chapter 39

Bob McCarty
Team Cub Mentor
Team Cub Mentor
501 Club
501 Club
Posts: 7589
Joined: Tue May 25, 2004 8:02 pm
Zip Code: 80501
Tractors Owned: Cubs, MH Pony, Shaw, Allis G, 1934 Silver King, JD LA and LI, Gibson D, David Bradley Tri-Trac
Circle of Safety: Y
Location: CO, Longmont

Re: Sediment Bowl Assembly Question

Postby Bob McCarty » Fri Jun 27, 2014 6:43 pm

Stanton, How about drilling and tapping the end of the brass and installing your own t handle? I'm guessing it's broken too short, or you'd already be posting pictures of the fix. :D

Bob
"We don't need to think more,
we need to think differently."
-Albert Einstein

danovercash
10+ Years
10+ Years
501 Club
501 Club
Posts: 3361
Joined: Mon Feb 17, 2003 8:48 pm
Zip Code: 28081
Circle of Safety: Y
Location: NC, Kannapolis

Re: Sediment Bowl Assembly Question

Postby danovercash » Sat Jun 28, 2014 5:43 pm

Had mine out a few weeks ago because of fuel leak when closed. Appeared to be made to seat both full open and full closed. Nut couldn't be removed without damage, and shaft looked too big to try to try to force new o-ring over. Anyways put back together and no longer leaking when closed. Made sure packing nut was snug as possible.
"I'd rather be a mechanic in the shop"- Henry Ford

252646 & 221525. 195897 (Gone, but not forgotten)
